CD-C472/C3400/C3400C/C3800/C3800C
– 12 –

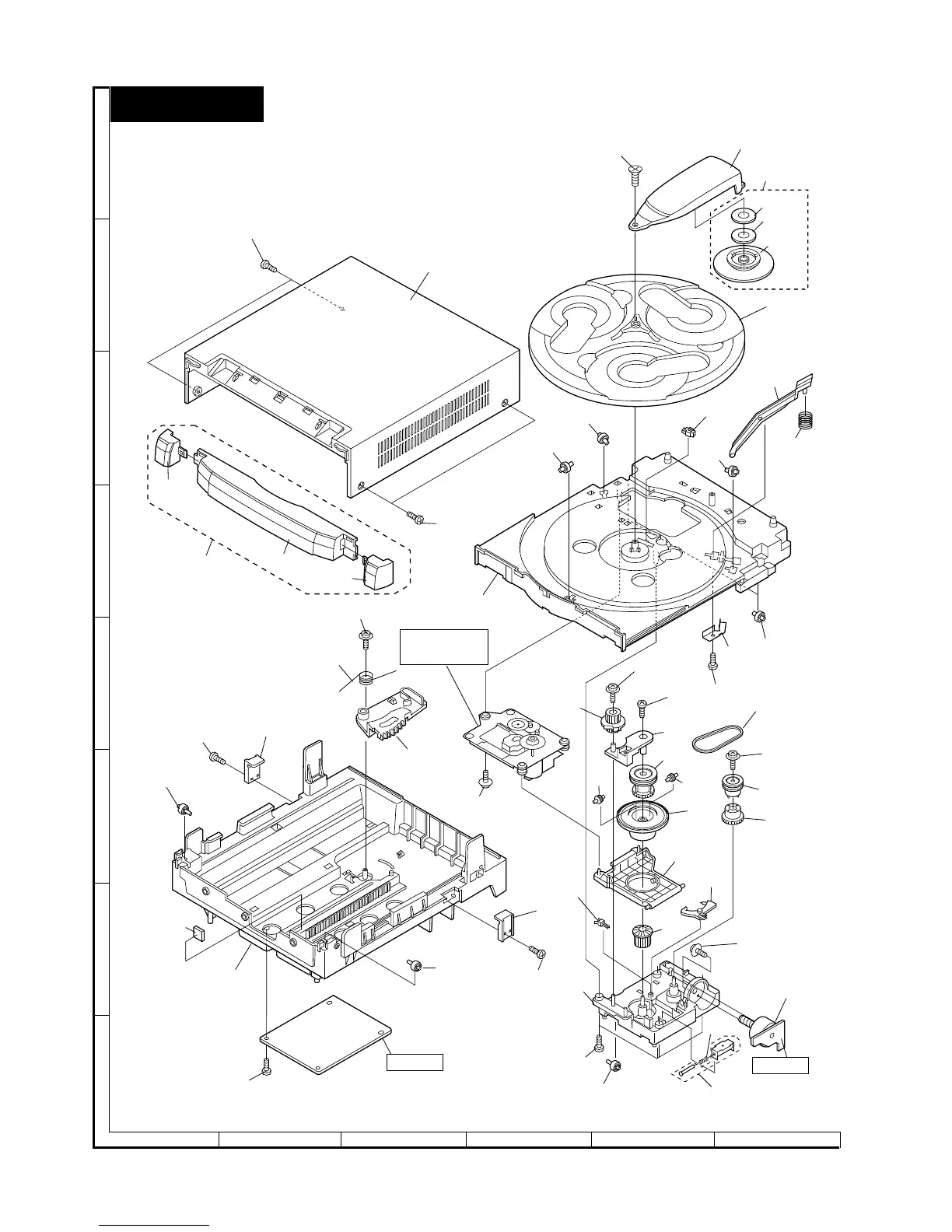

Figure 11 CABINET EXPLODED VIEW (2/2)
A
B
C
D
E
F
G
H
1
23
456
– 11 –
CD-C472/C3400/
C3400C/C3800/C3800C
PWB-F
CD
MECHANISM
PWB-C
611
236
213
223
217
210
238
236
611
213
612x4
236
222
211
SOLM2
M3
609x2
SW2
218
232
216
228
230
231
231
214
610
607
229
226
607
235
234
236x2
236
616
207
236
236
SW3
201
603
620
212
257-1
257-2
257-3
257
237
614x2
614x2
202
251
251-2
251-1
251-3
611
601
221
219
55
57
Table of Contents
Table of Contents
1
IMPORTANT SERVICE NOTES (for U.s.a.only)
2
Specifications
3
Names of Parts
4
Operation Manual
6
Quick Guide
7
Disassembly
8
Removing and Reinstalling the Main Parts
11
Adjustment
12
Test Mode
13
Notes on Schematic Diagram
15
Waveforms of CD Circuit
16
Block Diagram
17
Dolby Pro Logic
18
Schematic Diagram / Wiring Side of P.w.board
20
Troubleshooting (CD Changer Control / CD Section)
34
Function Table of IC
38
Fl Display
44
Parts Guide
45
PACKING of the SET (for U.S.A. Only)
61
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Sharp CD-C3400 and is the answer not in the manual?
