Sharp CD-C3400 User Manual

– 9 –
CD-C472/C3400/C3400C/C3800/C3800C

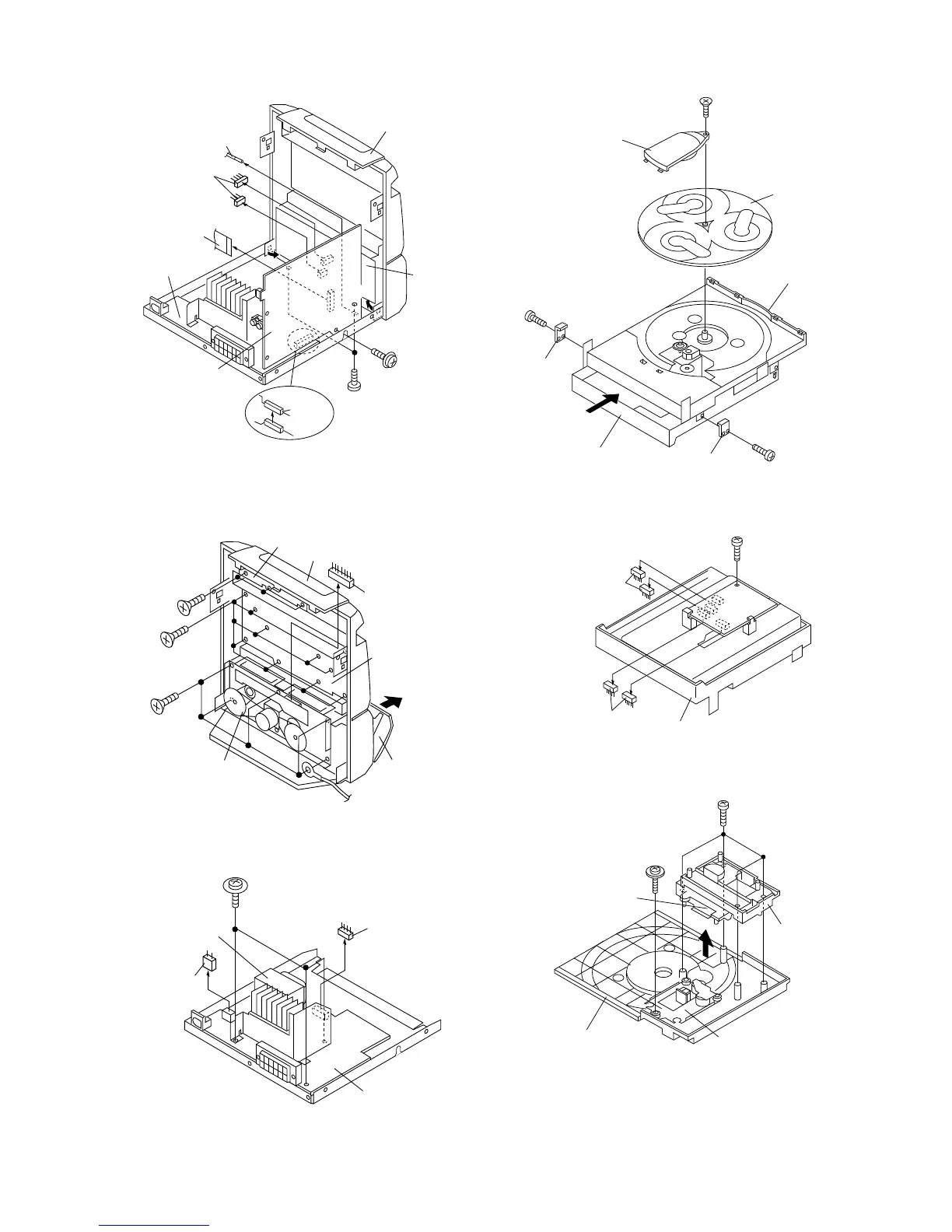

Figure 9-1
Figure 9-2
Figure 9-3
Care when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
Figure 9-4
Figure 9-5
Figure 9-6
Display 
PWB
Switch PWB
Open
Front Panel
( G2 ) x3
ø3 x10mm
( G2 ) x10
ø3 x10mm
( H1 ) x5
ø3 x10mm
( G1 ) x1
Tape
Mechanism
Cassette
Holder
(Left/Right)
( E2 ) x2

( E3 ) x1

(E5) x1

( E4 ) x1

( E1 ) x1
ø3 x10mm
( F1 ) x2
ø3 x8mm
Main PWB
Push
Push
Front Panel
Tape
Mechanism
Power Amp. 
PWB
( J1 ) x3
ø3 x12mm
( J2 ) x1
( J2 ) x1
Power Amp. 
PWB
Power 
Transfomer
( L1 ) x1
ø3 x10mm
( L1 ) x1
ø3 x10mm
( K1 ) x1
ø3 x10mm
Turntable
Disc Tray
( K2 ) x1
( L2 ) x1
( L2 ) x1
CD Player Unit
( M1 ) x1
ø3 x10mm
( M2 ) x2
( M2 ) x2
CD Player Unit
( N1 ) x4
ø3 x12mm
( P1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
