CD-C401E,CP-C401E
MARK: SPARE PARTS-DELIVERY SECTION
CP-C401ECP-C402
PART NO. PART NO.
DESCRIPTIONREF.
NO.
CODE
SPEAKER BOX PARTS
701 92L121-0099 J 92L121-0148 J Net Frame Ass'y AS
702 92L051-0034 J 92L051-0061 J Speaker Box Ass'y AW
703 92L316-0026 J 92L316-0063 J Duct Panel AF
706 92L351-0170 J 92L351-0308 J Label, Specifications AD
DIFFERENCE BETWEEN CP-C402 AND CP-C401E

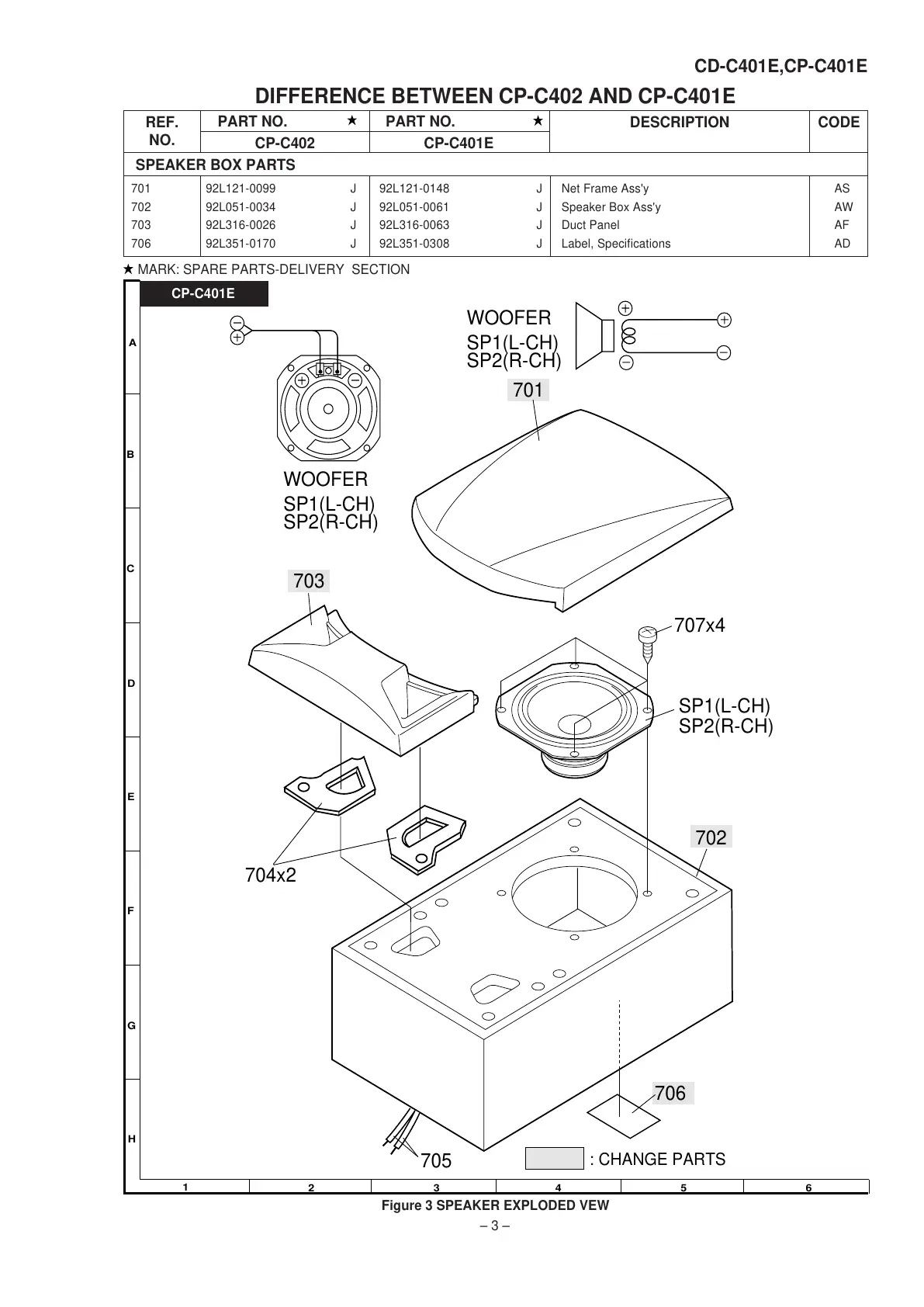

Figure 3 SPEAKER EXPLODED VEW
A
B
C
D
E
F
G
H
1
23456
CP-C401E
– 3 –
WOOFER
SP1(L-CH)
SP2(R-CH)
WOOFER
701
SP1(L-CH)
SP2(R-CH)
707x4
SP1(L-CH)
SP2(R-CH)
703
702
706
705
704x2
: CHANGE PARTS
