CD-C471H
– 10 –

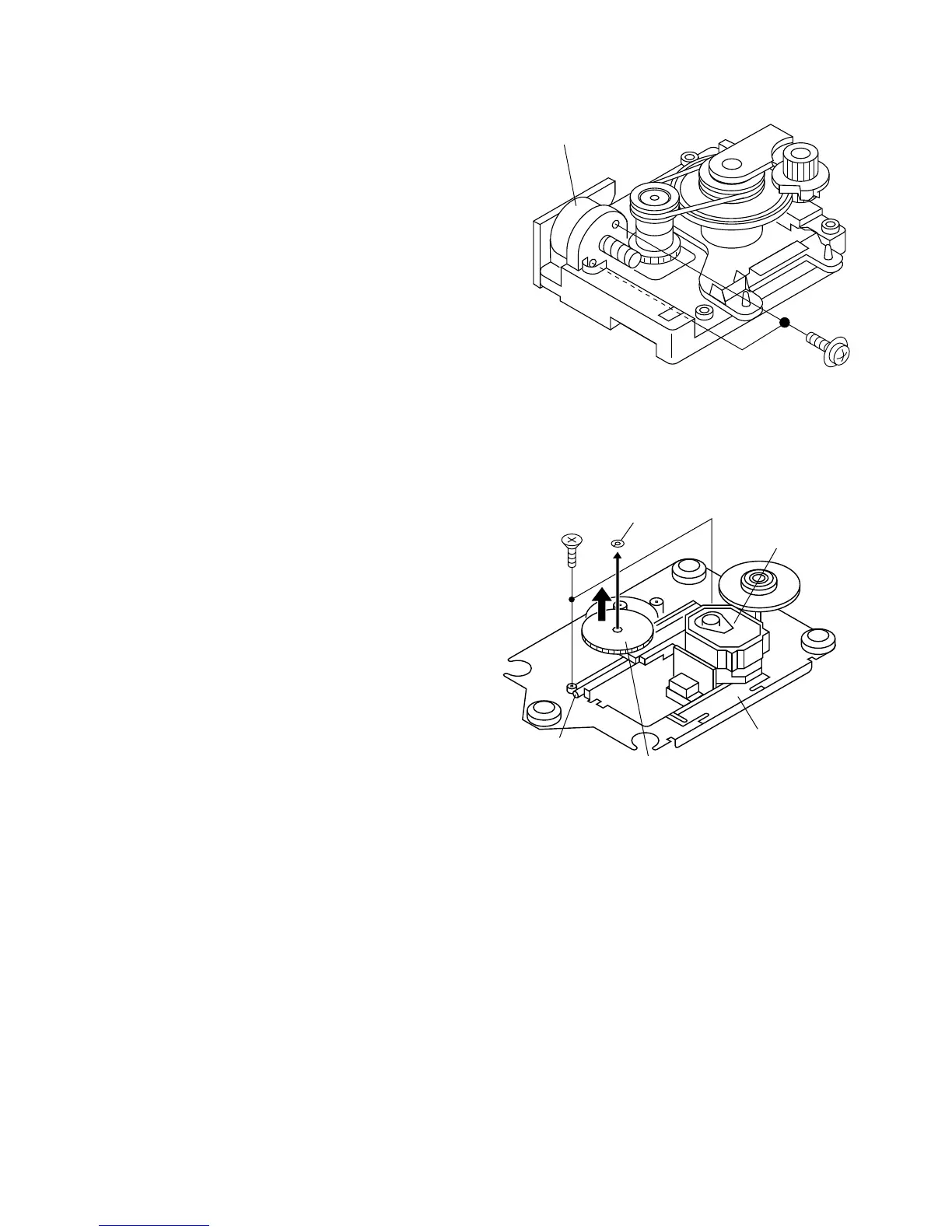

Figure 10-2
How to remove the pickup (See Fig. 10-2)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2)
x 1 pcs.
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4)x 1 pcs.
3. Remove the pickup.
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 14 and 15 of the disassembly method
to remove the CD mechanism.
How to remove the turntable up/down motor
(See Fig. 10-1)
1. Remove the screws (A1) x 2 pcs., to remove the turntable
up/down motor.
Figure 10-1
( B1 ) x2
ø 2.6 x6mm
Shaft
( B2 ) x1
Stop Washer
( B3 ) x1
Gear
( B4 ) x1
CD Mechanism
Pickup
( A1 ) x2
ø2 x5mm
Turntable Up/Down Motor
To Next Page
