– 9 –
CD-C471H
CP-C471H
1 Front Speaker 1. Net.......................... (A1) x1 9-1
2. Fromt Panel ........... (A2) x1
3. Screw ..................... (A3) x2 9-2
4. Screw ..................... (A4) x4
5. Screw ..................... (A5) x2

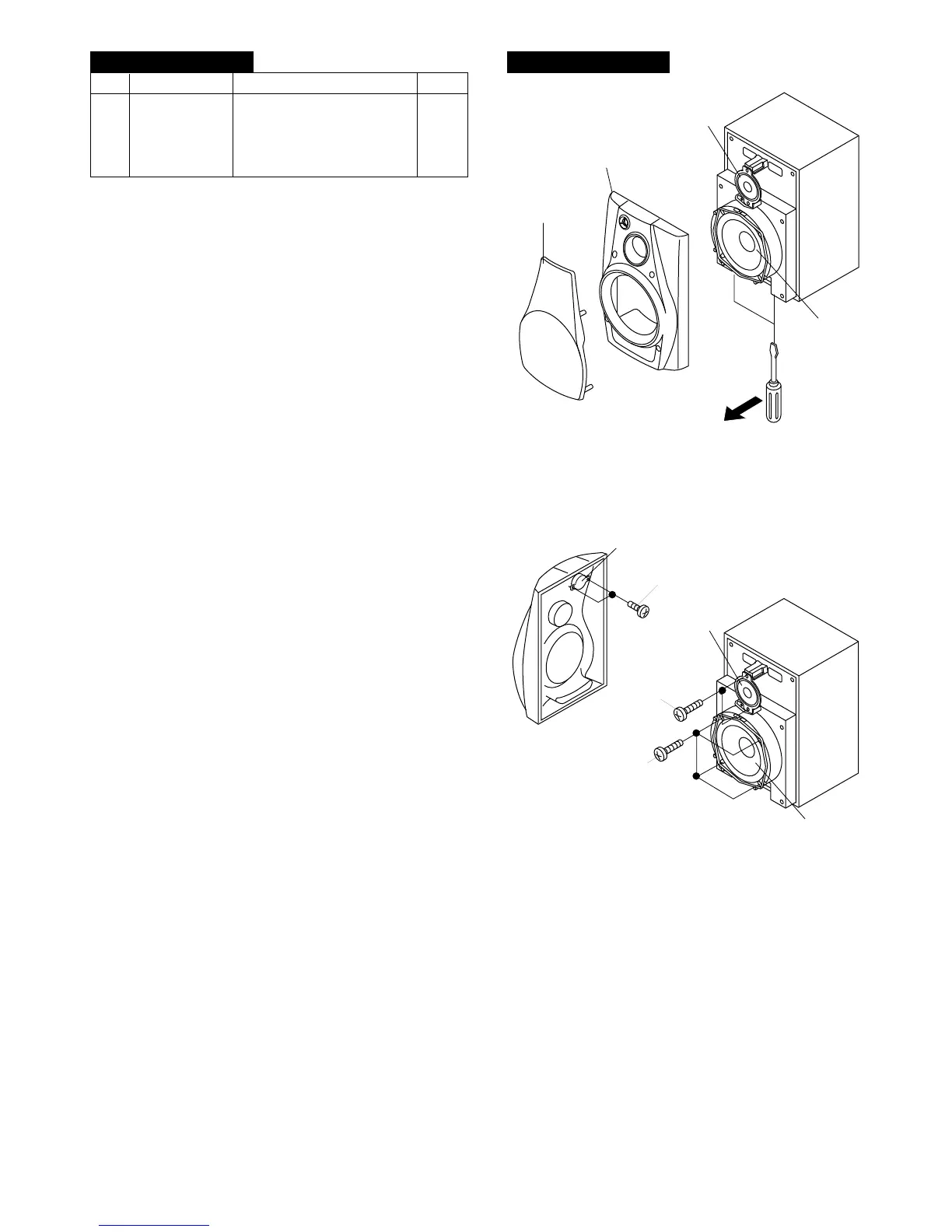

STEP REMOVAL PROCEDURE FIGURE
CP-C471H
Figure 9-2
Note:
The center and SURROUND speakers can be easily disas-
sembled. Therefore the disassembling method is not discribed.
For details refer to the disassembling drawing in the Parts
Guide.
Figure 9-1
Screwdriver
Net
( A1 ) x1
Front Panel
( A2 ) x1
Woofer
Tweeter
( A3 ) x2
ø3 x10mm
( A5 ) x2
ø3 x10mm
( A4 ) x4
ø4 x14mm
Woofer
Tweeter
Super
Tweeter
To Next Page
