CD-C472/C3400/C3400C/C3800/C3800C
– 10 –
CP-C472

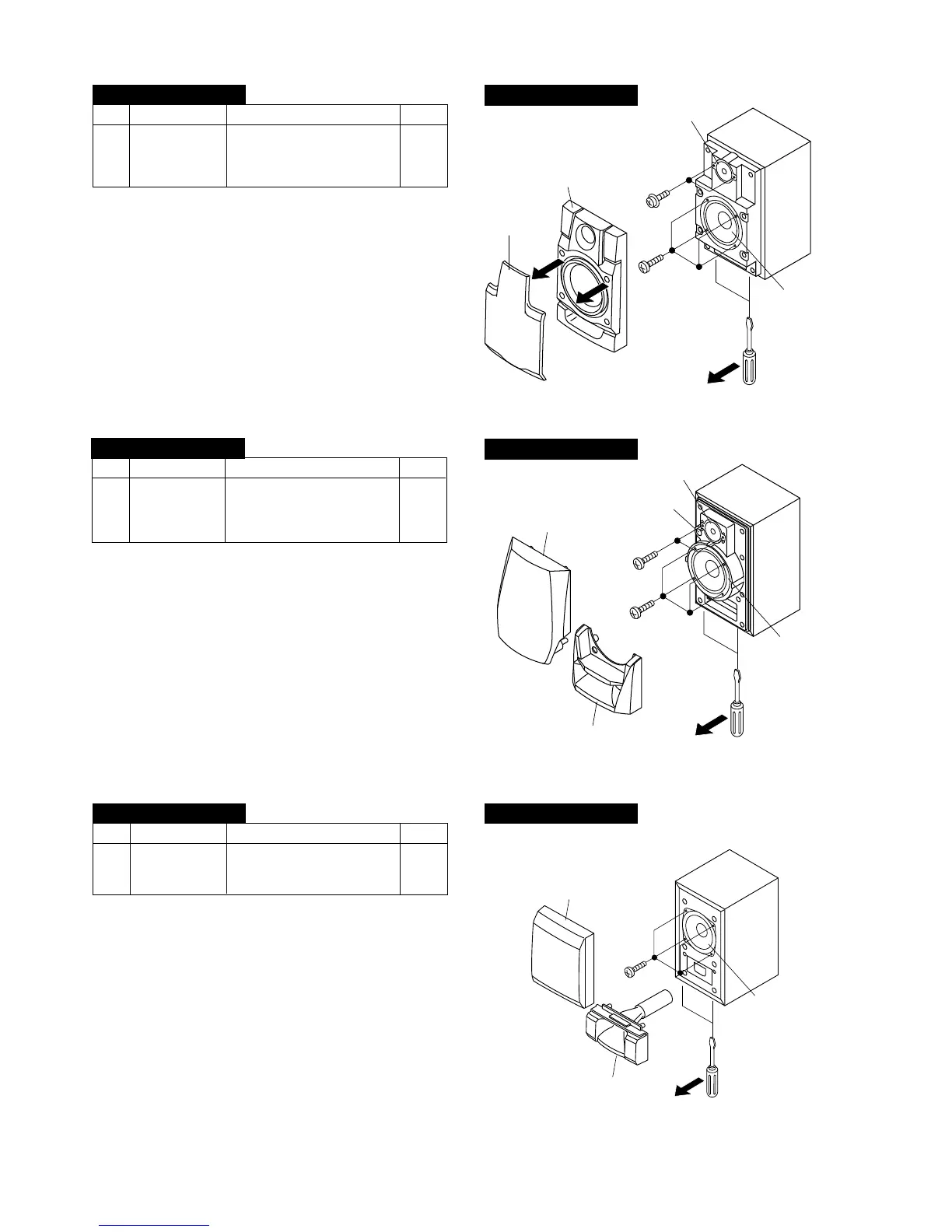

1 Front Speaker 1. Net.......................... (A1) x1 10-1
2. Front Panel ............ (A2) x1
3. Screw ..................... (A3) x2
4. Screw ..................... (A4) x4
STEP REMOVAL PROCEDURE FIGURE
CP-C472
( A3 ) x2
ø3 x10mm
( A4 ) x4
ø3 x12mm
Screwdriver
Net
( A1 ) x1
Front Panel
( A2 ) x1
Woofer
Tweeter
Figure 10-1
Screwdriver
Woofer
Tweeter
Super
Tweeter
( A4 ) x4
ø4 x12mm
( A3 ) x2
ø3 x10 mm

( A1 ) x1
( A2 ) x1
Figure 10-2
CP-C3400/C3800
CP-SW472/SW3800
( A3 ) x4
ø3 x12mm
Net 
( A1 ) x1
( A2 ) x1
Screwdriver
Woofer
Figure 10-3
CP-C3400/C3800
1 Front Speaker 1. Net.......................... (A1) x1 10-2
2. Duct Panel ............. (A2) x1
3. Screw ..................... (A3) x2
4. Screw ..................... (A4) x4
STEP REMOVAL PROCEDURE FIGURE
CP-SW472/SW3800
1 Sub woofer 1. Net.......................... (A1) x1 10-3
2. Duct Panel ............. (A2) x1
3. Screw ..................... (A3) x4
STEP
REMOVAL PROCEDURE FIGURE
Note:
The center and rear speakers can be easily disassembled.
Therefore the disassembling method is not discribed.
For details refer to the disassembling drawing in the Parts
Guide.
