CD-C472/C3400/C3400C/C3800/C3800C
– 14 –
– 13 –
CP-C3400/3800

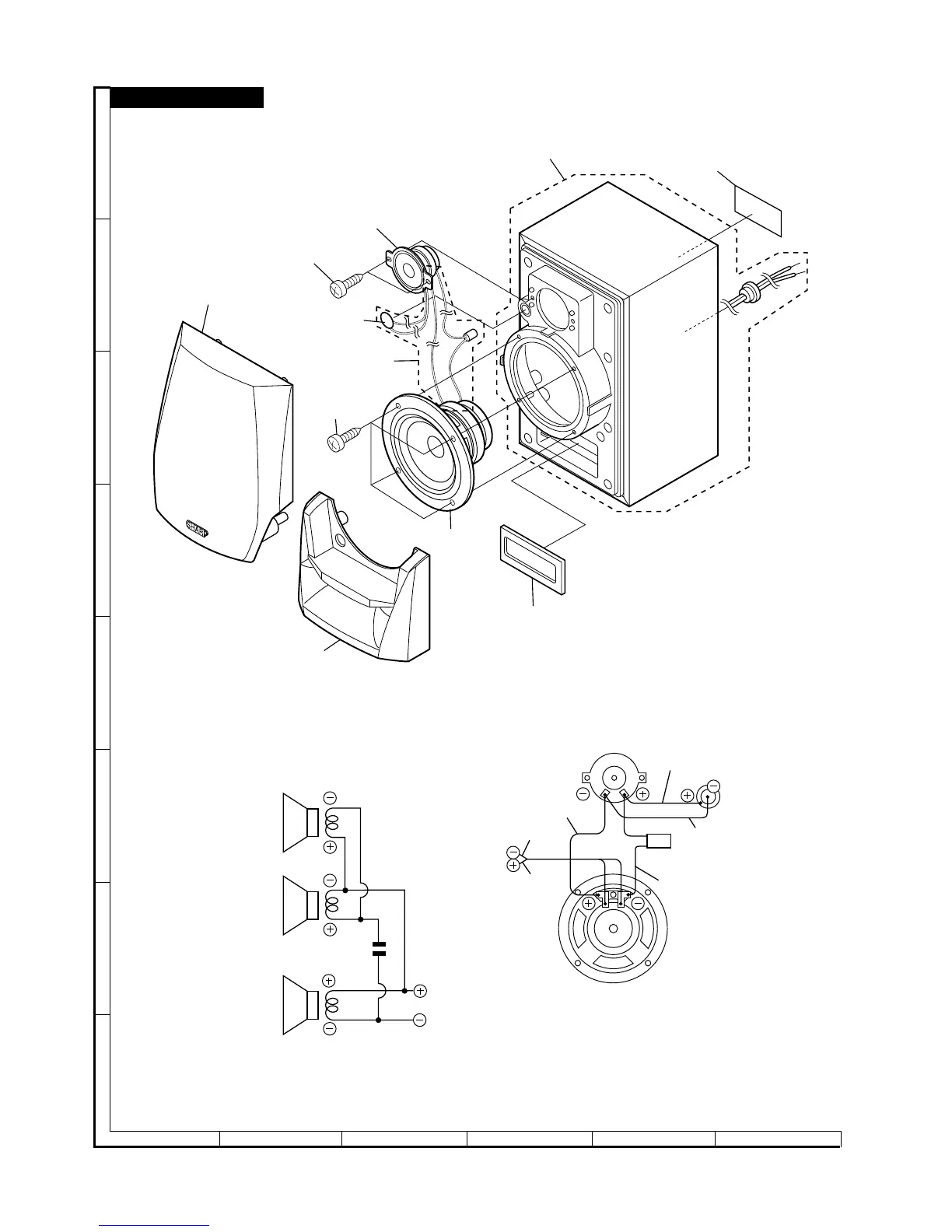

Figure 13 SPEAKER EXPLODED VIEW (2/4)
A
B
C
D
E
F
G
H
1
23
456
TWEETER
SP3 (L-CH)
SP4 (R-CH)
TWEETER
SP3 (L-CH)
SP4 (R-CH)
SUPER
TWEETER
SP5 (L-CH)
SP6 (R-CH)
SUPER
TWEETER
SP5 (L-CH)
SP6 (R-CH)
WOOFER
SP1 (L-CH)
SP2 (R-CH)
RED
Condenser
Condenser
RED
RED
BLACK
BLACK
BLACK
WOOFER
SP1 (L-CH)
SP2 (R-CH)
907
900
905x2
901
904x4
SP5,6
SP3,4
SP1,2
903
902
906
57
59
