Sharp CD-C492 - Removing and Reinstalling the Main Parts

– 15 –
CD-C492/492C

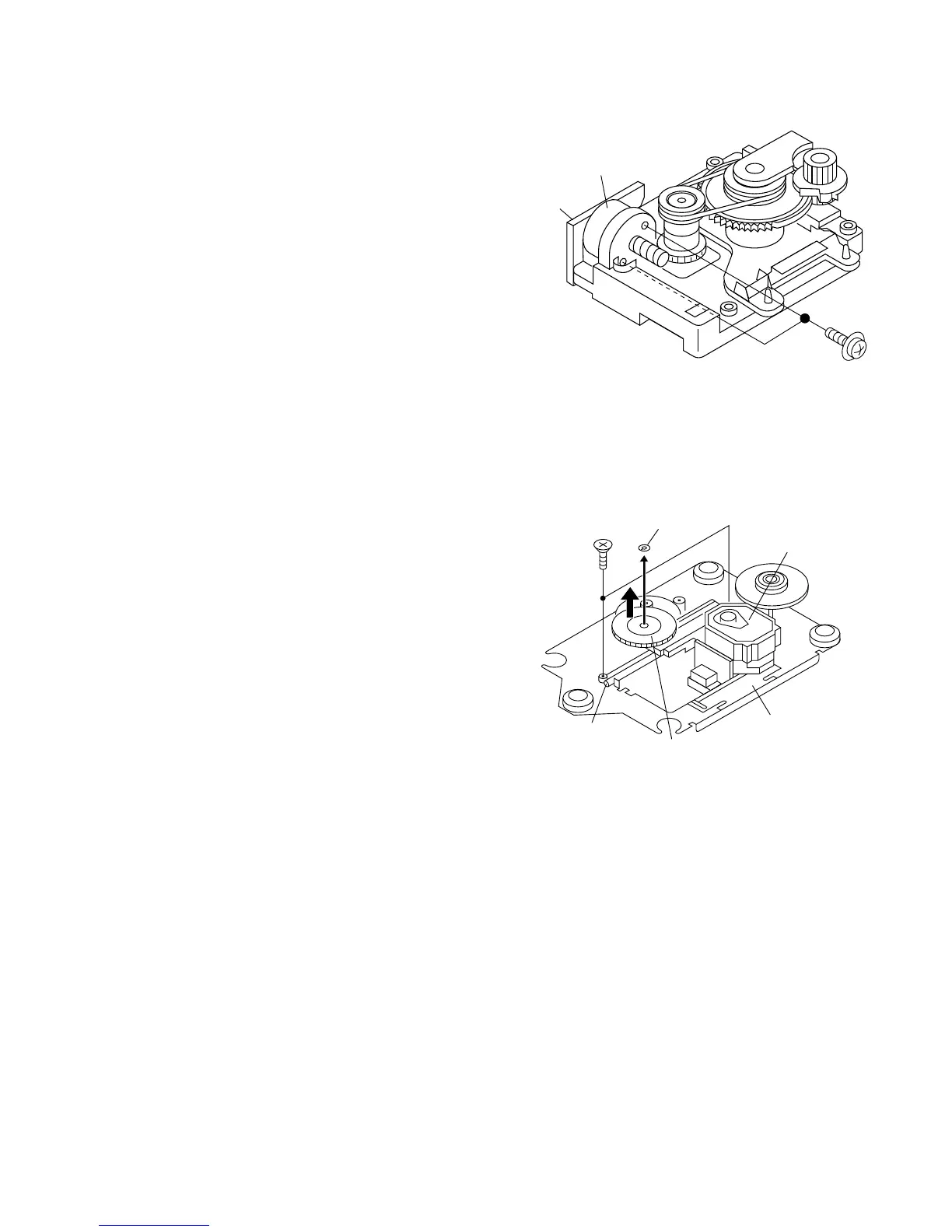

How to remove the pickup (See Fig. 15-2)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2).
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4).
3. Remove the pickup.
Figure 15-2
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 18 and 20 of the disassembly method
to remove the CD mechanism.
How to remove the loading motor
(See Fig. 15-1)
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
Figure 15-1
( A1 ) x2
ø2.6 x5mm
Loading / Up
/ Down Motor
Motor
PWB
( B1 ) x2
ø2.6 x6mm
Shaft
( B2 ) x1
Stop Washer
( B3 ) x1
Gear
( B4 ) x1
CD Mechanism
Pickup
