CD-C492/492C
– 6 –
RATED SPEAKER IMPEDANCE : 8 OHMS MIN.
IMPEDANCE NOMINALE DU HAUT-PARLEUR :
RATED SPEAKER IMPEDANCE : 8 OHMS MIN.
IMPEDANCE NOMINALE DU
HAUT-PARLEUR : 8 OHMS MINIMUM
8 OHMS MINIMUM
1
2
3
4
5
67 8
9
10
11
12
13
14
15 16

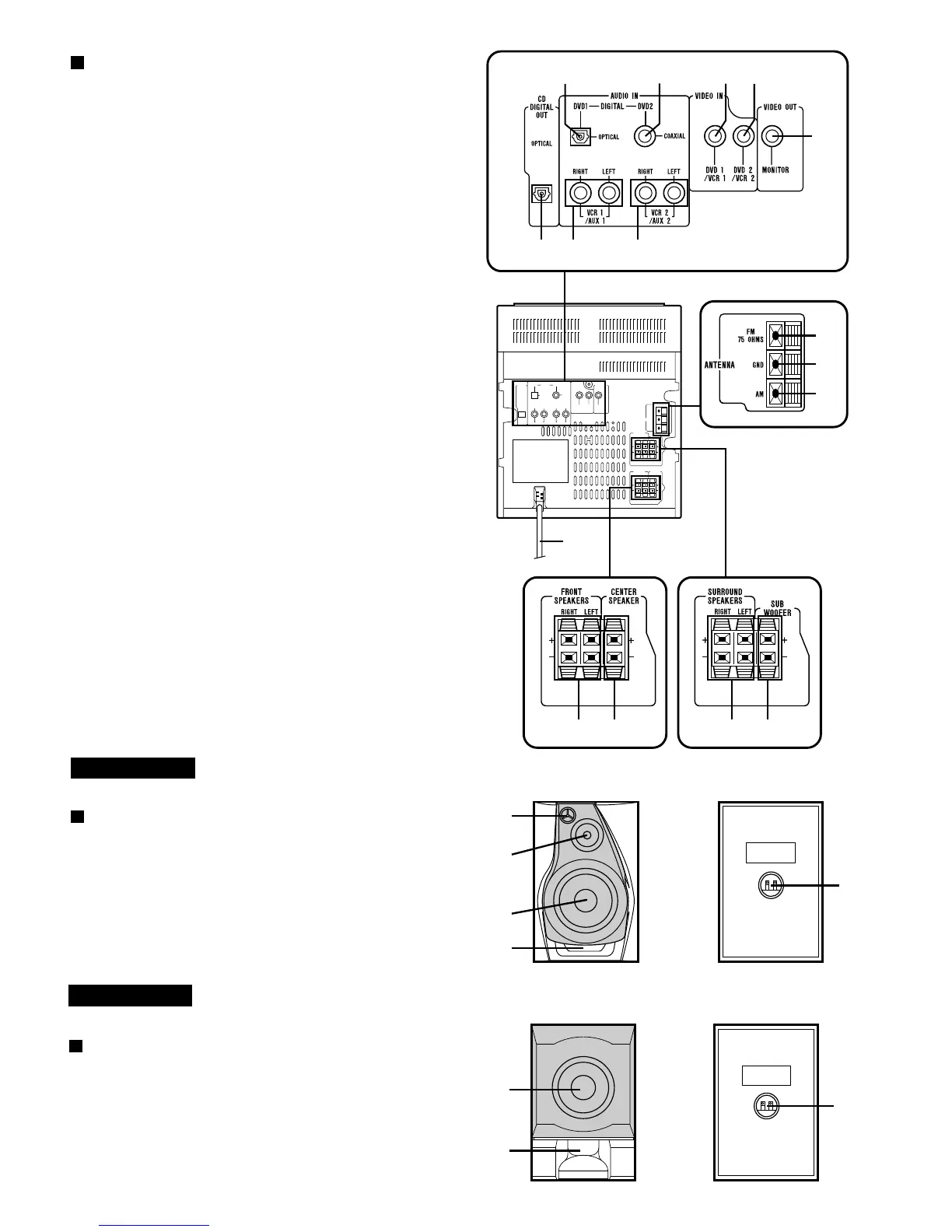

Rear panel
1. DVD 1 Digital Input Socket (Optical)
2. DVD 2 Digital Input Socket (Coaxial)
3. DVD 1/VCR 1 Video Input Socket
4. DVD 2/VCR 2 Video Input Socket
5. Video Output Socket
6. CD Digital Output Socket (Optical)
7. VCR 1/AUX 1 Input Socket
8. VCR 2/AUX 2 Input Socket
9. FM 75 ohms Aerial Terminal
10. Aerial Earth Terminal
11. AM Aerial Terminal
12. AC Power Lead
13. Front Speaker Terminals
14. Centre Speaker Terminals
15. Surround Speaker Terminals
16. Sub Woofer Terminals
CP-C492
1
2
3
4
5
Front speakers
1. Super Tweeter
2. Tweeter
3. Woofer
4. Bass Reflex Duct
5. Speaker Terminals
CP-SW492
1
2
3
Sub woofer
1. Woofer
2. Bass Reflex Duct
3. Speaker Terminals
