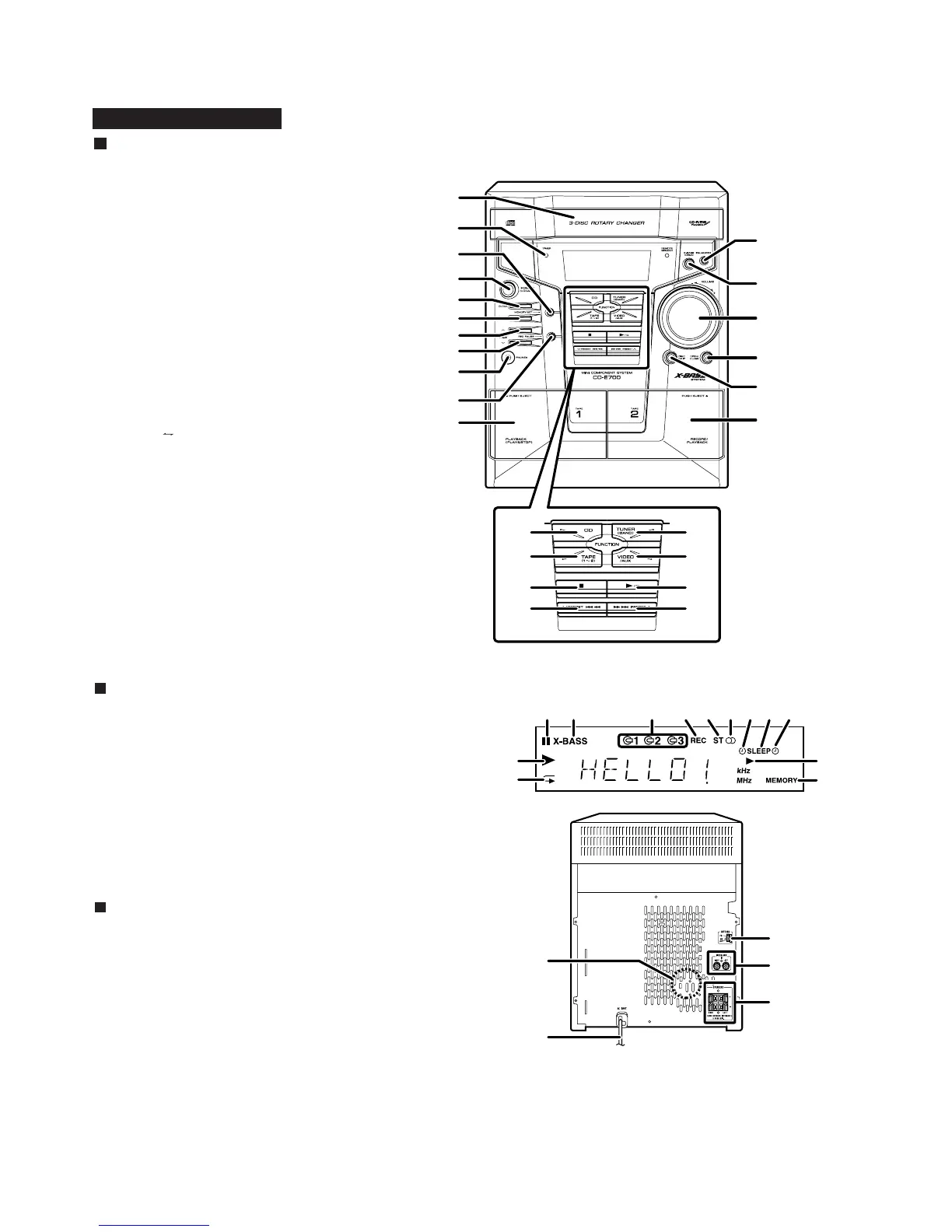

NAMES OF PARTS
CD-E700/CD-E77
Front panel
1. Disc Tray
2. Timer Set Indicator
3. Memory/Set Button
4. Power On/Stand-by Button
5. Clock Button
6. Timer/Sleep Button
7. Tuning and Time Up Button
8. Tuning and Time Down Button
9. Headphone Jack
10. Tape 2 Record Pause Button
11. Tape 1 Cassette Compartment
12. Equalizer Mode Select Button
13. Extra Bass/Demo Mode Button
14. Volume Control
15. Disc Tray Open/Close Button
16. Disc Skip Button
17. Tape 2 Cassette Compartment
18. CD Button
19. Tape (1 2) Button
20. CD or Tape Stop Button
21. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down Button
22. Tuner (Band) Button
23. Video/Auxiliary Button
24. CD Play or Repeat, Tape Play Button
25. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up Button
3
4
5
2
1
6
11
9
7
8
10
12
16
14
15
17
13
22
23
24
25
18
19
20
21
Display
1. CD Pause Indicator
2. Extra Bass Indicator
3. Disc Number Indicators
4. Tape 2 Record Indicator
5. FM Stereo Mode Indicator
6. FM Stereo Receiving Indicator
7. Timer Play Indicator
8. Sleep Indicator
9. Timer Recording Indicator
10. CD Play Indicator
11. CD Repeat Play Indicator
12. Tape Play Indicator
13. Memory Indicator
Rear panel
1. Cooling Fan
2. AC Power Cord
3. FM/AM Loop Antenna Jack
4. Video/Auxiliary (Audio Signal) Input Jacks
5. Speaker Terminals
Note:
This product is equipped with a cooling fan inside, which begins to
run at a specified volume level for better heat radiation.
2
1
3
4
5
13
23456791 8
12
10
11
