Sharp CD-ES770 Service Manual

CD-ES770
– 12 –
A
B
C
D
E
F
G
H
1
23456
SPEAKER BOX PARTS
901 GBOXLA091AW01 J BC Speaker Box Ass’y,Left
902 GBOXRA091AW01 J BC Speaker Box Ass’y,Right
903 CPNLSA005AW05 J AV Front Panel Ass’y,Left
904 CPNLSA006AW05 J AV Front Panel Ass’y,Right
905 HPNLSA037AWSA J AN Side Panel,Left
906 HPNLSA038AWSA J AN Side Panel,Right
907 TSPC-A370AWZZ J AB Label,Specifications
908 PFLT-0046AWZZ J AC Felt
909 QCNWHA001AWZZ J AK Speaker Cord Ass’y with
Capacitor
RD BK
BK
BK BL
BL
SP3,
TWEETER
SP5,
SUPER TWEETER
SP5,
SUPER TWEETER
SP1,
WOOFER
C2
Capacitor
2.7 µF,
C1,
4
SP3,
TWEETER
4
6
6
SP5,
SUPER TWEETER
SP5,
SUPER TWEETER
6
6
2
SP1,
WOOFER
905, 906
903, 904
908x3
914x3
2
250 V
Electrolytic
C2
Capacitor
2.7 µF,
C1,
250 V
Electrolytic
SP3,4
SP7,
SP9,
8
10
SP1,2
901, 902
907
909
915x4
910x4
911x2
x2
x3
911x2
911x2
912x2
910 XJBSD40P16000 J AB Screw,M4x16mm
911 XJBSD30P12000 J AA Screw,M3x12mm
912 XMPSF40P25000 J AB Screw,M4x25mm
914 PFLT-0079AWZZ J AG Felt
915 PCUSG0147AWZZ J BC Cushion,Leg
SP1,2 RSP-ZA128AWZZ J BD Woofer
SP3,4 RSP-ZA132AWZZ J AS Tweeter
SP5,6 LHLDZA068AWM1 J AM Super Tweeter Ass'y
CP-ES770

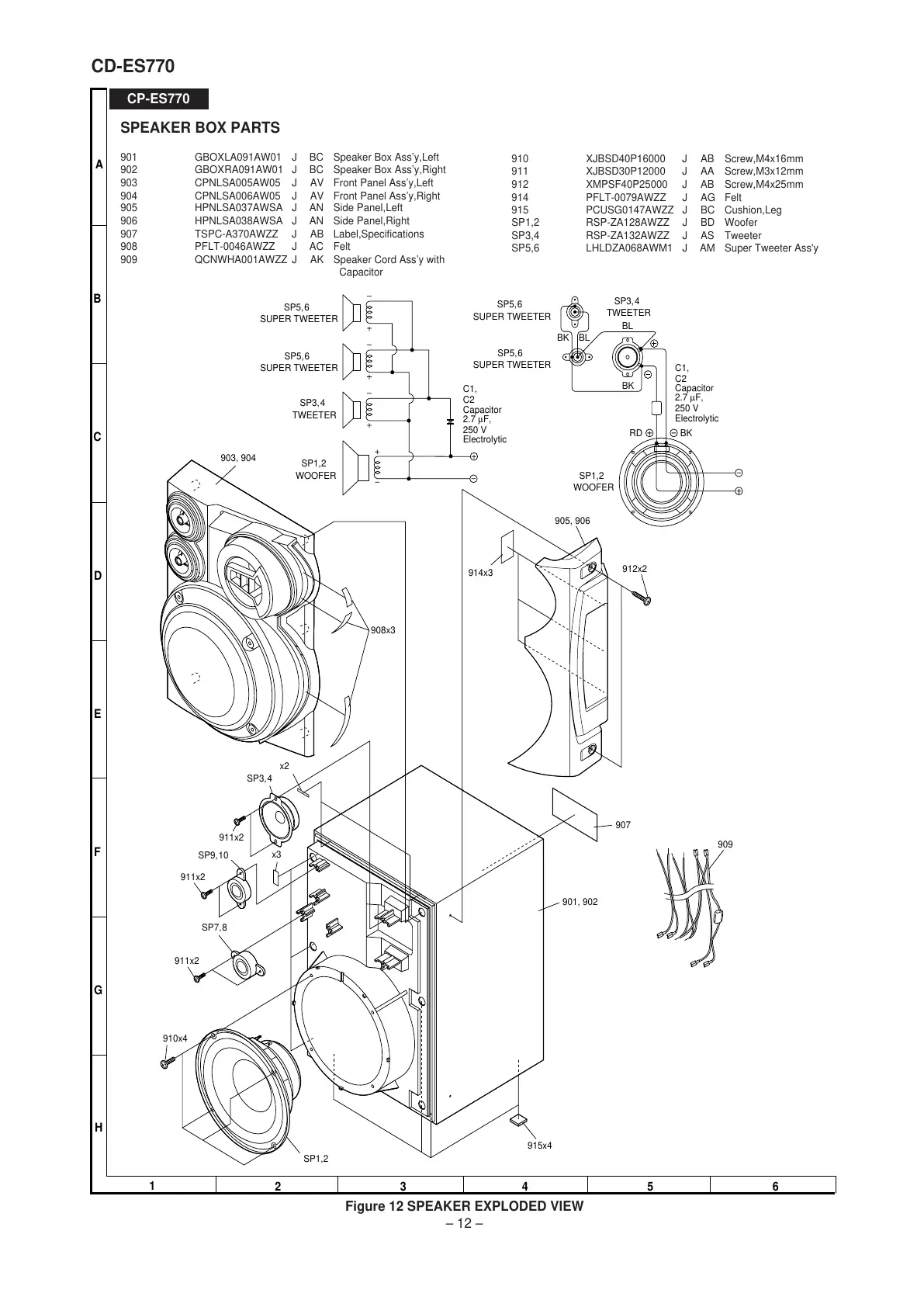

Figure 12 SPEAKER EXPLODED VIEW
