CD-MPS1000
1 – 2

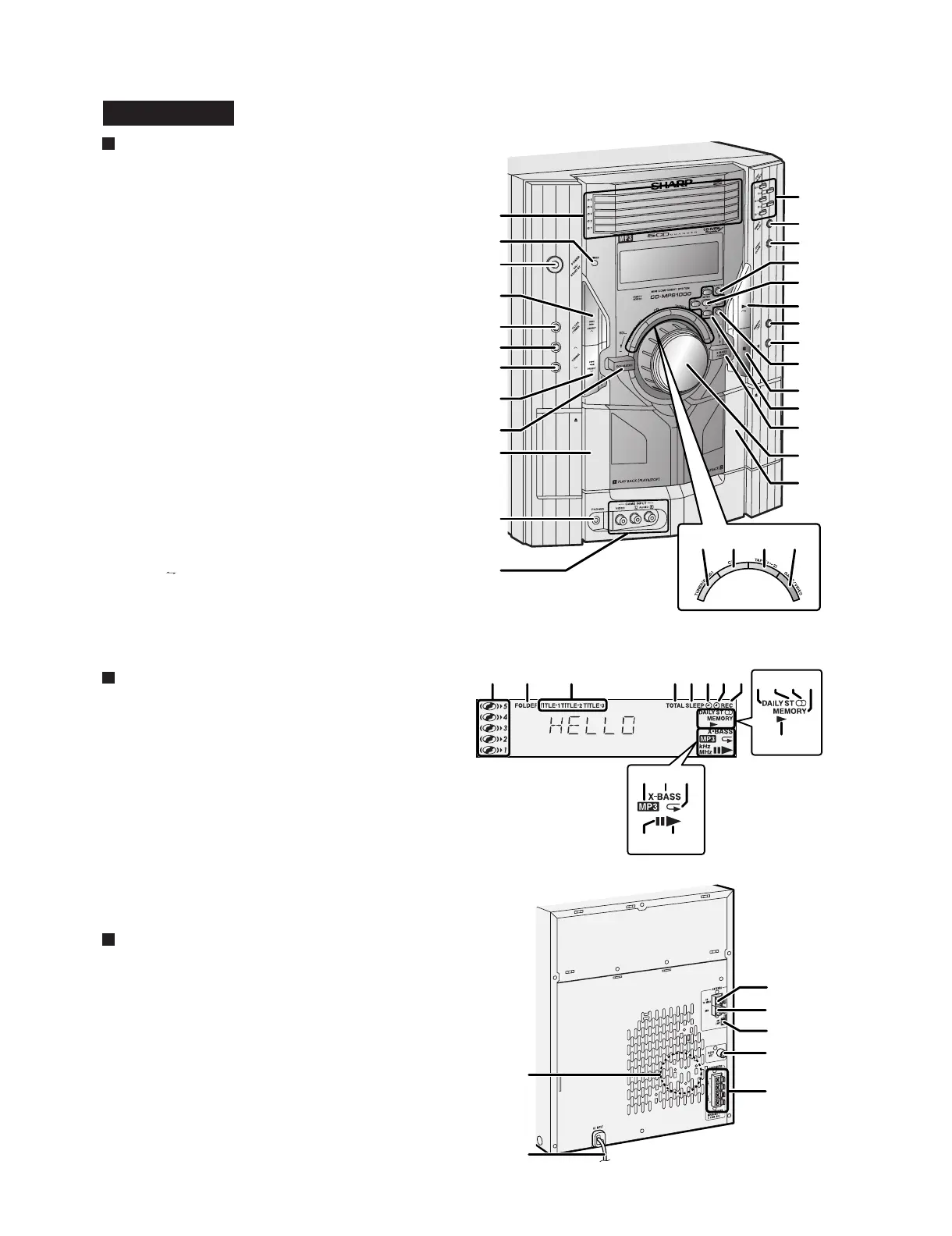

[2] Names of parts
Front panel
1. Disc Trays
2. Timer Indicator
3. Power On/Stand-by Button
4. Disc Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button
5. Clock/Timer Button
6. Tuning Up Button
7. Tuning Down Button
8. Disc Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down, Time Down Button
9. Equalizer Mode Select Button
10. Tape 1 Cassette Compartment
11. Headphone Jack
12. Game/Video Input Jacks
13. Disc Number Select Buttons
14. Disc Direct Play Button
15. Disc Tray Open/Close Button
16. Character Button
17. Enter Button
18. Disc Play or Repeat, Tape Play Button
19. Memory/Set Button
20. Tape 2 Record Pause Button
21. MP3 Disc Navigation Mode Select Button
22. Disc or Tape Stop Button
23. Cursor Buttons
24. Extra Bass/Demo Mode Button
25. Volume Control
26. Tape 2 Cassette Compartment
27. Tuner (Band) Button
28. CD Button
29. Tape (1 2) Button
30. Game/Video Button
1
13
15
25
17
19
23
24
3
2
5
6
7
16
22
21
26
14
20
11
8
12
4
9
10
28 29 3027
18
Display
1. Disc Number Indicators
2. MP3 Folder Indicator
3. MP3 Title Indicators
4. MP3 Total Indicator
5. Sleep Indicator
6. Timer Play Indicator
7. Timer Recording Indicator
8. Tape 2 Record Indicator
9. Daily Timer Indicator
10. FM Stereo Mode Indicator
11. FM Stereo Receiving Indicator
12. Memory Indicator
13. Tape Play Indicator
14. MP3 Disc Indicator
15. Extra Bass Indicator
16. Disc Repeat Play Indicator
17. Disc Pause Indicator
18. Disc Play Indicator
Rear panel
1. Cooling Fan
2. AC Power Cord
3. FM 75 Ohms Antenna Terminal
4. FM Antenna Ground Terminal
5. AM Loop Antenna Jack
6. Video Output Jack
7. Speaker Terminals
1
5
3
6
4
7
2
4 5321 7 8
9
13
1110 12
14 15 16
17
18
6
CD-MPS1000
