Sharp CD-MPS1000 User Manual

CD-MPS1000
3 – 3
1 Passive Radiator 1. Screw ...................... (A1) x4
2. Side Panel .............. (A2) x1
3. Screw ...................... (A3) x4
2 Woofer 1. Front Panel ............. (B1) x1
2. Screw ...................... (B2) x4
3 Tweeter 1. Screw ...................... (C1) x2
4 Super Tweeter 1. Screw ...................... (D1) x4
STEP

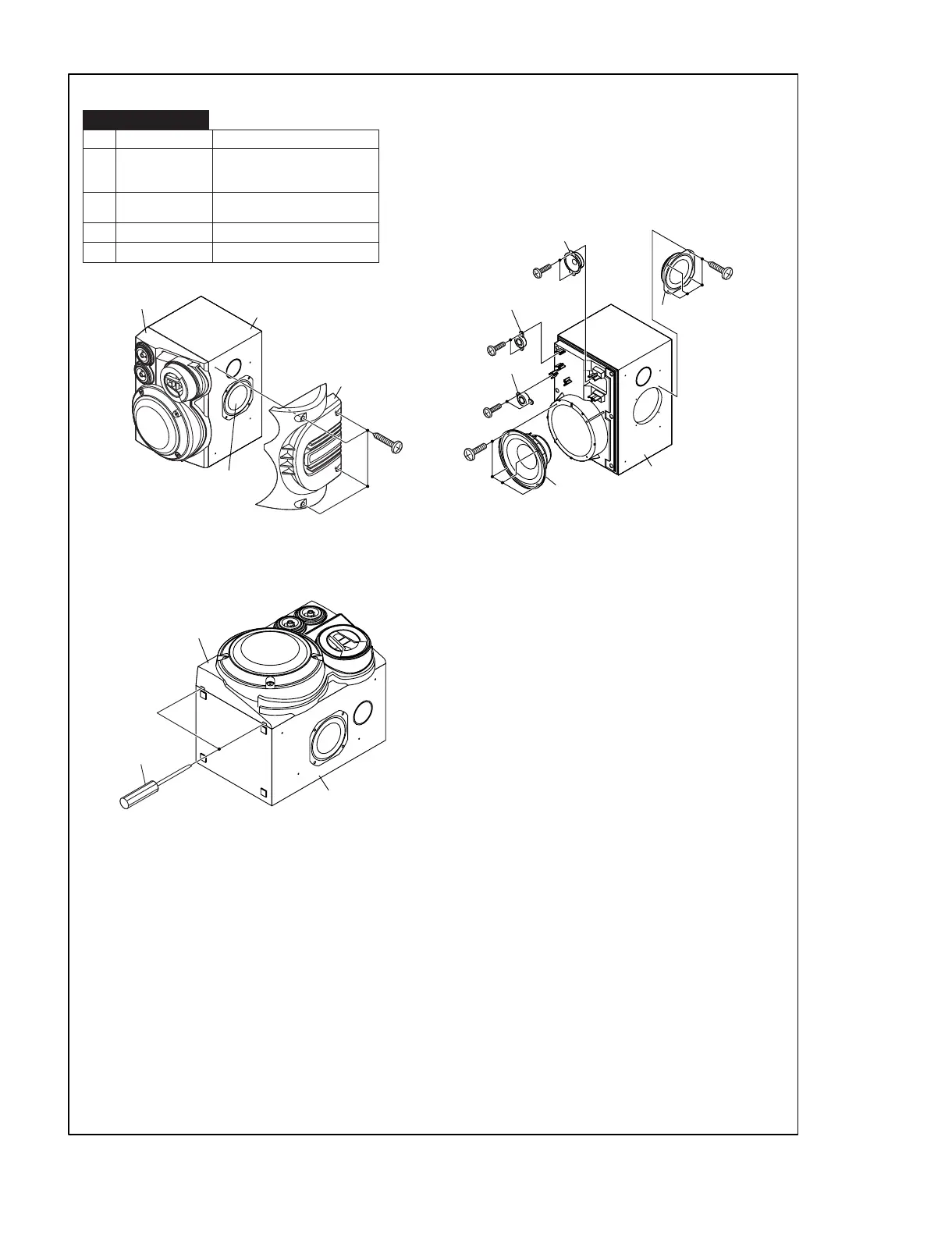

REMOVAL PROCEDURE
CP-MPS1000
(A1)x4
φ4x35mm
(A2)x1
Speaker Box
Passive Radiator
Front Panel
Speaker Box
(B1)x1
Screwdriver
Driver should
be pried away
from Speaker Box.
(A3)x4
φ4x16mm
(B2)x4
φ4x16mm
(D1)x2
φ3x12mm
Passive Radiator
Woofer
Speaker Box
Super Tweeter
Tweeter
(D1)x2
φ3x12mm
(C1)x2
φ3x12mm
Super Tweeter
