CD-C410H,CP-C410
– 3 –
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

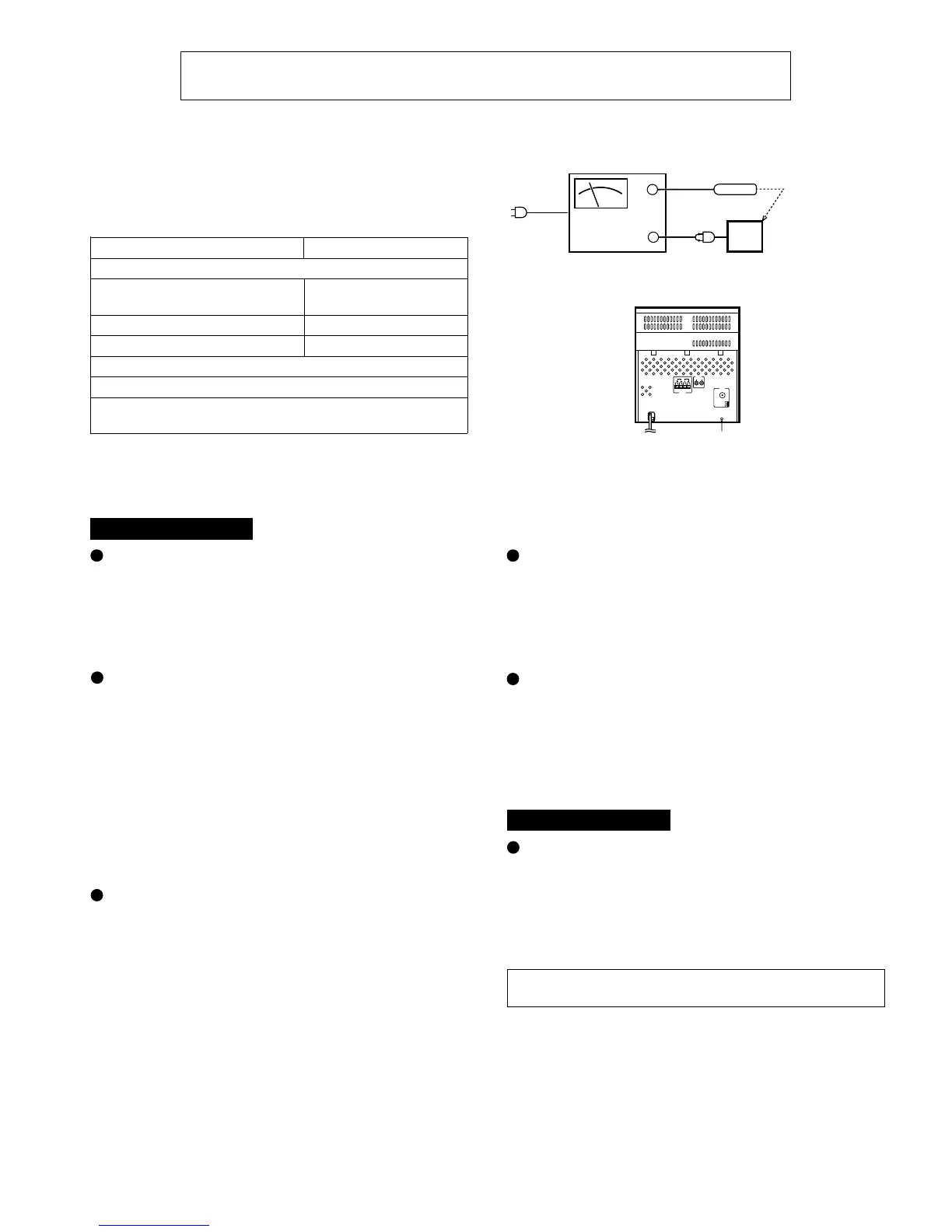

Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current(Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzor sounds.
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND TERMINAL
OF PHONO TERMINAL
PROBE
AC
UNIT
WITHSTANDING
VOLTAGE TESTER
+
-
OUT
OF CHASSIS
SCREW
IMPORTANT SERVICE NOTES (FOR UK ONLY)
General
Power source: AC 230 V, 50 Hz
Power consumption: 65 W
Dimensions: Width; 270 mm (10-5/8")
Height; 300mm (11-13/16")
Depth; 359.5mm (14-3/16")
Weight: 4.8 kg (10.6 lbs.)
Amplifier section
Output power: PMPO; 68 W
(Except for UK) MPO; 34 W (17 W + 17 W)
(DIN 45 324)
RMS; 20 W (10 W + 10 W)
(DIN 45 324)
Output power: MPO; 34 W (17 W + 17 W) (10 % T.H.D.)
(For UK) RMS; 20 W (10 W + 10 W) (10 % T.H.D.)
Output terminals: Speakers; 8 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Input terminals: VIDEO/AUX (audio signal);
245 mV/47 kohms
Tuner section
Frequency range: FM; 87.5 - 108 MHz
AM; 522 - 1,620 kHz
Compact disc player section
Type: 3-disc multi-play compact disc player
Signal readout: Non-contact, 3-beam semi-con-ductor
laser pickup
D/A Converter: 1-bit D/A converter
Frequency response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
Cassette deck section
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter: 0.25 % (DIN 45 511)
(Except for UK)
Wow and flutter: 0.15 % (WRMS)
(Except for UK)
Speaker section
Type: 100 mm (4") full range speaker
Maximum input power: 20 W
Impedance: 8 ohms
Dimensions: Width; 180 mm (7-1/8")
Height; 300 mm (11-13/16")
Depth; 204 mm (8")
Weight: 2.1 kg (4.6 lbs.)/each
SPECIFICATIONS
CD-C410H
CP-C410
Specifications for this model are subject to change without prior
notice.
