CD-C410H,CP-C410
– 9 –
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 10 and 11 of the disassembly method
to remove the CD mechanism.

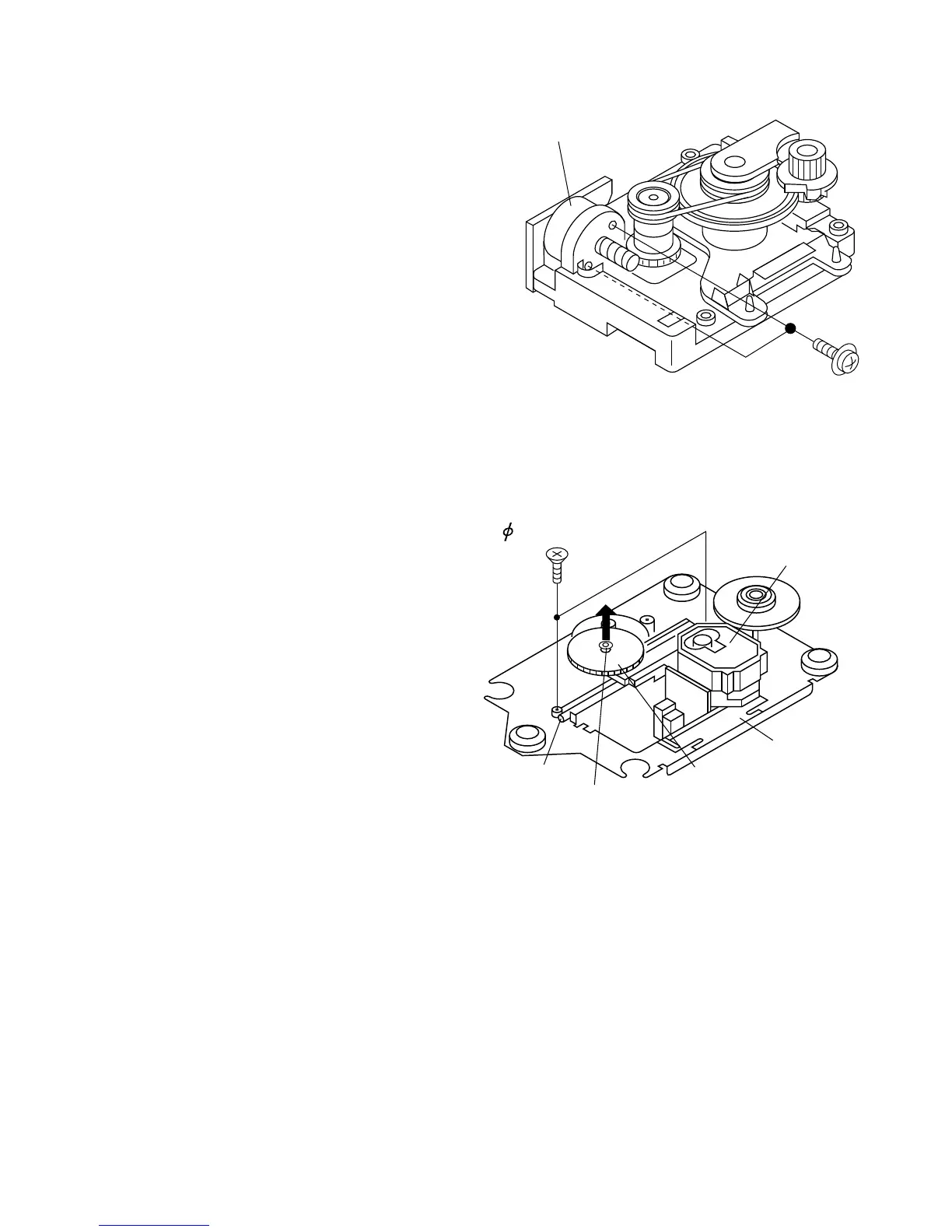

How to remove the loading motor
(See Fig. 9-1)
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
Figure 9-1
( A1 ) x2
ø2 x5mm
Loading Motor
Figure 9-2
How to remove the pickup (See Fig. 9-2)
1. Remove the screws (C1) x 2 pcs., to remove the shaft (C2).
2. Remove the stop washer (C3) x 1 pc., to remove the gear
(C4).
3. Remove the pickup.
( C1 ) x2
2.6 x6mm
( C2 ) x1
( C3 ) x1
( C4 ) x1
CD Mechanism
Pickup
To Next Page
