Sharp CV-P09LX User Manual

CVP09LX
6

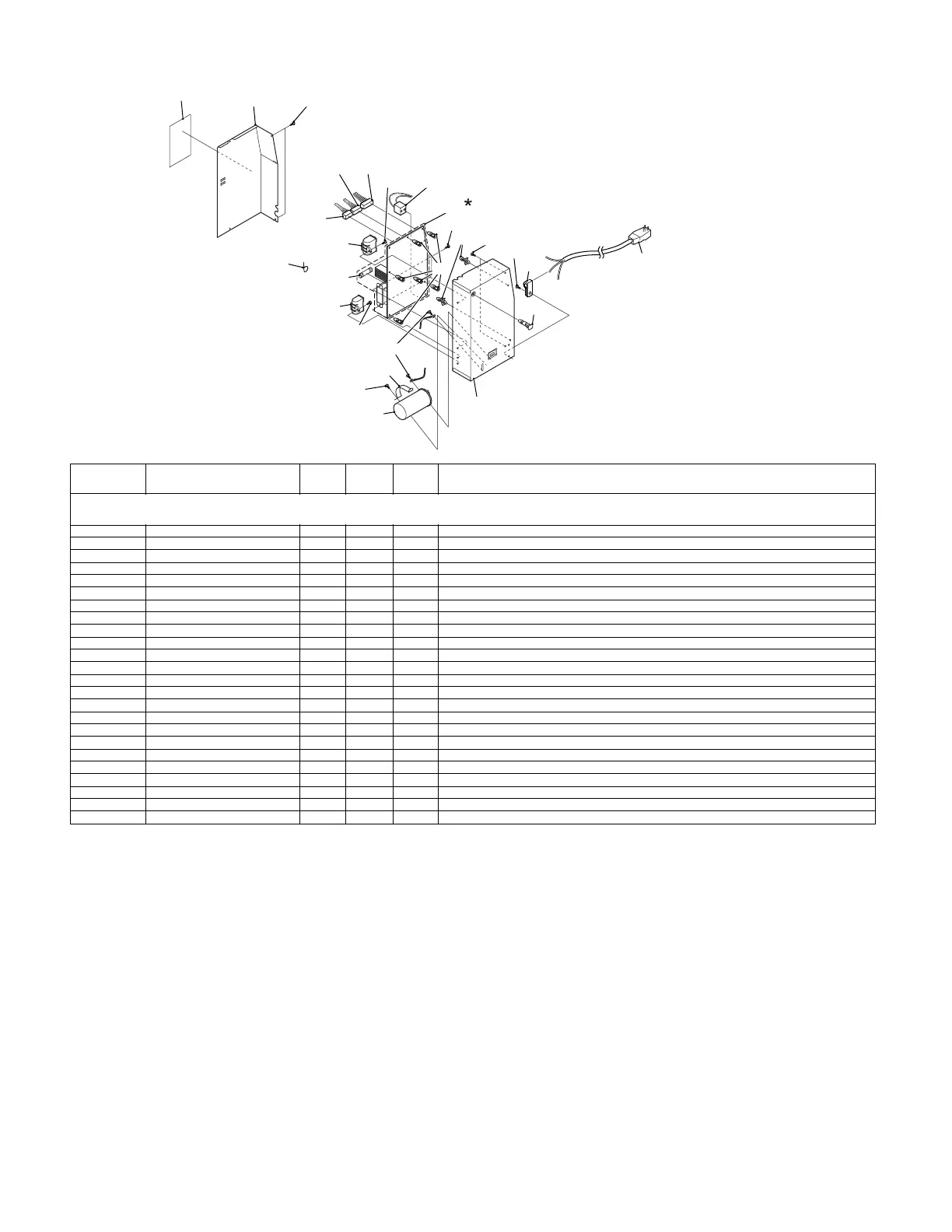

[3] CV-P09LX (Control box parts)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[3] CV-P09LX (Control box parts)
1-28 LBND-A042JBE0 AC Wire fixing band
2-1 CACC-A030JBKZ BM Pack ass'y
2-2 DPWBFA484JBKZ BT Control board uint
2-3 LBNDKA130JBWZ AK Capacitor clamp
2-4 LHLDW0366JBE0 AA Wire holder
2-5 PBOX-A450JBWZ AS Control box
2-6 PCOV-B126JBWZ AP Control box cover
2-7 PSPA-A146JBE0 AC Spacer
2-8 PSPA-A177JBZZ AE PWB spacer
2-9 PSPA-A178JBZZ AE PWB spacer
2-10 QFS-AA048JBE0 AB Fuse
2-11 QW-VZF46 5JB ZZ Lead wire
2-12 QW-VZF46 6JB ZZ Lead wire
2-13 QW-VZE9 99JBZZ AK Lead wire
2-14 RC-HZA484JBZZ AY Running capacitor
2-15 RC-HZA509JBZZ AP Fan motor capacitor
2-16 RC-HZA529JBZZ AR Fan motor capacitor
2-17 RH-HXA047JBZZ AV Thermistor
2-20 TLABCC034JBRZ AD Wiring diagram
6-9 XHTS740P08000 AC Tap tight screw (for earth leads & Control box)
6-42 XJTS740P08000 AC Tap tight screw (for the transformer)
6-43 XJTS740P10000 AC Tap tight screw (for Running capacitor & Wire holder)
6-44 XJTS740P12000 AC Tap tight screw (for Fan motor capacitor)
6-45 XTPS740 P10000 AC Tapping screw (for Control box ass'y)
* Control board unit (2-2) consists of three units.
2-2-(1) · The main control unit with Fuse (2-10).
2-2-(2) · The display & detector unit.
2-2-(3) · The display unit for the cluster.
But we can't deliver the units separatly.
Only you can order Fuse (2-10).
-(1)
2-2
2-6
6-9
6-44
6-42
6-45
6-43
6-44
2-3
2-5
2-8
2-4
2-1
2-7
2-9
2-16
2-17
2-12
2-11
2-20
2-15
2-14
2-10
2-13
6-43
6-9
1-28
