INSTALL DRAINAGE HOSE
Drainagehosemustbeinstalledbeforeusing,otherwiseblockageofdrainmayoccur
and normal run of unit may be affected.

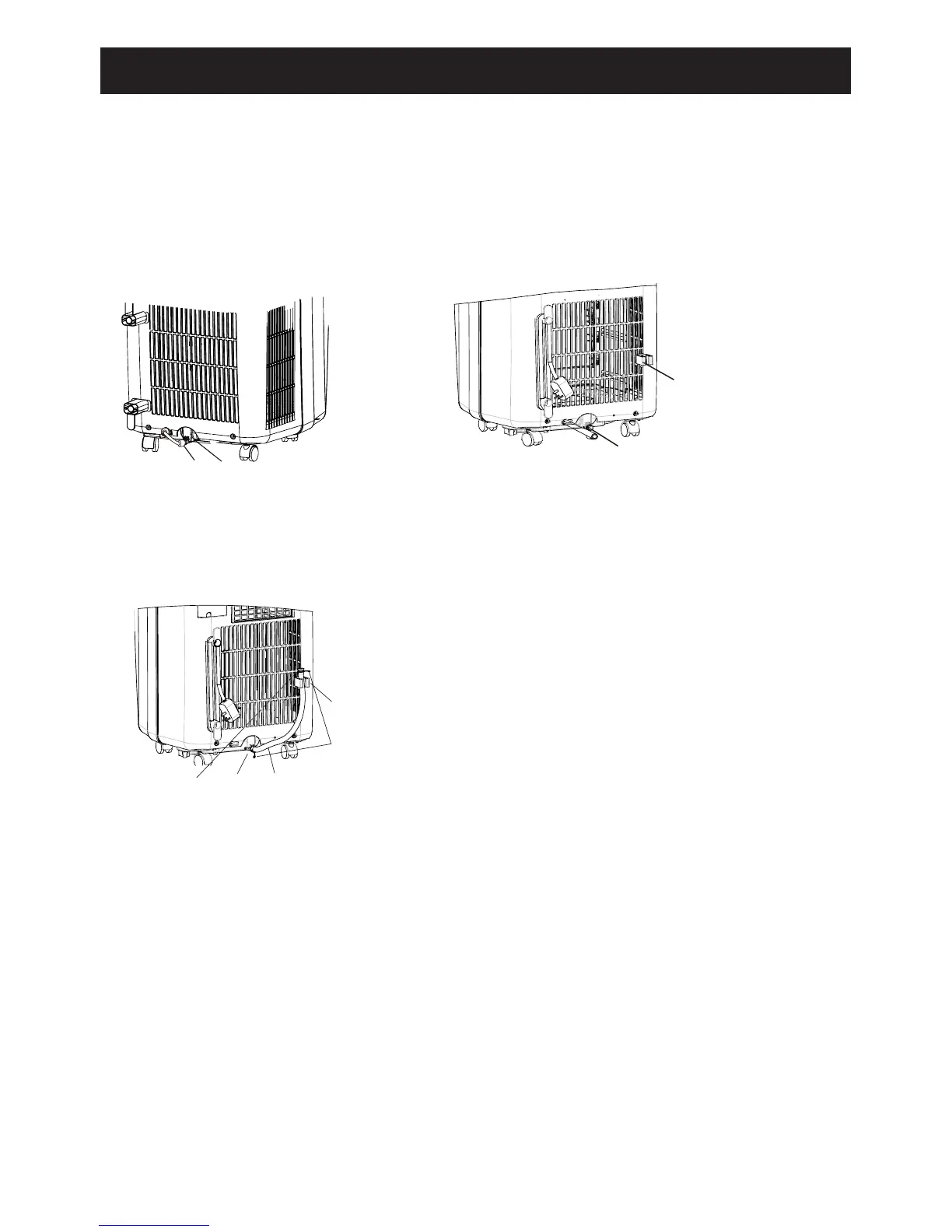

1 Remove drain cap from drain port.
2 Attach the drain hose clamp to the back panel of the air conditioner near the
drain port with the screw.
A.Draincap
B.Drainport
A.Drainport
B.Drainhoseclamp
A. Rubber plug
B.Drainport
C.Drainhose
D.Drainhoseclip
E.Drainhoseclamp
3 Attach one end of the drain hose to the drain port with the clip.
4 Insert the rubber plug into the other end of the drain hose and secure
with clip.
