Sharp DV-SL10S - Page 20

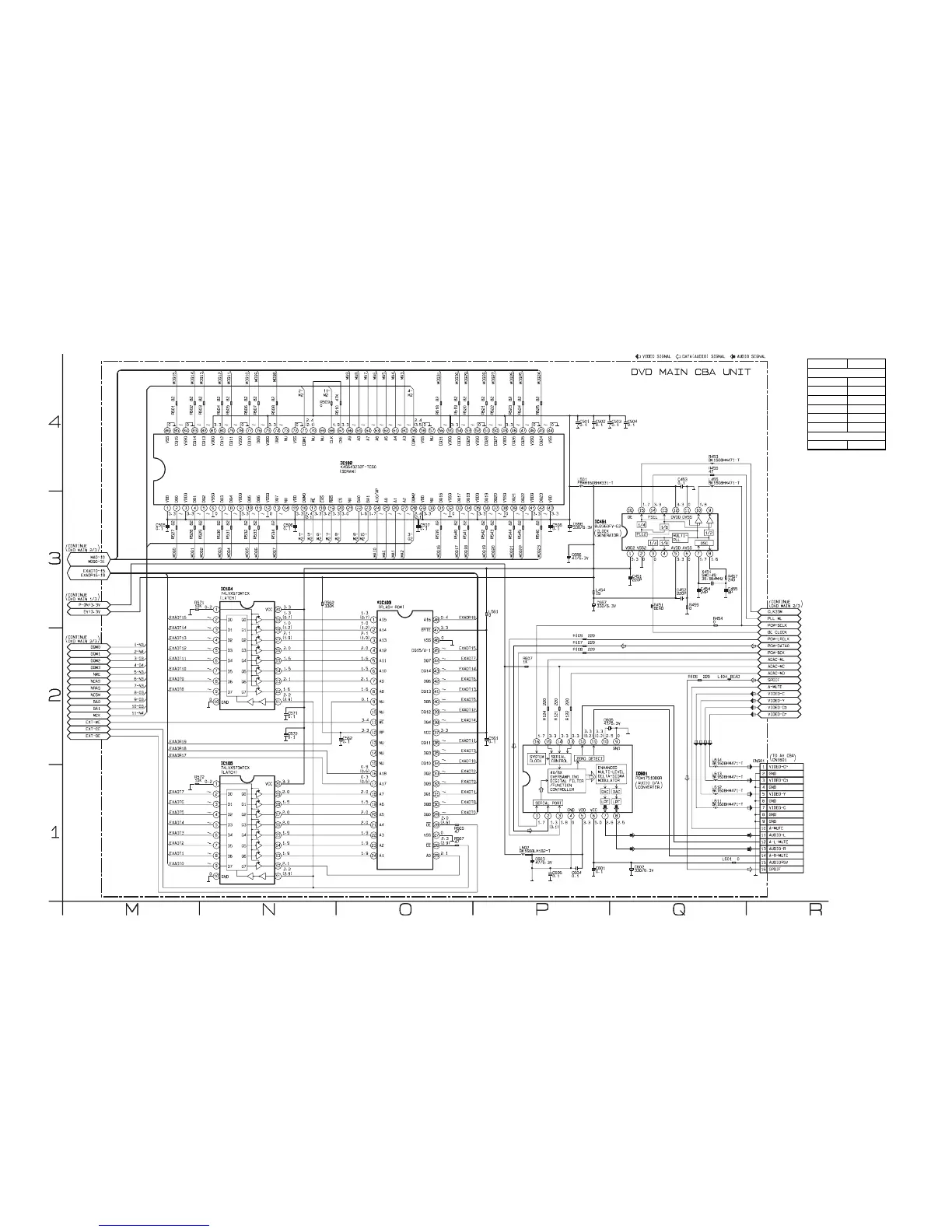

DVD Main 3/3 Schematic Diagram (DV-SL10W, DV-SL10, DV-SL10X, DV-SL10(RU))
1-3-5 1-3-6
E5754SCD3
Note:
IC103 is not supplied separately.
Be sure to replace with the DVD Main CBA unit when servicing IC103.
*
DVD MAIN 3/3
Ref No. Position
IC102 O-4
IC103 O-3
IC104 N-3
IC105 N-1
IC451 P-3
IC601 Q-1
CN601 R-1
ICS
CONNECTOR
