Sharp EC-S2142 - Vacuum Cleaner Assembly and Components; Section Identification and Assembly; Included Accessories

2
Metal telescopic tube
Extension/contraction button
Adjust the length while
sliding the button.
Fitting the brush to the metal
telescopic tube.
Page
4
ASSEMBLING THE VACUUM CLEANER

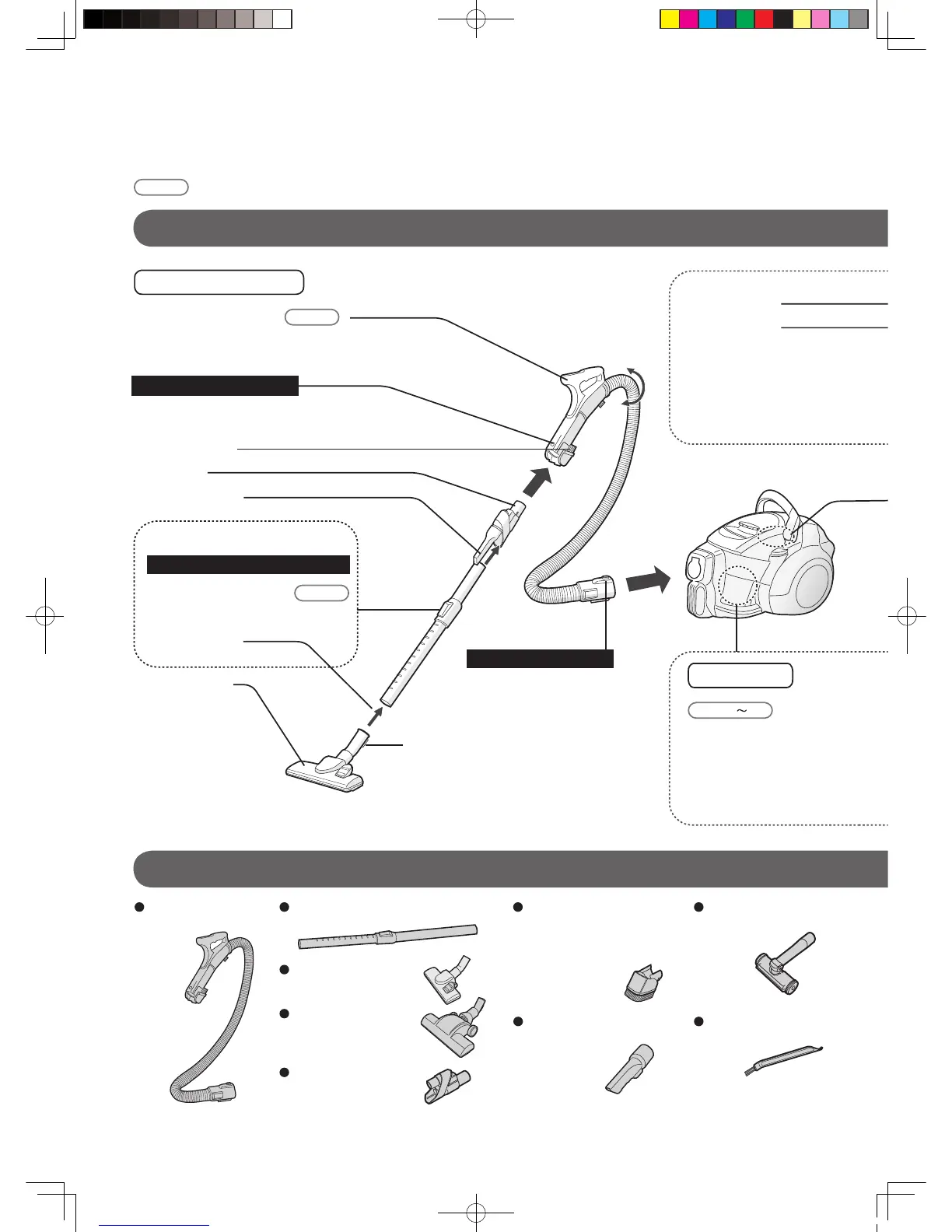

Name of each section and how to assemble
Accessories
Page
Page
4
Page
7
11
Dust cup
Operating handle
Click
Click
Pages within a frame show the ones where major points are explained.
The hose can turn 360
degrees to prevent
excessive distortion.
Hand control switch
Press to start, change mode and
turn off the operation.
Attach/ejector button
Remove the metal telescopic tube
while pressing the button.
Dusting brush
Crevice nozzle
Suction head
(Floor head)
Hook (rear side)
Alarm lamp /Dust disposal-
time indication
Exhaust outlet
The exhaust outlet incorporates
an allergy defense f ilt e r
and the product main body
incorporates an exhaust-air
ultra high efficiency air filter.
(Maintenance is unnecessary.
They are not detachable.)
care is needed. They are not
Attach/ejector button
Remove t he hose while
pressing the button.
Rotate the cup handle to open
the bottom lid.
Hose (1 piece) Metal telescopic tube (1 piece)
Air Turbine head
(1 piece)
Floor head
(1 piece)
Dusting brush (1 piece)
(Initially installed in
the operating handle)
Crevice nozzle (1 piece)
Multi head (1 piece)
Cleaning brush (1 piece)
(Installed in the product)
Joint pipe
(1 piece)
(EC-S2142 only)
Joint pipe
(EC-S2142 only)
