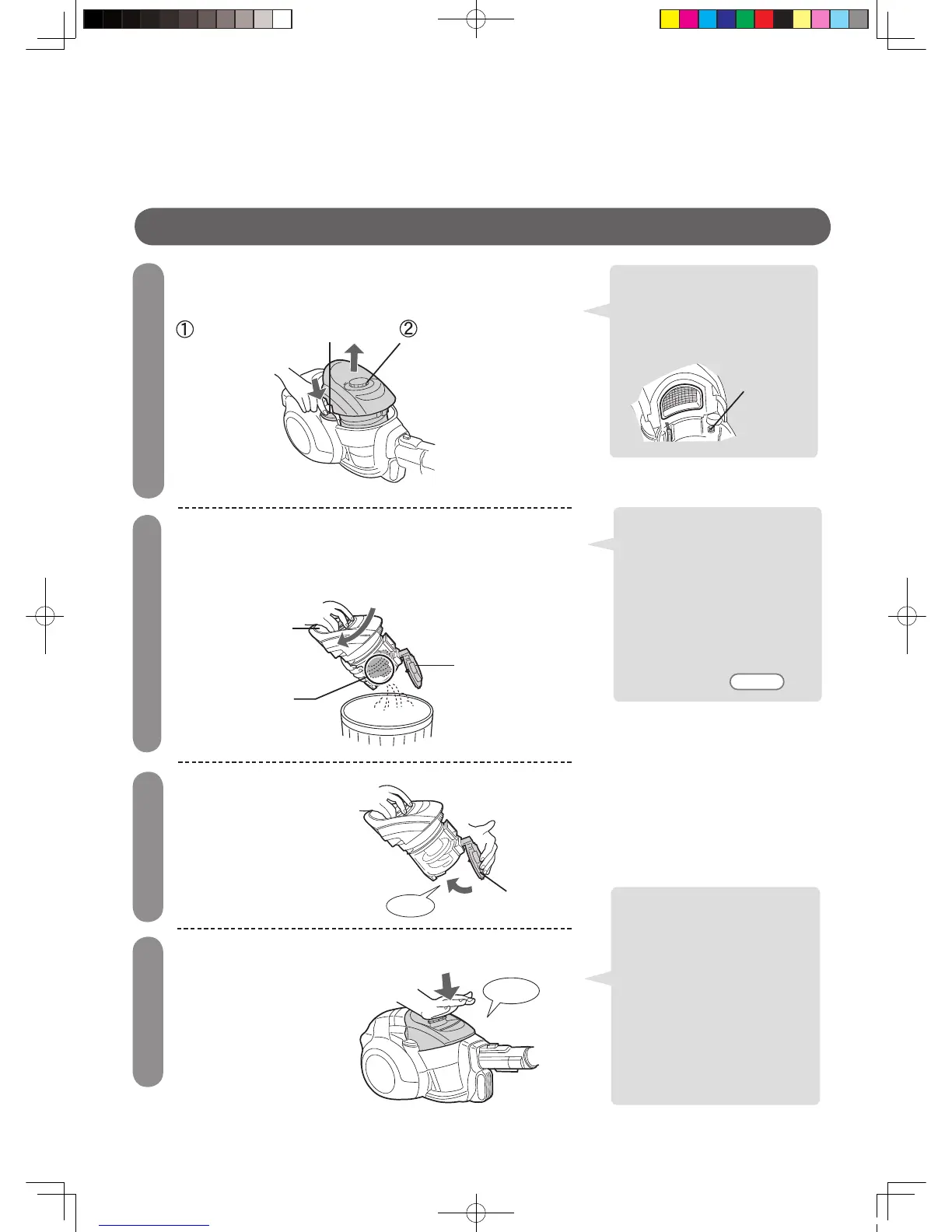

Empty the dust cup over a newspaper, trash box, etc. since the dust is likely to spill out.
Remove the power plug from the outlet and take the
dust cup out of the unit.
Press the cup ejector button. Lift up the dust cup.
Emptying the dust cup.
Rotate the dust cup handle in the direction of the arrow to open the
bottom lid.
(The screw fin rotates and pushes out the dust.)
Close the botto m lid
securely.
Install the dust cup in the product.
Push it firmly until it clicks.
• Be careful in handling the
removed dust cup set to
prevent your hands and
fingers from getting injured
by the gear wheels.
• Do not rotate the cup handle
when the dust cup is popped up
from the product or is being
carried.
• Depending on the kind or
amount of dust, it may
be hard to operate the cup
handle.
• If you find it hard to open the
bottom lid, do the cleaning of
the inside of the screw fin.
• If the dust cup set is not
installed in the product
securely, the suction power
may be reduced or the dust
may enter into the motor
cauing malfunctions.
To install it securely
• Remove the dust and foreign
substances from the bottom of
the dust-cup in the vacuum
cleaner
• After installation, lift the dust
cup slightly to check that it
is locked in.
Cup handle
Bottom lid
Screw fin
Bottom lid
Gear wheel
