The exhaust filter consists of an electrostatic HEPA Type filter. (EC-S5170) HEPA
Filter (EC-T5180 series)
The HEPA Type filter should be replaced at least every 10 months to maintain efficient
filtration. (EC-S5170)
HEPA Filter(EC-T5180 series) can be washed with running water.
1
Exhaust Filter
Case

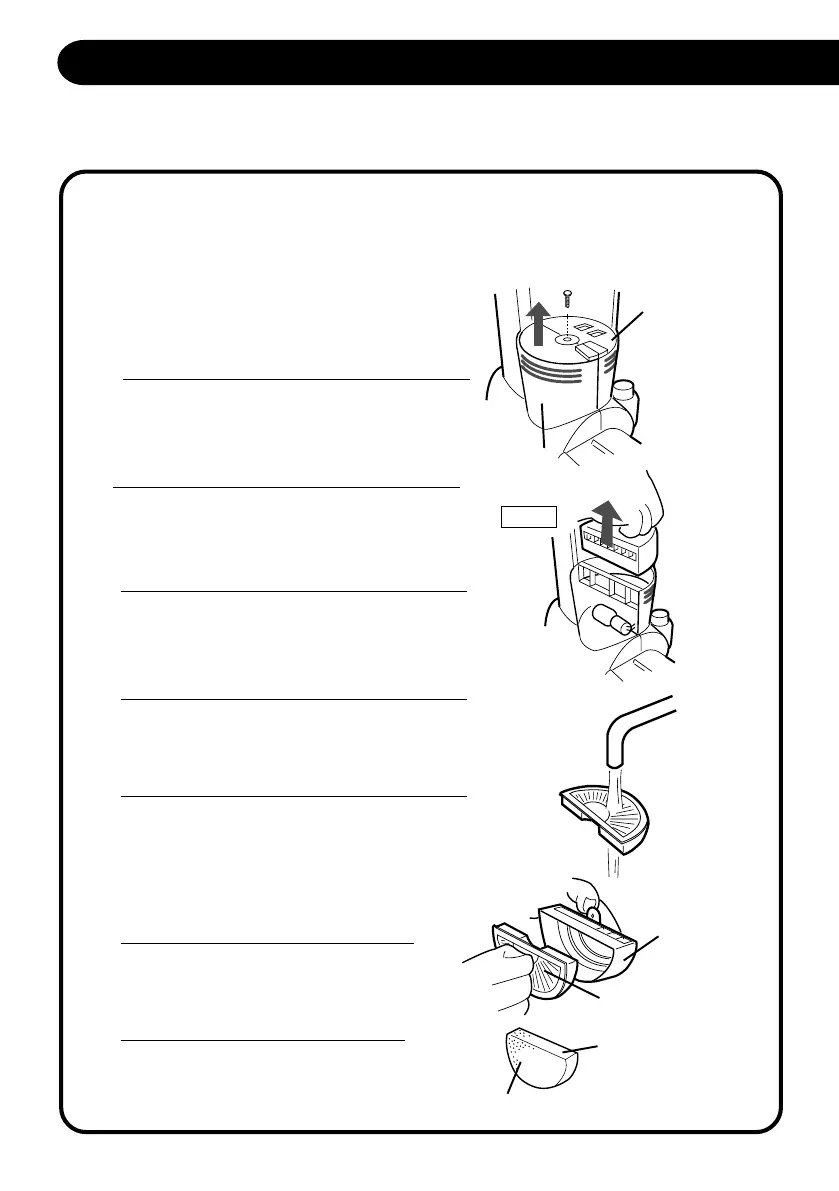

HOW TO MAINTAIN OR REPLACE THE EXHAUST FILTERS
2
Remove the dirt compartment.
3
4
5
Fig.37
7
8
REPLACEMENT INSTRUCTIONS
Unscrew the center screw. (Fig.37)
Lift the exhaust filter case.(Fig.38)
Lift the lamp cover. (Fig.37)
At the botton of the case HEPA type filter (EC-
S5170) or HEPA filter(EC-T5180) is placed.
Replace the filter as before and set the
filter case and lamp cover.
Secure the center screw.
Fig.38
Fig.39
Lamp cover
Filter case
HEPA filter
(EC-T5180 series)
HEPA Type Filter
(EC-S5170)
(Replace type)
Show Green Net Side
How to remove/set the filter.
Fig.40
Lift
6
HEPA Filter (EC-T5180 series) can be washed
with running water.
After washing it, please dry completely in the air.
Do not use hair dryer or other heating machine.
