GX-CD1200W
– 5 –
(F1)x3
ø3x10mm
(G1)x3
ø3x10mm
(F1)x3
ø3x10mm
(F2)x2
(F2)x1
CD Servo
PWB
Switch PWB
CD Control PWB
(F1)x1
ø3x10mm
CD Mechanism
CD Player Unit
(H3)x4
ø3x10mm
(H1)x5
ø4x16mm
Speaker Box
Main Unit
Speaker
Release
Lever
Speaker Cord
Holder
Speaker
Cord
Driver
Woofer
Tweeter
Front Panel
(H2)x1

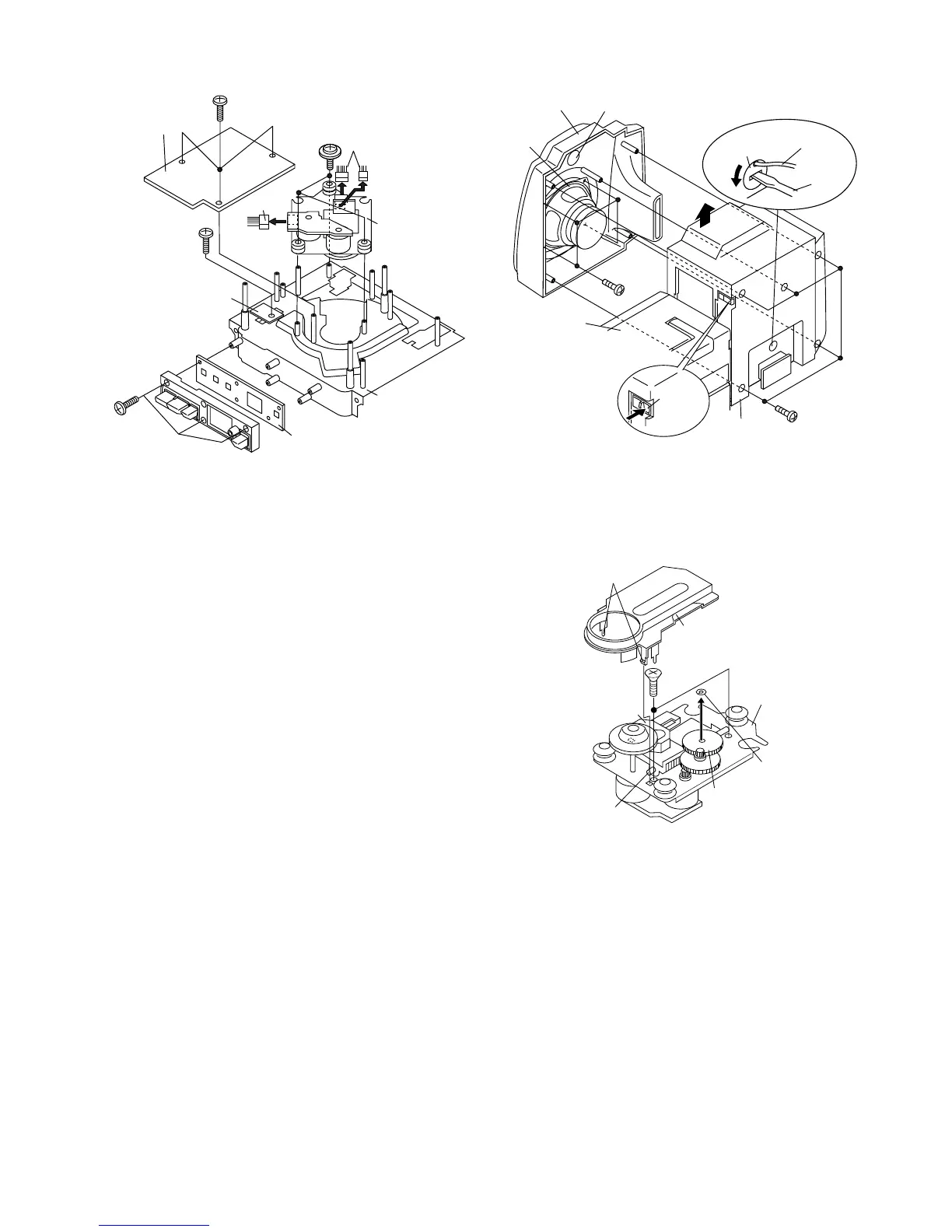

Figure 5-1
Figure 5-2
CD MECHANISM SECTION
Perform steps 1,2,6 and 7 of the disassembly method to
remove the CD mechanism.
How to remove the pickup (See Fig. 5-3.)
1. Remove the hooks (A1) x 2 pcs., to remove the CD
Mechanism Cover (A2) x1 pc.
2. Remove the screws (A3) x 2 pcs., to remove the shaft (A4)
x1 pc.
3. Remove the stop washer (A5) x1 pc., to remove the gear
(A6) x 1 pc.
4. Remove the pickup.
REMOVING AND REINSTALLING THE MAIN PARTS
Figure 5-3
Note : (Figure 5-1 and Figure 5-3)
After removing the connector for the optical pick-up from
the connector, wrap the conductive aluminium foil around
the front end of connector to protect the optical pick-up from
electrostatic damage.
Stop
Washer
(A5) x1
CD
Mechanism
Gear
(A6) x1
Shaft
(A4) x1
Pickup
(A3) x2
ø2.6 x6mm
(A1)x2
(A2)x1
To Next Page
