GX-CD30/30C/130/130C
UNIT
1 Front Cabinet 1. Screw....................(A1) x7 4-1
2. Socket...................(A2) x1
3. Flat Cable .............(A3) x1
2 Top Cabinet 1. Open the CD lid.
(with CD Block) 2. Screw....................(B1) x5 4-2
3. Flat Cable ............. (B2) x2 4-2, 4-3
4. Tip .........................(B3) x1 4-2
3 Tuner PWB 1. Screw................... (C1) x3 4-3
(with Tuner Frame) 2. Flat Cable .............(C2) x1
4 Main PWB 1. Screw................... (D1) x1 4-3
2. Knob .................... (D2) x2
3. Flat Cable .............(D3) x1
5 Deck PWB 1. Screw....................(E1) x3 4-3
2. Socket...................(E2) x3
6 Tape Mechanism 1. Open the cassette holder.
2. Screw.................... (F1) x6 5-1
7 Display PWB 1. Screw................... (G1) x2 5-2
(with CD control 2. Hook .................... (G2) x3
Button) 3. Flat Cable ............ (G3) x1 4-2
8 Switch PWB 1. Screw................... (H1) x1 5-2
9 CD Servo PWB 1. Screw.................... (J1) x3 5-2
2. Socket................... (J2) x3
10 CD Mechanism 1. Screw....................(K1) x3 5-3
11 Power PWB/ 1. Open the battery lid.
Terminal PWB 2. Screw.................... (L1) x4 5-4
3. Hook ..................... (L2) x1
SPEAKER
1 Front Panel 1. Screw ...................(A1) x4 5-5

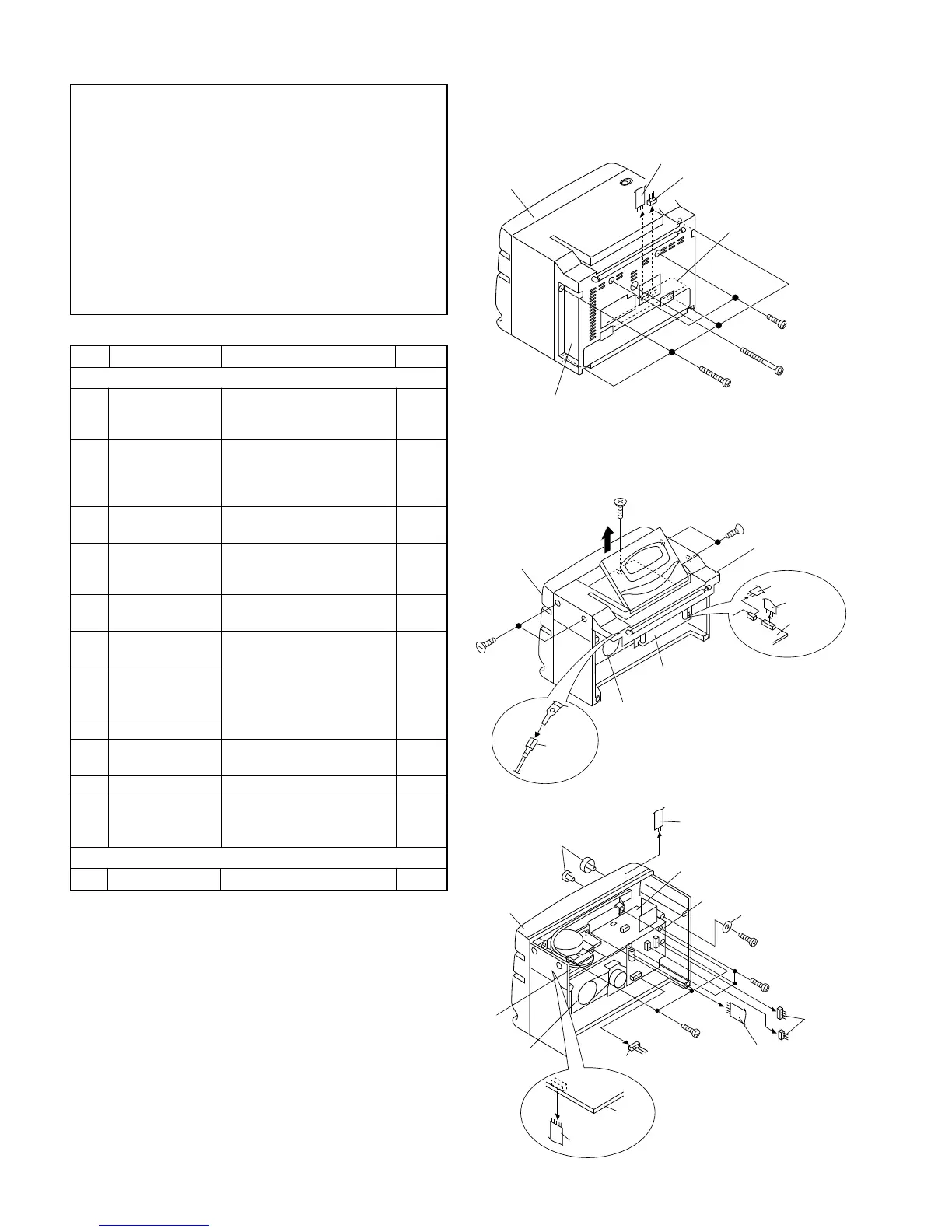

DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling the
unit and reassembling it, to keep it safe and ensure excellent
performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need be
removed when disassembling the unit. After servicing the
unit, be sure to rearrange the leads where they were
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
STEP REMOVAL PROCEDURE FIGURE
– 4 –
Figure 4-2
Figure 4-1
Figure 4-3
( A1 ) x2
ø3 x12mm
( A2 ) x1
( A3 ) x1
( A1 ) x4
ø3 x20mm
( A1 ) x1
ø3 x65mm
Rear
Cabinet
Power PWB
Front
Cabinet
( B1 ) x2
ø3 x10mm
( B1 ) x2
ø3 x10mm
( B1 ) x1
ø3 x8mm
OPEN
Top Cabinet
Tape
Mechanism
CD Servo PWB
Front
Cabinet
( B2 ) x1
( G3 ) x1
CD Servo
PWB
( B3 ) x1
( E1 ) x3
ø3 x10mm
( D1 ) x1
ø3 x10mm
( C1 ) x3
ø3 x10mm
( E2 ) x1
( B2 ) x1
( E2 ) x2
( D3 ) x1
( D2 ) x2
Front
Cabinet
Tape
Mechanism
Tuner
PWB
Main PWB
Washer
Deck
PWB
Tuner
PWB
( C2 ) x1
