Preparation for Use
Speaker preparation (continued)
Caution:
z Be very careful to prevent the speaker [2.15 kg (4.74 lbs.)]
from falling when mounting on the wall.
z Before mounting, check the wall strength. (Do not put on the
veneer plaster or whitewashed wall. The speaker may fall.) If
unsure, consult a qualified service technician.
z Mounting screws are not supplied. Use appropriate ones.
z Check all wall mount angle screws for looseness.
z Select a good location. If not, accidents may occur or the
speaker may get damaged.
z SHARP is not responsible for accidents resulting from
improper installation.
 Driving screws
SHARP designed the speakers so you may hang them on the
wall. Use proper screws (not supplied). See below for size and
type.
 Wall mount angle fixed to the wall
(Horizontal position)
continued to the next page

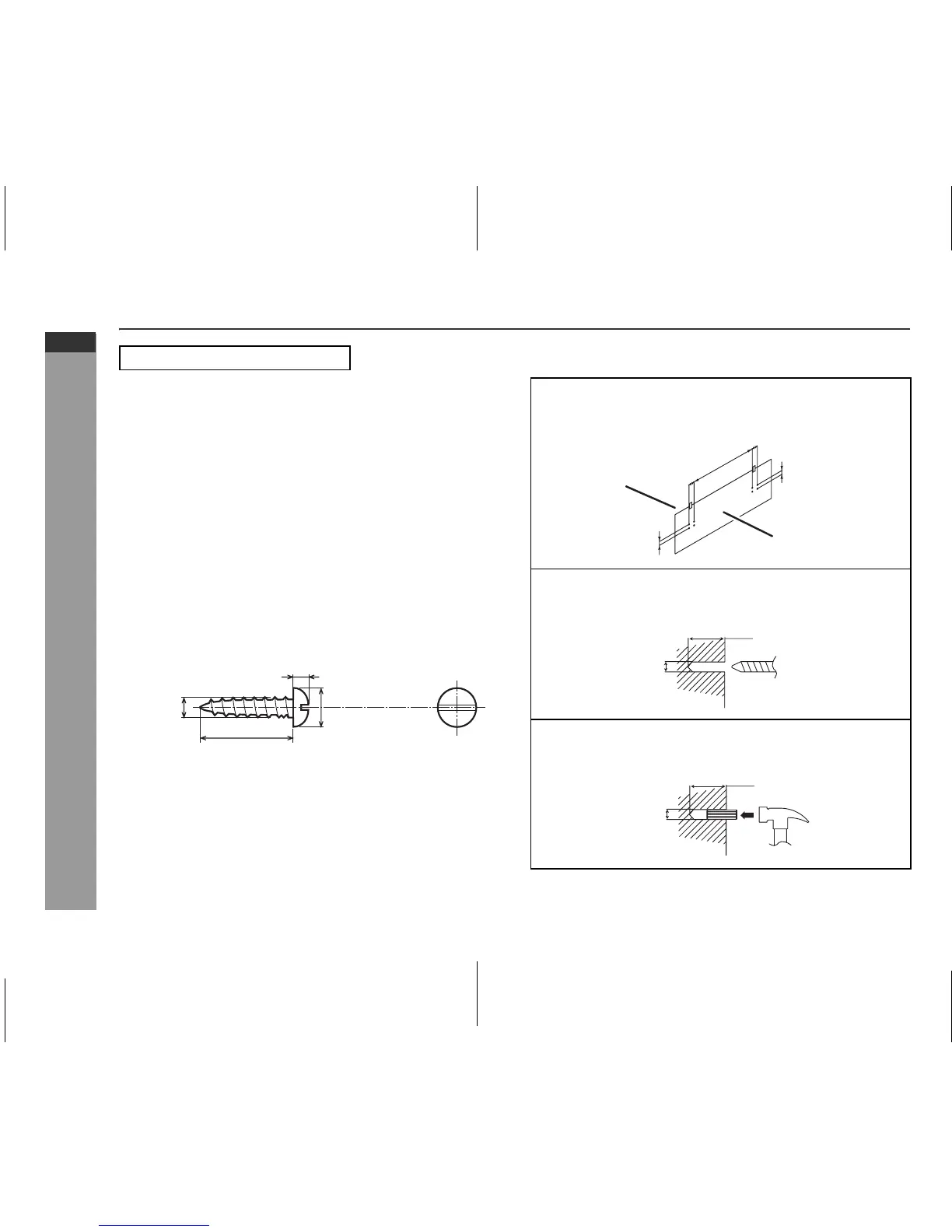

To mount the speaker on the wall.
3.2 mm (1/8")
9 mm (3/8")
Min. 22 mm (7/8")
5 mm
(3/16")
1 Fix the pattern paper to the wall in horizontal position
as below.
2 Make a hole on the wall following the screw point
marks on the pattern paper by using a drill.
3 Fix a wall mount plug into the hole using a hammer,
until it is flush with the wall surface.
29 mm
29 mm
44 mm
44 mm
509 mm
Pattern paper
Wall surface
Wall surface
8 - 9 mm (3/8")
32 mm (1 - 1/4")
Wall surface
8 - 9 mm (3/8")
32 mm (1 - 1/4")
