Sharp HT-X1 - Page 10

HT-X1
3 – 3
(A1)x6
M4x16mm
(A1)x3
M3x12mm
Subwoofer Box
Rear Cabinet
1 Rear Cabinet 1. Screw ...................... (A1) x9
2 1. Screw ...................... (B1) x7
.................... (B2) x1
2. Socket
3.
It pulls out to the front.
3 Power1 PWB
1. Screw ...................... (C1) x6
2. Socket ...................... (C2) x7
4 Amp./Power2
PWB
1. Screw .................... (D1) x13
2. Bracket ................... (D2) x 2
3. Socket ..................... (D3) x1
STEP

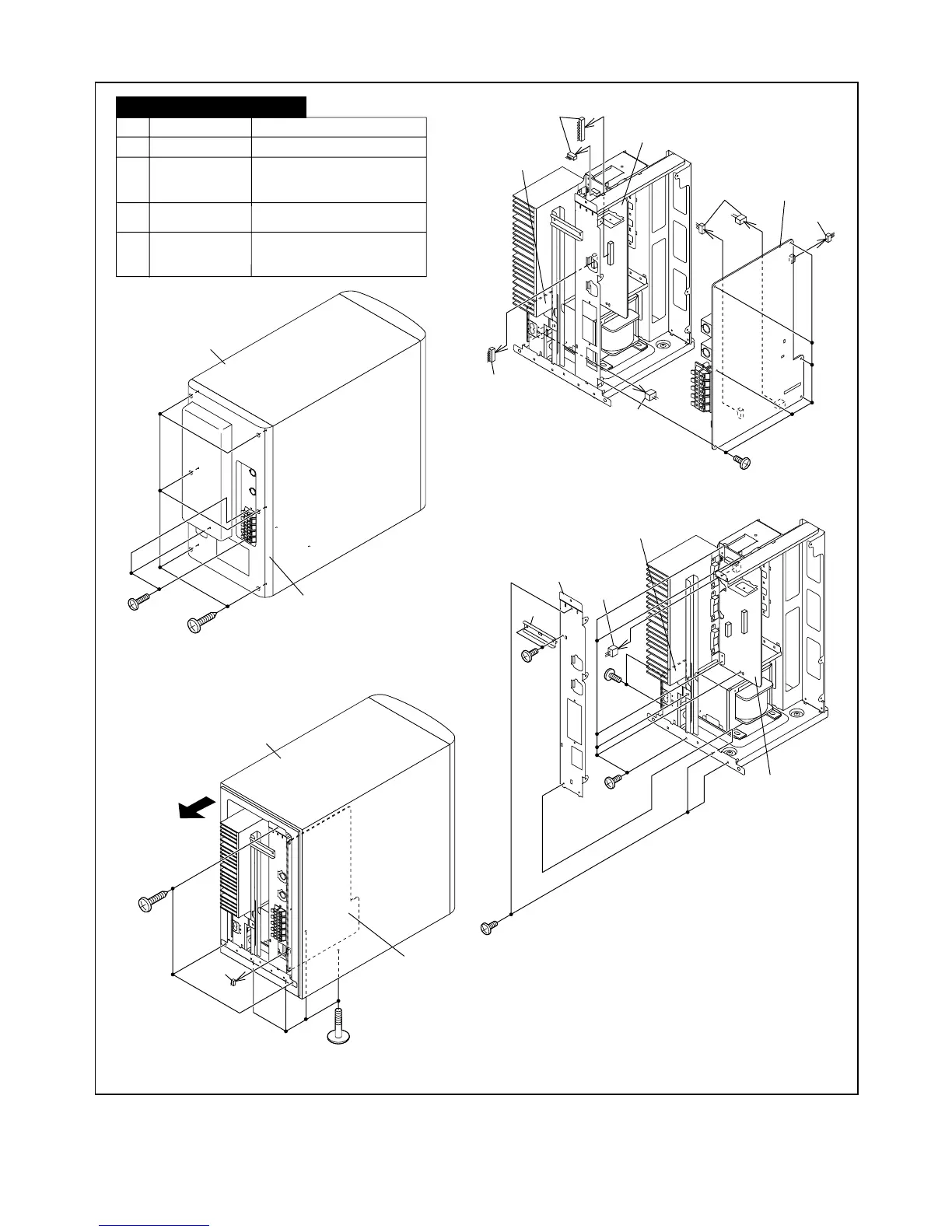

REMOVAL PROCEDURE
HT-X1 (Subwoofer Unit)
Amp. Unit
(B2)x1
Power1 PWB
(B1)x3
M4x16mm
(B1)x4
M4x28mm
Suboofer Box
(C2 )x1
(C2 )x1
(C2)x1
Amp. PWB
Power1 PWB
Power2 PWB
(C1)x6
M3x6mm
(C2)x2
(C2)x2
(D3)x1
(D1)x3
M3x6mm
(D1)x2
M3x6mm
(D1)x2
M3x6mm
Amp. PWB
Power2 PWB
(D1)x6
M3x6mm
(D2)x1
(D2)x1
