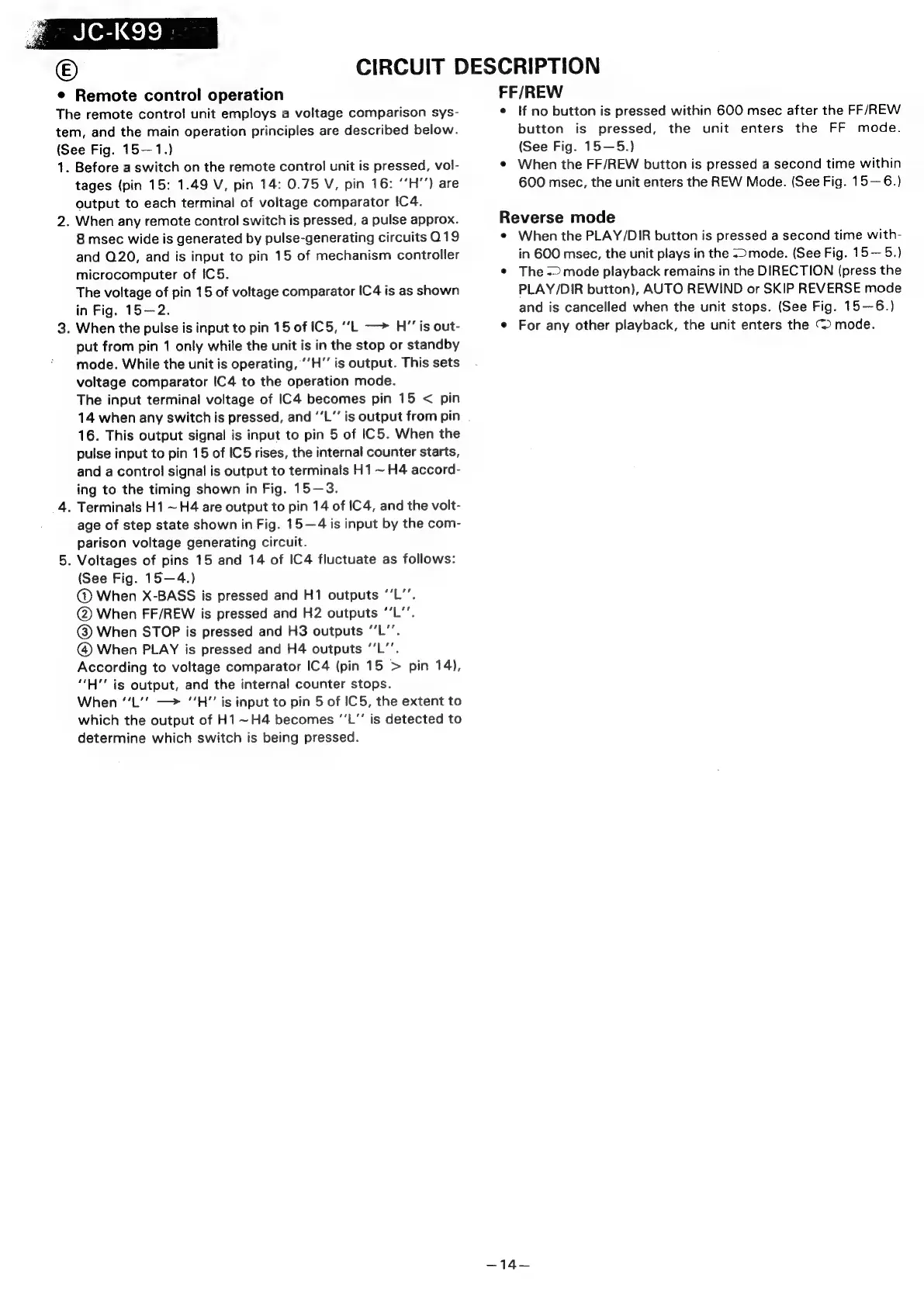

JC-K99
©
CIRCUIT
DESCRIPTION
¢
Remote
control
operation
The
remote
control
unit
employs
a
voltage
comparison
sys-
tem,
and
the
main
operation
principles
are
described
below.
(See
Fig.
15—1.)
1.
Before
a
switch
on
the
remote
control
unit
is
pressed,
vol-
tages
(pin
15:
1.49
V,
pin
14:
0.75
V,
pin
16:
‘‘H"’)
are
output
to
each
terminal
of
voltage
comparator
IC4.
2.
When
any
remote
control
switch
is
pressed,
a
pulse
approx.
8
msec
wide
is
generated
by
pulse-generating
circuits
019
and
Q20,
and
is
input
to
pin
15
of
mechanism
controller
microcomputer
of
IC5.
The
voltage
of
pin
15
of
voltage
comparator
IC4
is
as
shown
in
Fig.
15—2.
3.
When
the
pulse
is
input
to
pin
15
of
IC5,
““L
—>
H’"
is
out-
put
from
pin
1
only
while
the
unit
is
in
the
stop
or
standby
mode.
While
the
unit
is
operating,
‘‘H’’
is
output.
This
sets
voltage
comparator
IC4
to
the
operation
mode.
The
input
terminal
voltage
of
IC4
becomes
pin
15
<
pin
14
when
any
switch
is
pressed,
and
‘‘L’’
is
output
from
pin
16.
This
output
signal
is
input
to
pin
5
of
IC5.
When
the
pulse
input
to
pin
15
of
IC5
rises,
the
internal
counter
starts,
and
a
control
signal
is
output
to
terminals
H1
~
H4
accord-
ing
to
the
timing
shown
in
Fig.
15—3.
4.
Terminals
H1
~H4
are
output
to
pin
14
of
IC
4,
and
the
volt-
age
of
step
state
shown
in
Fig.
15—4
is
input
by
the
com-
parison
voltage
generating
circuit.
5.
Voltages
of
pins
15
and
14
of
IC4
fluctuate
as
follows:
(See
Fig.
15—4.)
@
When
X-BASS
is
pressed
and
H1
outputs
‘’L’’.
@
When
FF/REW
is
pressed
and
H2
outputs
‘’L’’.
@
When
STOP
is
pressed
and
H3
outputs
“’L’’.
(4)
When
PLAY
is
pressed
and
H4
outputs
‘‘L’’.
According
to
voltage
comparator
IC4
(pin
15
>
pin
14),
“H"’
is
output,
and
the
internal
counter
stops.
When
“‘L’’
“'H"’
is
input
to
pin
5
of
IC5,
the
extent
to
which
the
output
of
H1
~H4
becomes
‘‘L"’
is
detected
to
determine
which
switch
is
being
pressed.
FF/REW
e
If
no
button
is
pressed
within
600
msec
after
the
FF/REW
button
is
pressed,
the
unit
enters
the
FF
mode.
(See
Fig.
15—5.)
e
When
the
FF/REW
button
is
pressed
a
second
time
within
600
msec,
the
unit
enters
the
REW
Mode.
(See
Fig.
15-6.)
Reverse
mode
e
When
the
PLAY/DIR
button
is
pressed
a
second
time
with-
in
600
msec,
the
unit
plays
in
the
>mode.
(See
Fig.
15—5.)
e
The
mode
playback
remains
in
the
DIRECTION
(press
the
PLAY/DIR
button),
AUTO
REWIND
or
SKIP
REVERSE
mode
and
is
cancelled
when
the
unit
stops.
(See
Fig.
15—6.)
e
For
any
other
playback,
the
unit
enters
the
mode.
—14—
