Sharp JH-1600E

3. Solar power conditioner specifications
Model JH-1600E
Maximum system voltage 350 V
Rating input voltage (DC) 240 V
Range of operating DC voltage(DC) 60~320 V
Maximum array short circuit current(DC) 10A
Maximum operating current(DC) 8.5A
Nominal output voltage(AC) 230 V
Operating voltage range(AC) 210 – 255 V
Nominal output frequency(AC) 50 Hz
Operating frequency range(AC) 47 – 53 Hz
Maximum continuous output current(AC) 7.6 A
Output over-current protection(AC) 10 A
Maximum continuous output power(AC) 1600 W(DC input 200 – 320 VDC)
Power Factor >0.95 ( more than rated output power1/8 )
Total Current Harmonic Distortion < 5%
Operating temperature range -20 ~ 60 (derating at 40 ~ 60)
Dimensions - without wall mount 440*348*141 mm
Dimensions - with wall mount 440*348*153 mm
inverter weight 13 kg
Shipping weight 18 kg
Main Circuit System
Solar power conditioner system Voltage stiff current control system
Switching system PWM(pulse width modulation)system
Insulation Built-in high frequency insulation
Electric system 1-phase 2-wire system
Protection
Grid-connected protection
Input/Output fuses
AC over/under voltage/frequency, AC over current
Anti-islanding

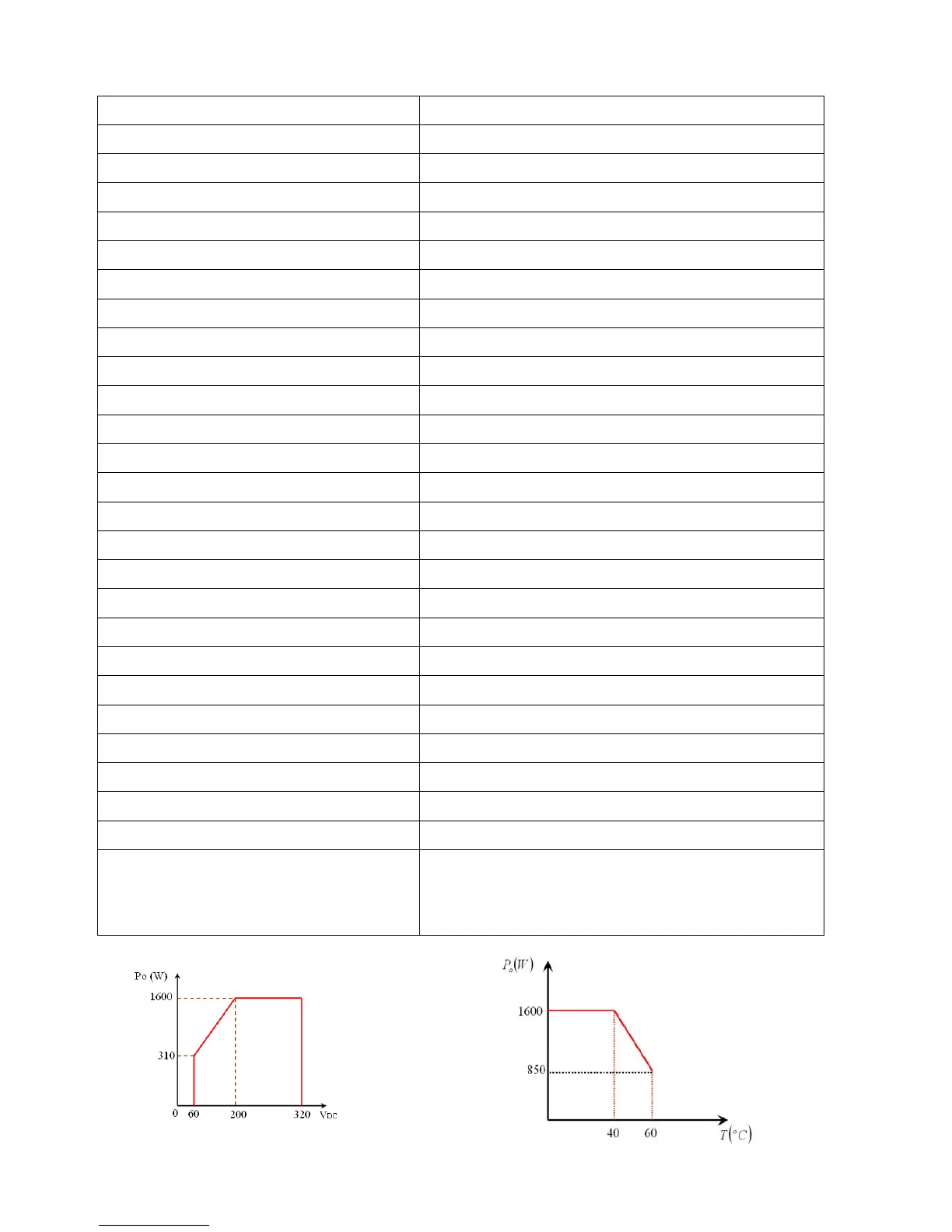

Fig5. Temperature de-rating curve
9
Fig4. Input voltage for output power curve.
