JW Series Computer Link SIO Driver
GP-Pro EX Device/PLC Co
nnection Manual
11
3.2
Setting Example 2

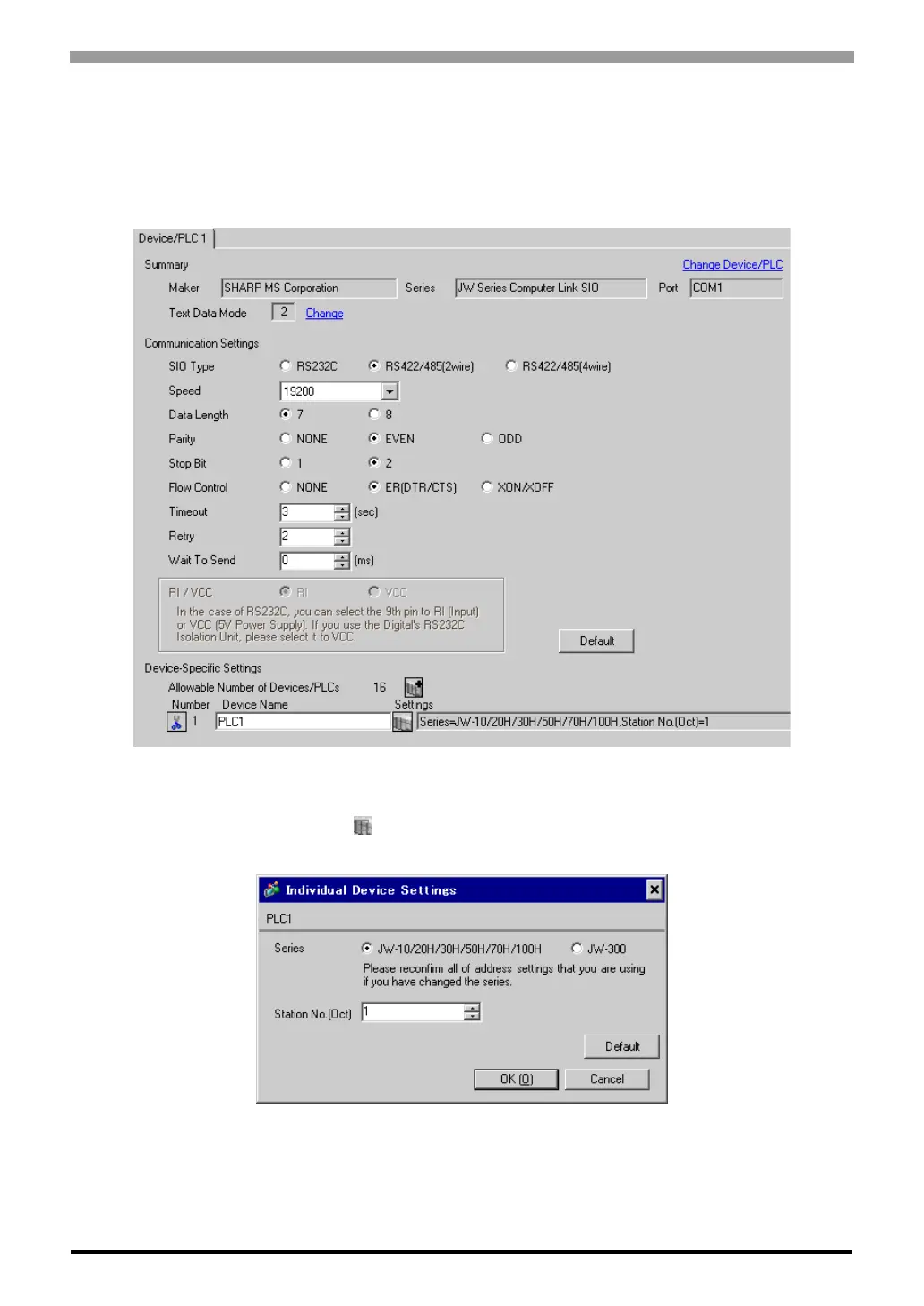

Settings of GP-Pro EX
Communication Settings
T
o display the setting screen, sele
ct [Device/PLC Se
ttings ] from [Syste
m setting window] in workspace.
Device Setting
T
o display the setting screen, click
([Setting]) of the External Device
you want to set from
[Device-Specific
Settings] of [Device/PLC
Settings].
10
12
