EN - 8

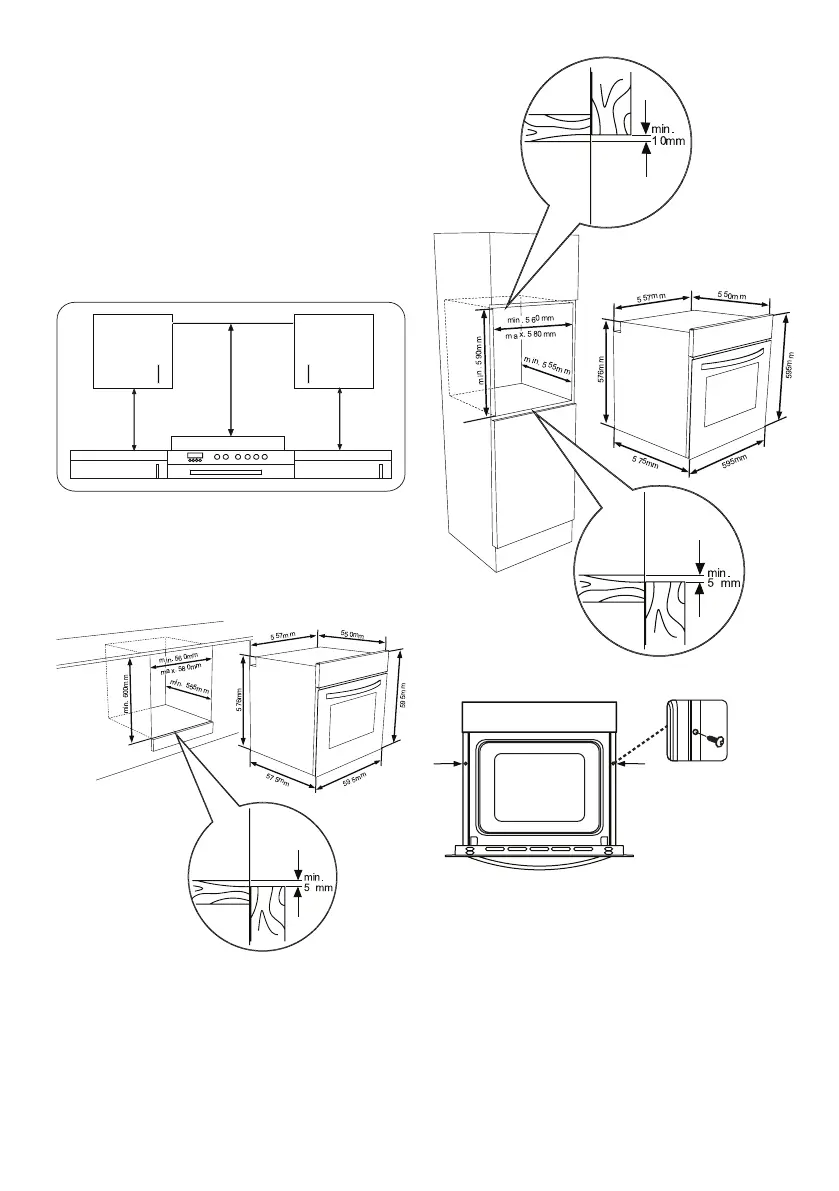

Required changes to wall cabinets and
exhaust fans above the built-in combi-
ned product as well as minimum he-
ights from the oven board are shown in
Figure 1. Accordingly, the exhaust fan
should be at a minimum height of 65 cm
from the hob board. If there is no ex-
haust fan the height should not be less
than 70 cm.
HOB
Minimum
42 cm
Minimum
42 cm
Minimum 65cm
(with hood)
Minimum 70cm
(without hood)
INSTALLATION OF BUILT-IN
OVEN
2 x
Insert the oven into the cabinet by pus-
hing it forward. Open the oven door and
insert 2 screws in the holes located on
the oven frame. While the product fra-
me touches the wooden surface of ca-
binet, tighten the screws.
