32
KB-6014LS
KB-6014LK
KB-6014LW

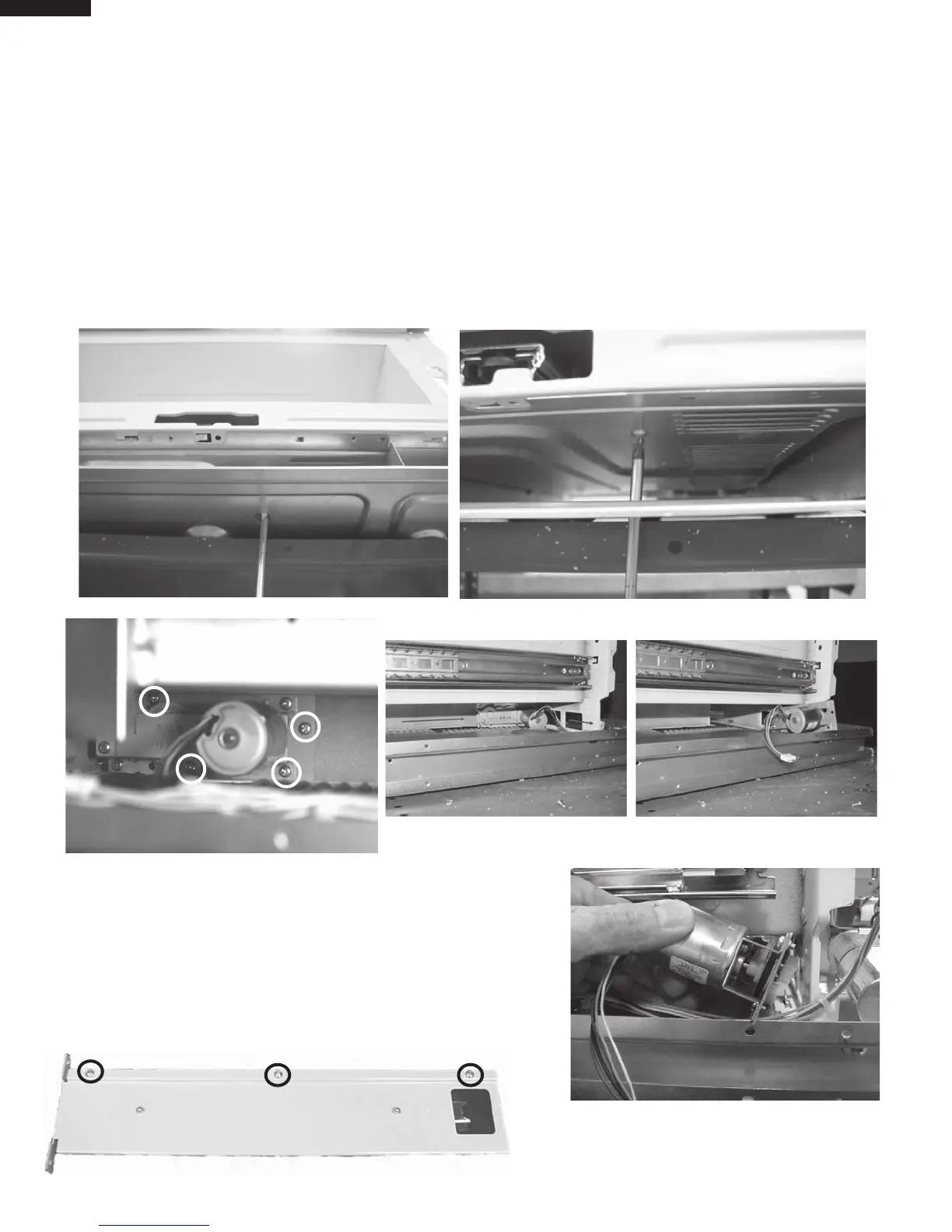

1. Disengage any power going to the unit.
2. Open the drawer and keep it open.
3. Remove the top cover and right side cabinet.
4. Unhook wiring to Auto Drawer Gear.
5. Remove bottom screw below Auto Drawer Gear (Fig. G-1).
6. Remove the (4) screws holding the auto drawer gear to the bottom cavity angle (Fig. G-2).
7. Disengage (pull) Auto Drawer Gear from rack gear and slide to the right (toward the rear), then turn motor 90
0
and slip
out along rear of drawer (Fig. G-3).
8. Then tilt Auto Gear Motor 20
o
to extract the assembly out. The Auto Drawer Gear is now free.
Installation:
1. Proceed in reverse to reinstall the Auto Drawer Gear taking care that the gear teeth are set into the cavity angle correctly
Fig. G-2
RACK GEAR REMOVAL
1. Follow the Microwave Drawer disassembly as previously stated
2. Open the drawer and keep it open.
3. To discharge the high voltage capacitor, wait for 60 seconds.
4. Remove the Microwave Drawer by following steps 1, 2, 5, 8, 9 & 10 as
instructed under "DRAWER ASSEMBLY AND CHOKE REMOVAL".
5. Remove the (3) screws holding the Rack Gear to the bottom slide rail
(Fig. G-5).
7. Proceed in reverse to reinstall the new Rack Gear.
Fig. G-5
Fig. G-1
Fig. G-3
AUTO DRAWER GEAR REMOVAL/INSTALLATION
(This procedure requires a 14" or greater phillips screwdriver)
Fig. G-4
Bottom cover
Base plate
Bottom cover
Slide to back
turn 90
o
Tilt 20
o
