KB-6014LS
KB-6014LK
KB-6014LW
CONTROL PANEL

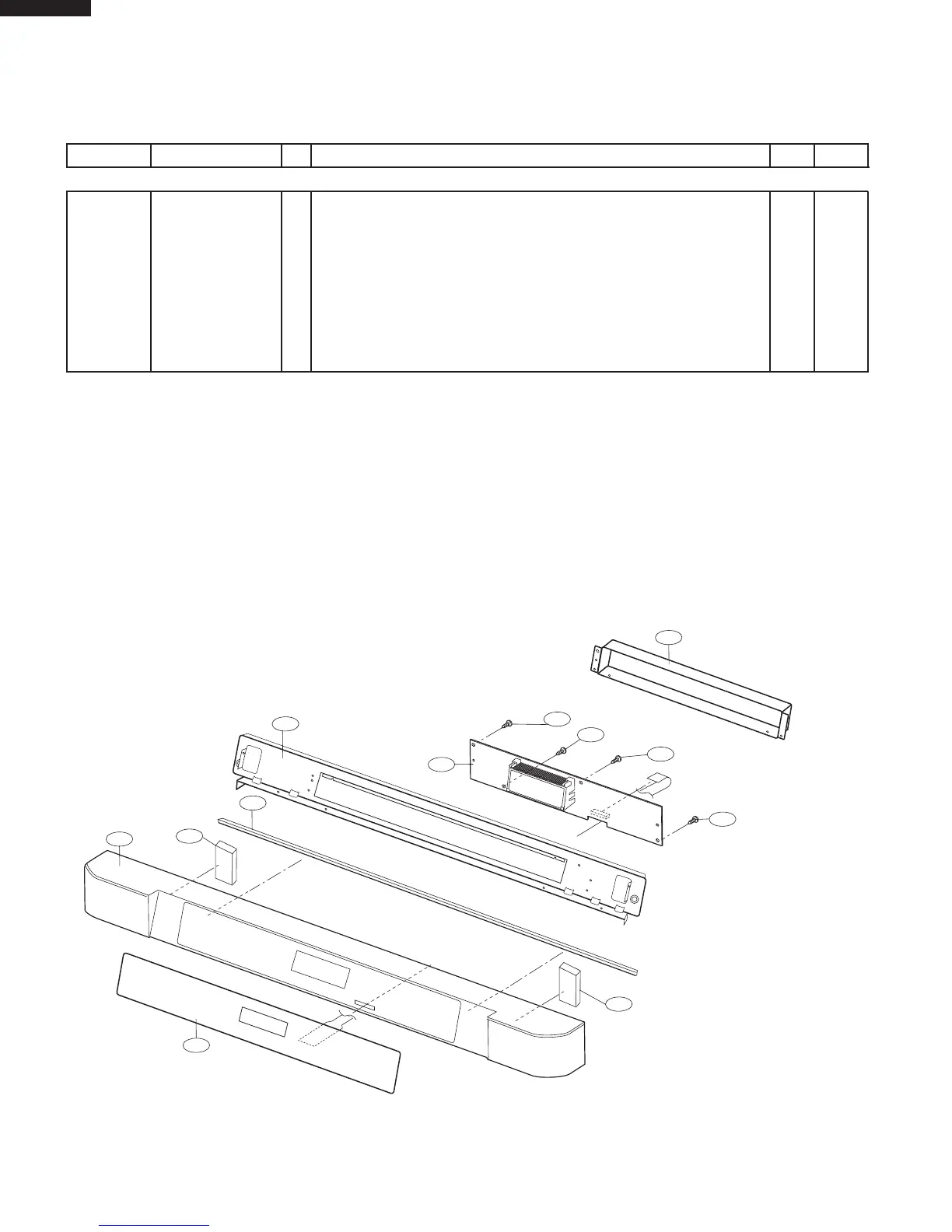

CONTROL PANEL PARTS LIST
Note: The parts marked “∆” may cause undue microwave exposure.
The parts marked “*” are used in voltage more than 250V. "§" MARK: PARTS DELIVERY SECTION
REF. NO. PART NO. § DESCRIPTION Q'TY CODE
1-1 DPWBFB147MRU0 M Control unit 1 BP
1-2 FUNTKB478MRE0 M Key unit [KB6014LS] [KB6014LK] 1 AP
1-2 FUNTKB479MRE0 M Key unit [KB6014LW] 1 AQ
1-3 FPNLCB525MRK0 M C/P frame assy [KB6014LS] 1 AX
1-3 FPNLCB527MRK0 M C/P frame assy [KB6014LK] 1 AX
1-3 FPNLCB528MRK0 M C/P frame assy [KB6014LW] 1 AX
1-4 PCOVPB140MRP0 M C/P cover 1 AM
1-5 PCUSUB106MRP0 M C/P cushion 2 AM
1-6 LANGTB182MRP0 M C/P angle 1 AM
1-7 XEPSD30P10XS0 M Screw 4 AA
1-8 PSEL-B002MRE0 M Moisture seal gasket 1 AN
1-3
1-2
1-1
1-7
1-7
1-7
1-7
1-8
1-4
1-6
1-5
1-5
