26
KB-6524PSY KB-6525PSY

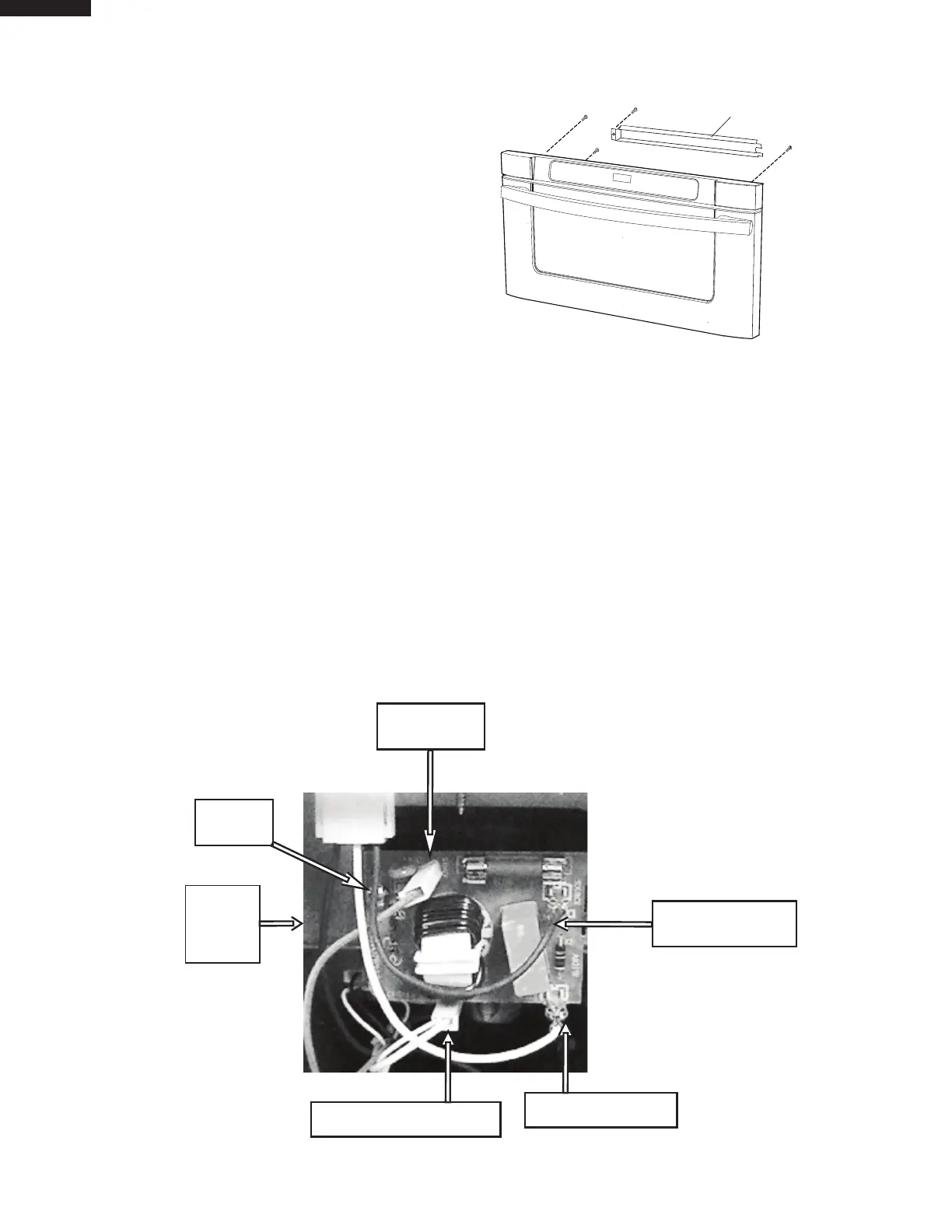

6. To remove the Control Panel Frame Assembly,
remove the (1) screw holding the C/P cover, then unplug
Control panel harness. Remove the (3) screws holding
the Control Panel frame to faceplate (Fig 3).
7. After the Control panel frame is removed, you now have
access to the CPU board.
Fig. 3
NOISE FILTER BOARD REPLACEMENT
1. Un-hook the black and white AC terminals from the Noise Filter PWB, plus the Red and double White terminals
(Fig 4).
2. Remove the (1) screw holding the Noise Filter (Fig 4).
Fig. 4
3. Reverse order to reinstall.
C/P Cover
Noise
Filter
Unit
Red Wire
Double White Wire
White AC Wire
Black AC Wire
Screw
NOTE: THE ABOVE APPLIES TO CONTROL
PANEL FRAME ASSEMBLIES AS
STATED ON PAGE 39.
ALL OTHER CONTROL PANEL FRAME
ASSEMBLIES WILL BE HELD ON BY THE
SIDE ANGLES.
