Sharp LC-13AV6U - REMOVING OF MAJOR PARTS

LC-13AV6U
9

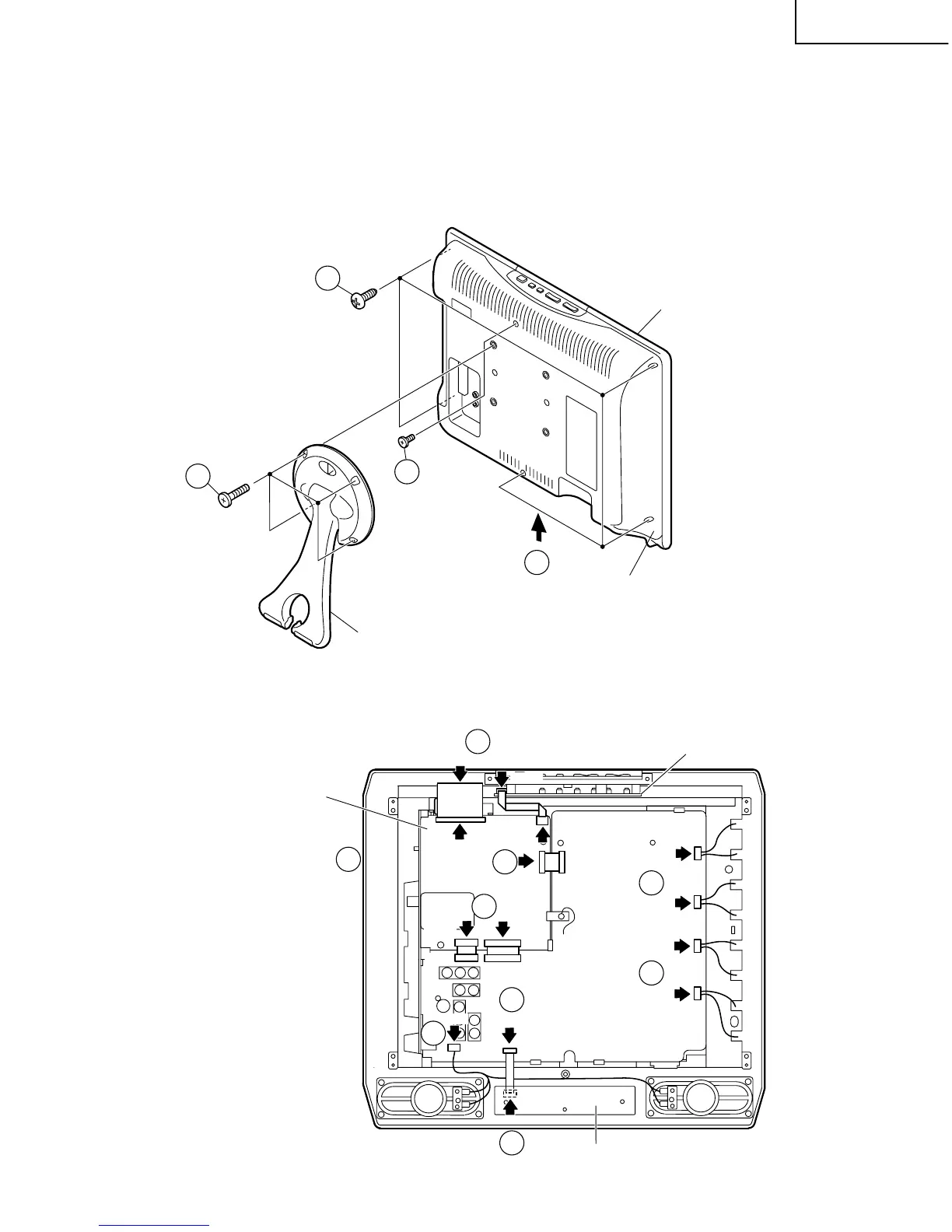

REMOVING OF MAJOR PARTS
1. Remove the stand fixing screws (4 pcs.).
2. Remove the cabinet B fixing screws (6 pcs.).
3. Remove the cabinet B after opening from the direction of an arrow.
4. Detach the connector from each PWB.
Cabinet A
Cabinet B
Stand
3
2
2
1
P6701
P6702
P6703
P6704
SC1701
SC2003
SC1201
P7301
P3902
SC2002
SC2001
P3901
P3301
SC3601
CN1
SC4201
SC4101
4
4
4
4
4
4
4
4
4
Main PWB
Sub PWB
R/C,LED PWB
Operation PWB
