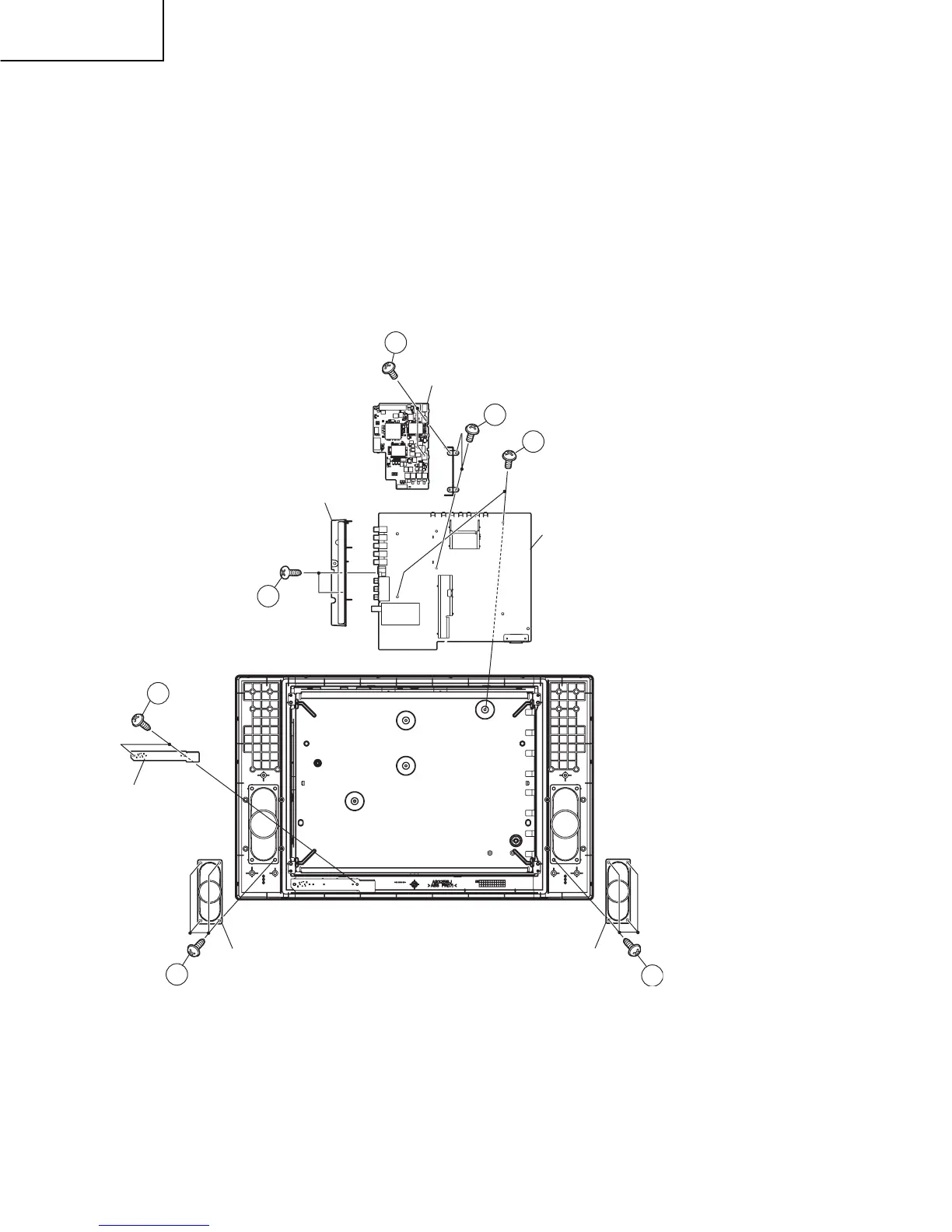

6. Remove the chassis frame fixing screws (2 pcs.).
7. Remove the 2 lock screws from the main PWB. Detach the chassis frame, together with its terminals, from the
main PWB.
8. Remove the 4 lock screws from the sub PWB and the PWB fixing angle. Detach the chassis frame together with its
terminals, from the sub PWB.
9. Remove the LED/HP PWB fixing screws (2 pcs.).
10. Remove the 4 lock screws each from the right and left speakers and take out both the speakers.
Main PWB
Chassis Frame
Sub PWB
LED/HP PWB
10
9
6
10
7
8
8
Speaker (R)
Speaker (L)
