LC-15AV6U

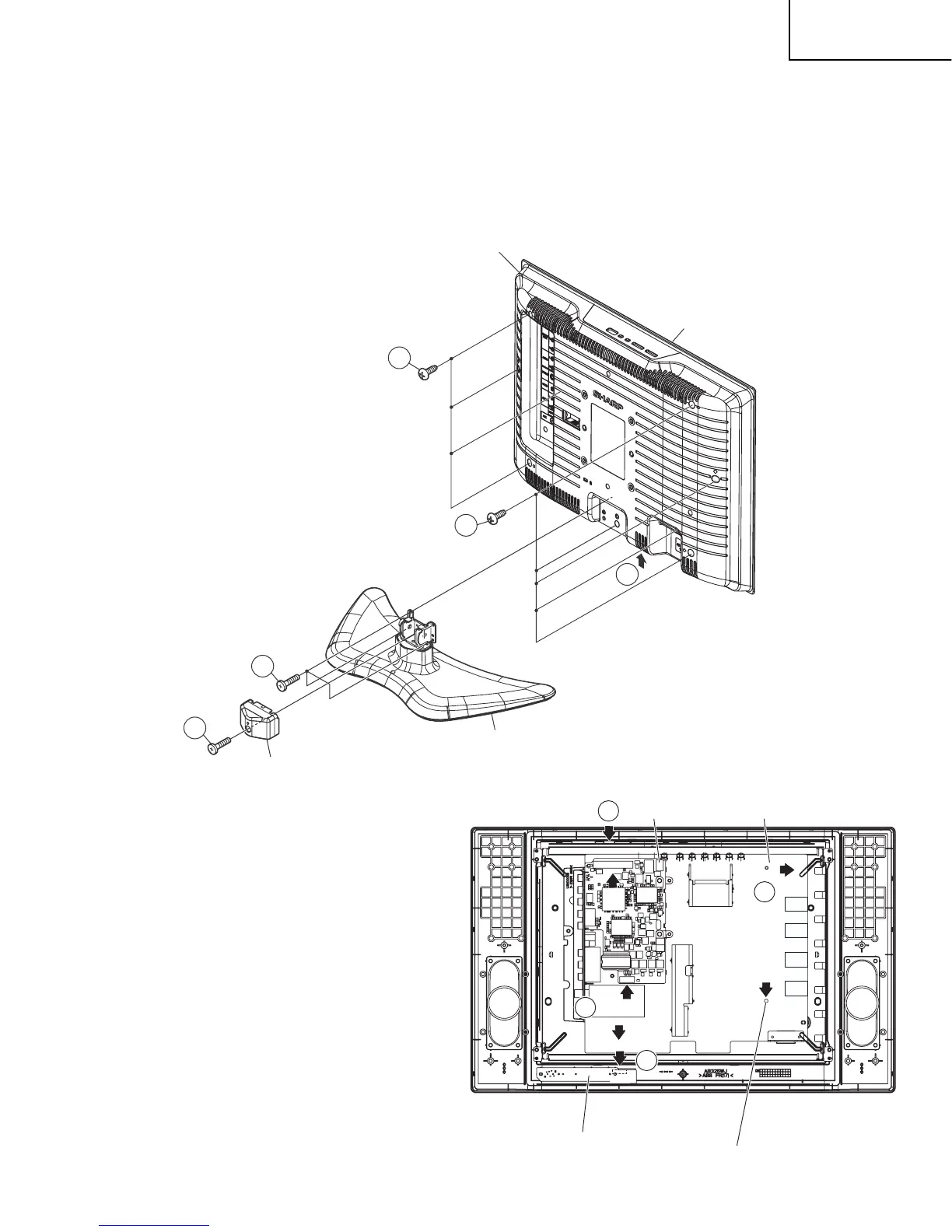

REMOVING OF MAJOR PARTS
1. Remove the stand cover fixing screw (1 pc.).
2. Remove the stand fixing screws (4 pcs.).
3. Remove the cabinet B fixing screws (9 pcs.).
4. Remove the cabinet B after opening from the direction of an arrow.
5. Disconnect all the connectors from all the PWBs.
5
5
5
5
P5005
P5001
SC4000
SC5204
SC1701
Main PWB Sub PWB
LED/HP PWB
PWB HOLDER
Cabinet B
Cabinet A
3
3
4
2
1
Stand
Stand Cover
