LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
30

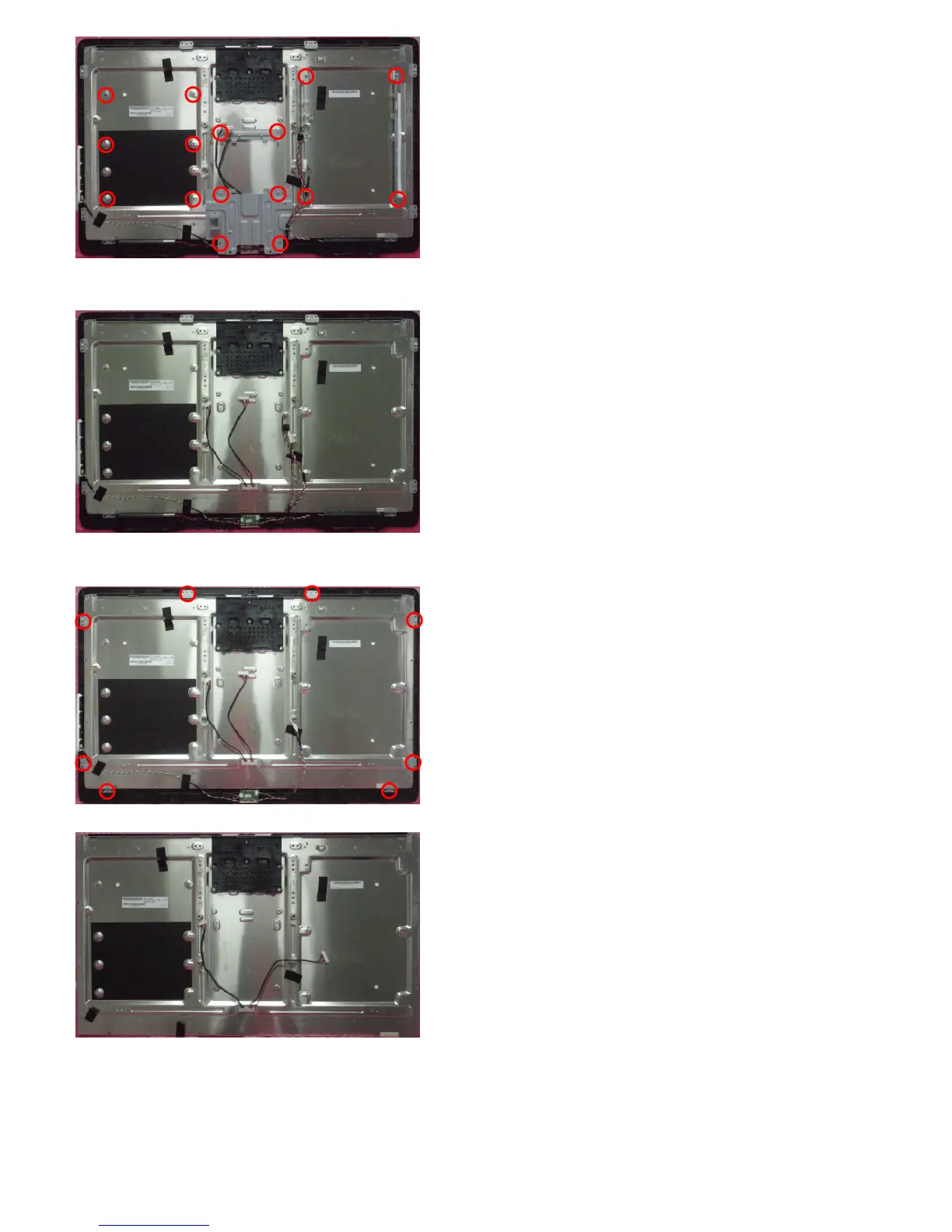

Fig.12
2. Release the speaker cable from its clamp, pull up and remove the speaker as Fig.13.
Fig.13
3. Remove the 8 screws to detach the panel bracket from the bezel.Then take out of the panel from the bezel as Fig.14.
Panel:
Fig.14
Step 5. Remove the IR and Key board.
1. Disconnect 2 cables, then release the clips. Detach the IR board as Fig.15.
