Sharp LC-19S7E-BK User Manual

2008-03-14
LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
13
Fig.4
Step 2. Remove the REAR COVER Assy.

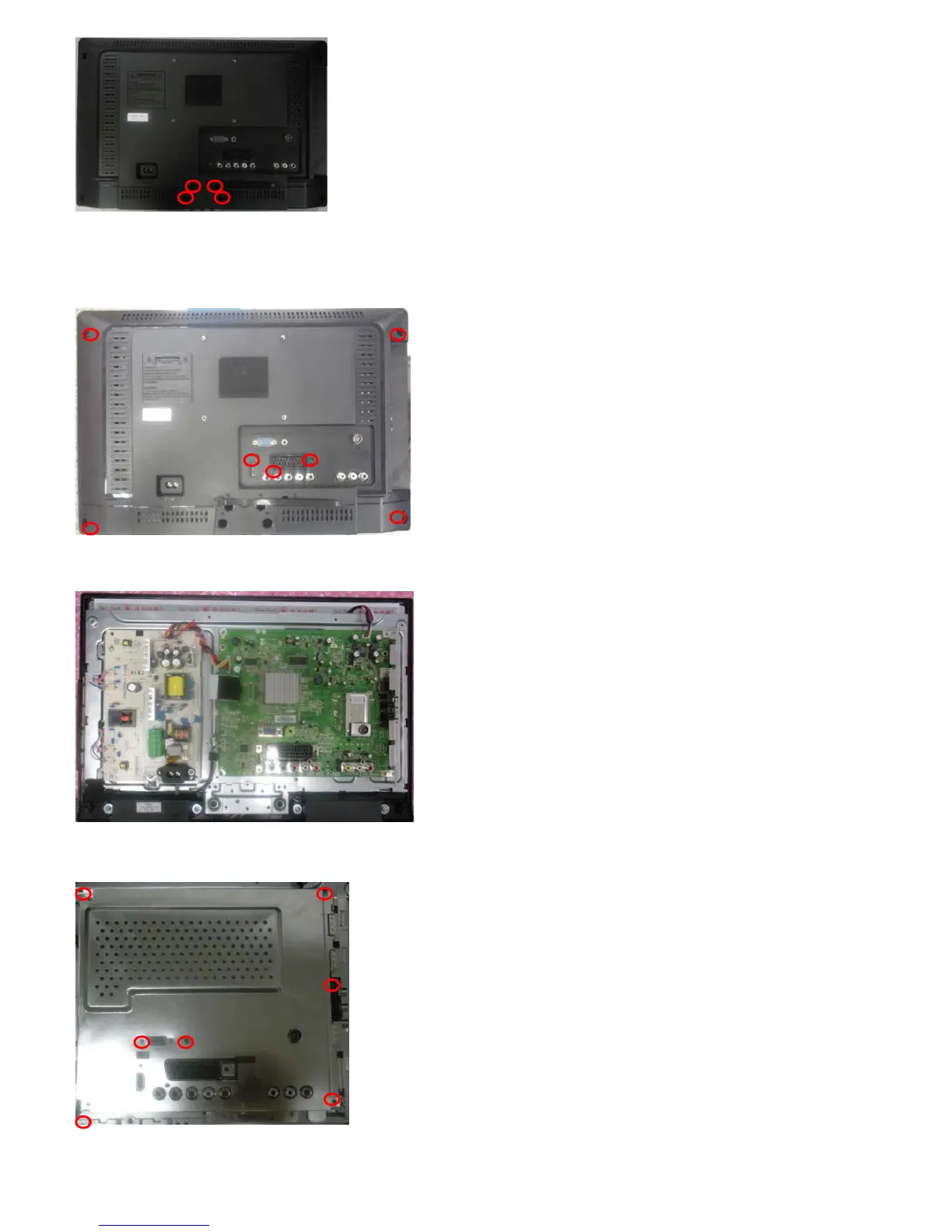

1. Remove the 11 screws. Detach the REAR COVER as Fig.5.
Fig.5
Step 3. Remove the Main, Power, IR, Key board,frame shielding and the Speakers.
Fig.6
1. Remove the 7 screws to move the frame shielding as Fig.7
Fig.7
2. Disconnect 5 cables to move the Scaler board as Fig.8.
