LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
18

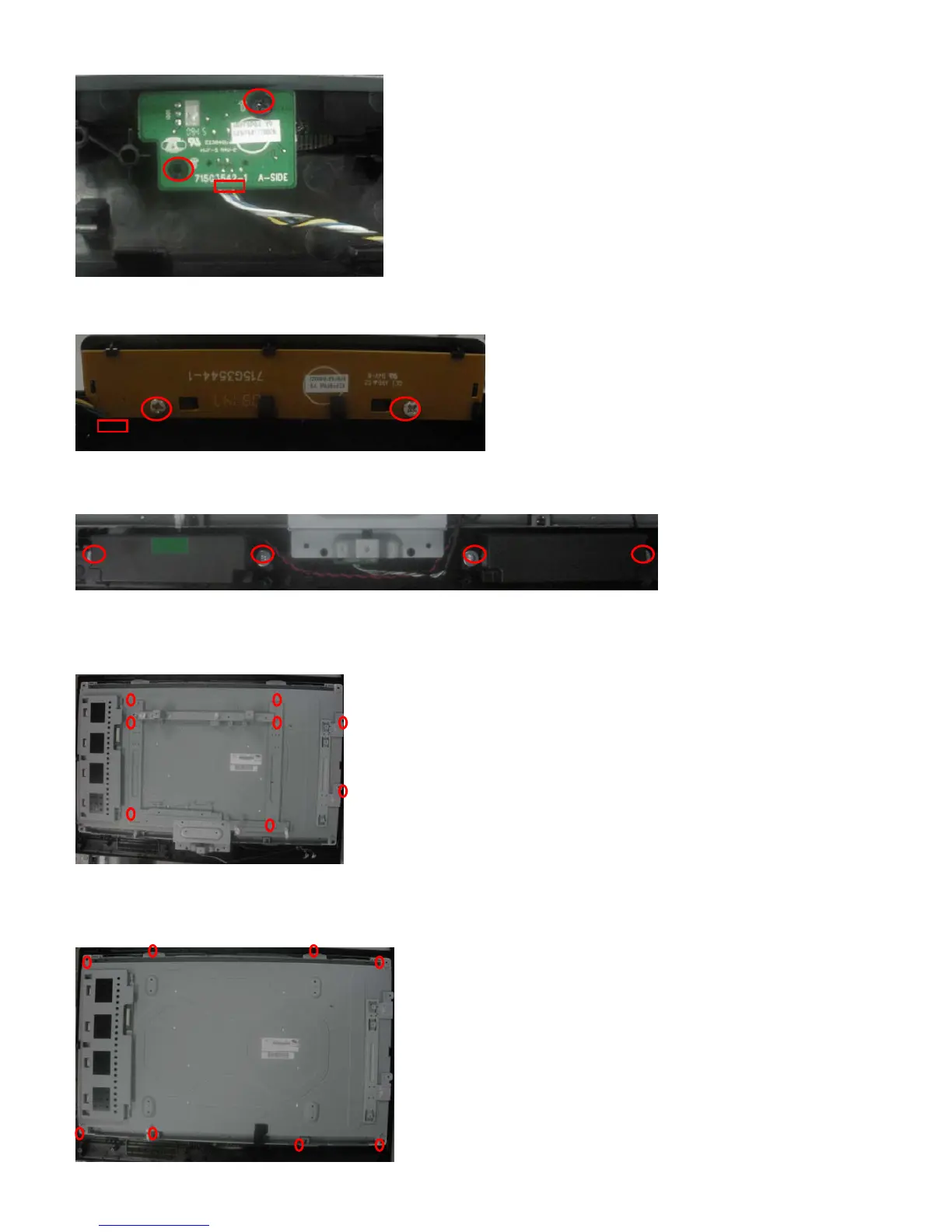

4. Remove the 2 screws and disconnect 1 cable. Detach the IR board as Fig.9.
Fig.9
5. Remove the 2 screws and disconnect 1 cable. Detach the Key board as Fig.10.
Fig.10
6. Remove the 4 screws .Detach the Speakers as Fig.11
Fig.11
Step 4. Remove the Metal Frame.
Remove the 8 screws. Detach the Metal Frame as Fig.12
Fig.12
Step 5. Remove the Bezel Assy.
1. Remove the 8 screws,Detach the Bezel Assy as Fig.13
Fig.13
