LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
59
2.7. U1801 (STMPS2171STR SOT23-5L)

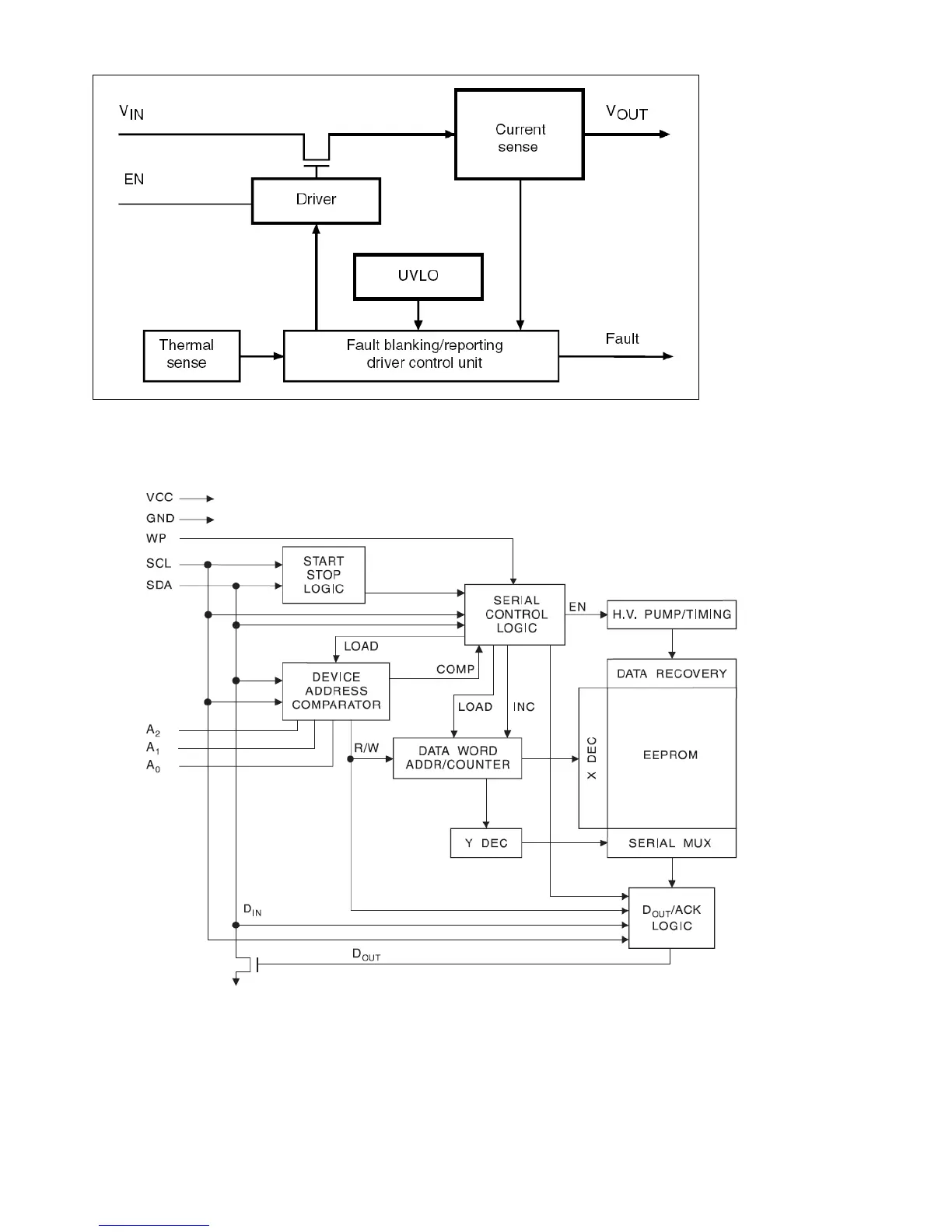

2.7.1 Block Diagram
2.8. U1602,U1401,U1501 (IC AT24C02BN-SH-T 8-SOIC)
2.8.1 Block Diagram
2.9. U4402 (W25X16AVSSIG SO-8 208mil)
