2008-03-14
LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
67

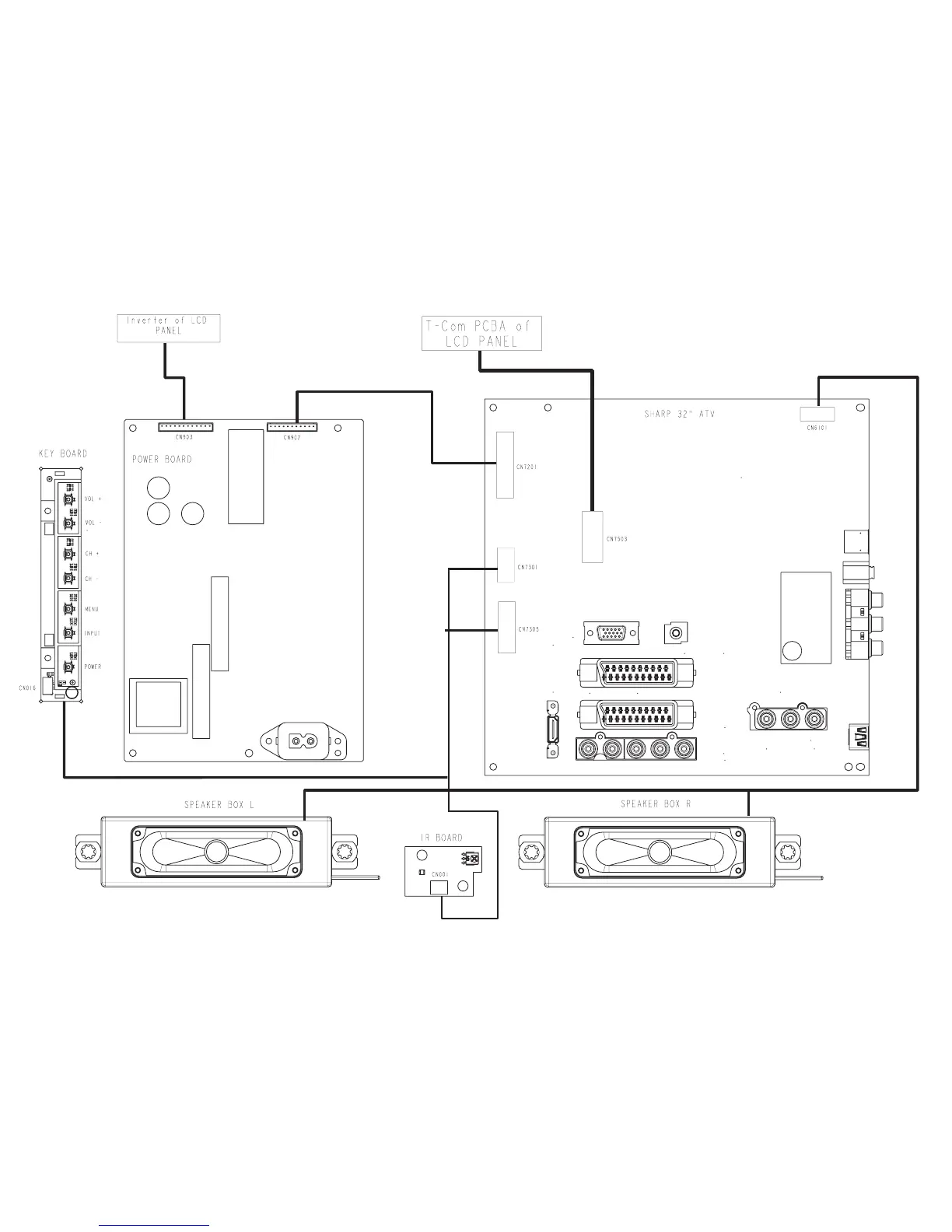

WIRING DIAGRAM（32“）
095G8018 30982 FP
9JR9500000069
HARNESS 30P-15*2P 320mm 75413
095G801411F909
9JR9500000068
HARNESS 7P+4P-5P+4P 340mm+800mm 75415
095G 82513F924
9JR9500000067
HARNESS 13P(SCN) - 12P 250mm 75414
