Sharp LC-19SB14U - Removing Major Parts (LC-19 SB Series); Part Removal Steps for LC-19 SB Series

15
LC-19SK24U/U-W
LC-19SB24U/U-W
LC-19SB14U
LC-19D44U
(LC-19SB24U/LC-19SB24U-W/LC-19SB14U)

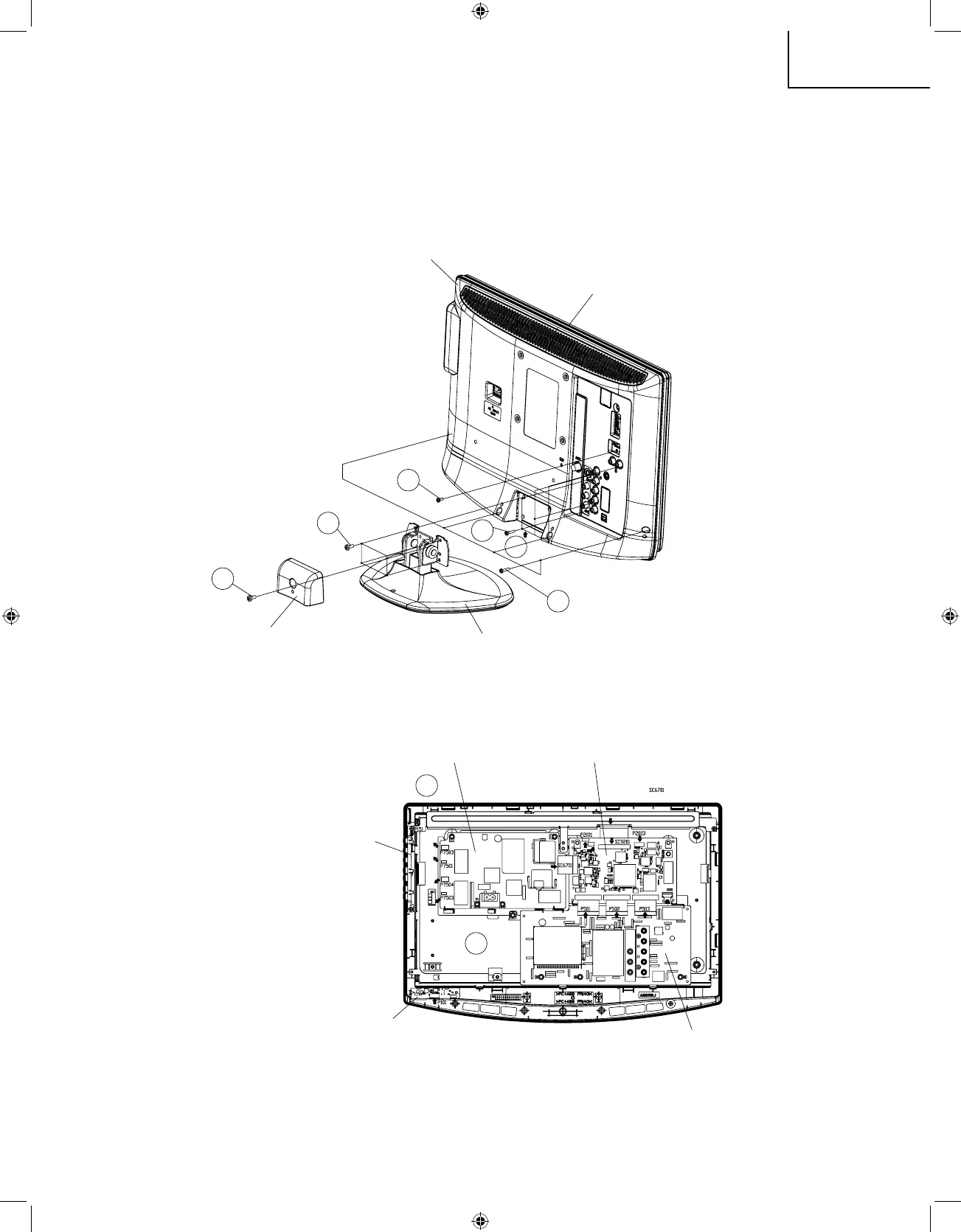

1. Remove the Stand HINGI Cover fixing screw (1 pc.).
2. Remove the stand fixing screws (4 pcs.).
3. Remove the cabinet B fixing screws (10 pcs.).
4. Remove the cabinet B after opening from the direction of an arrow.
5. Disconnect all the connectors from all the PWBs.
Cabinet B
Cabinet A
3
2
1
5
5
3
3
4
Stand HINJI Cover
Stand
Inverter PWB
Main PWB
BTN PWB
LED PWB
Sub PWB
