18
LC-19SK24U/U-W
LC-19SB24U/U-W
LC-19SB14U
LC-19D44U
ADJUSTING PROCEDURE OF EACH SECTION
The adjustment values are set to the optimum conditions at the factory before shipping .If a value should become
improper or an adjustment is required due to part replacement, make an adjustment according to the following
procedure.
1. After replacement of the any PWB and/or IC for repair, please note the following
1.1
When replacing the unit DUNTKE367MF01, make sure to prepare the new unit loaded with updated software.
1.2 Special Equipment
1.2.1 Renesas E8, the SUB microprocessor software Writer
1.2.2 Renesas M3A-2925G01, the MAIN microprocessor software Writer
1.2.3 Sophia systems DTV EJ-Writer, the MPEG Module software Writer

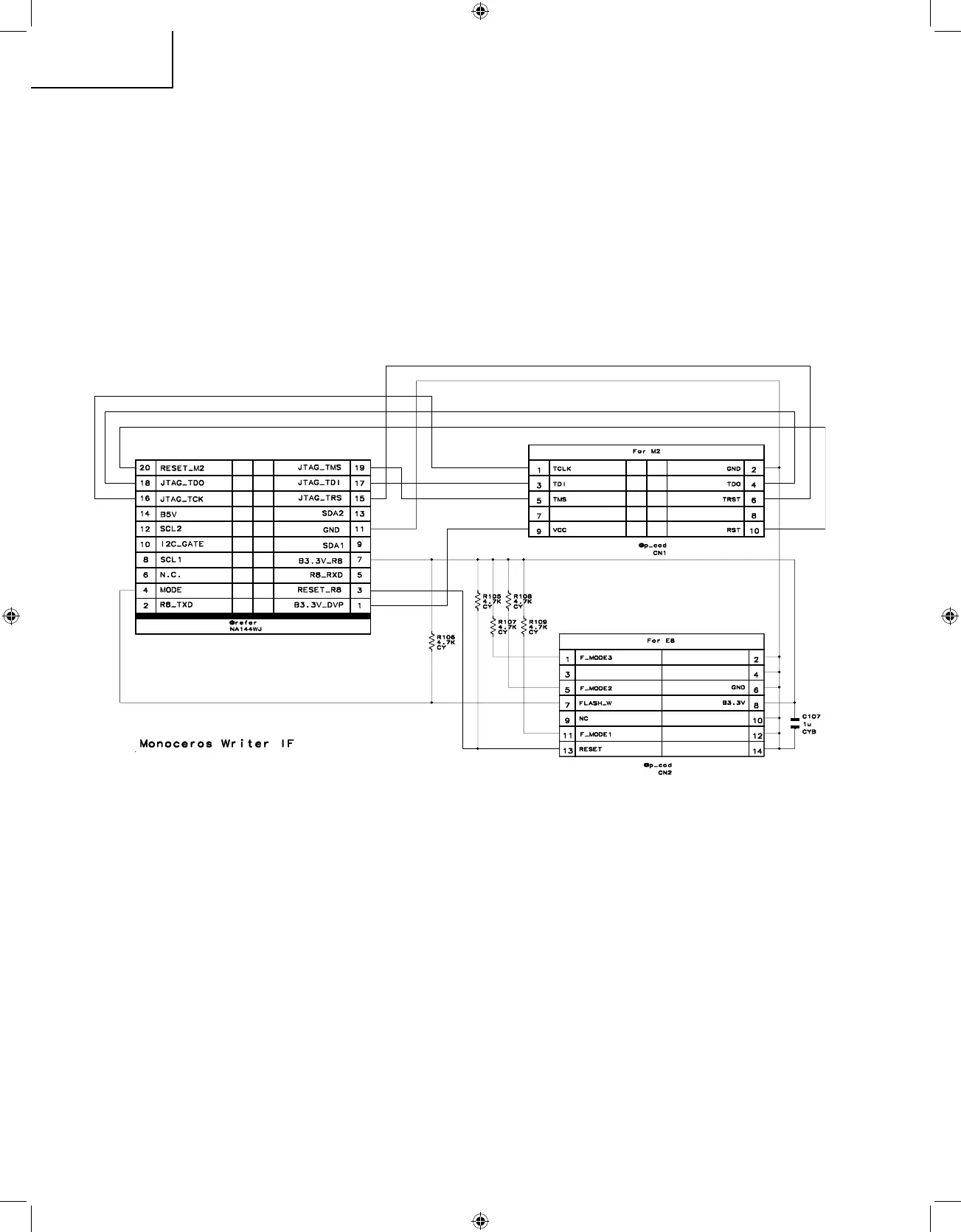

1.2.4 Convertor 1, please refer to following schematic and make one.
1.2.5 Convertor 2, please refer to following instruction and make one.
DTV EJ Writer (SH2/SH3) TUNER port
1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1
2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
4 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
5 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
6 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
7 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
8 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
9 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
10 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
11 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
12 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
19K24U P18-57.indd 18 2007-8-15 15:30:31
