Sharp LC-19SK24U

21
LC-19SK24U/U-W
LC-19SB24U/U-W
LC-19SB14U
LC-19D44U

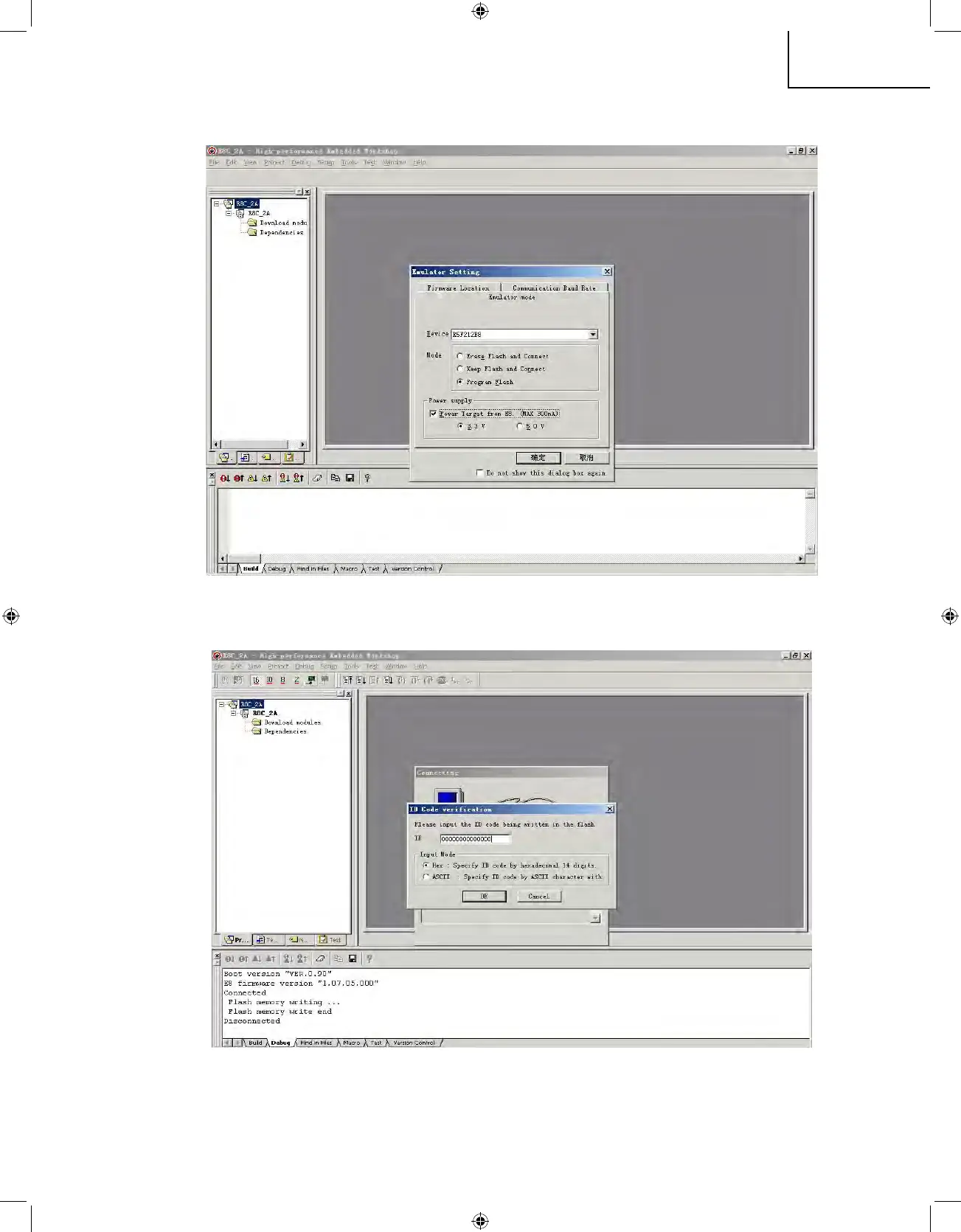

7). Then enter “Emulator settings”, the Device is R5F212B8, mode is “program flash”. please choose “Power
Target from E8(MAX 300mA)” and select 3.3V, and choose OK.
8). connecting start, after connected it will enquire a ID CODE, input all zero (0000000000000000).
19K24U P18-57.indd 21 2007-8-21 13:25:52
