9
LC-20B4M

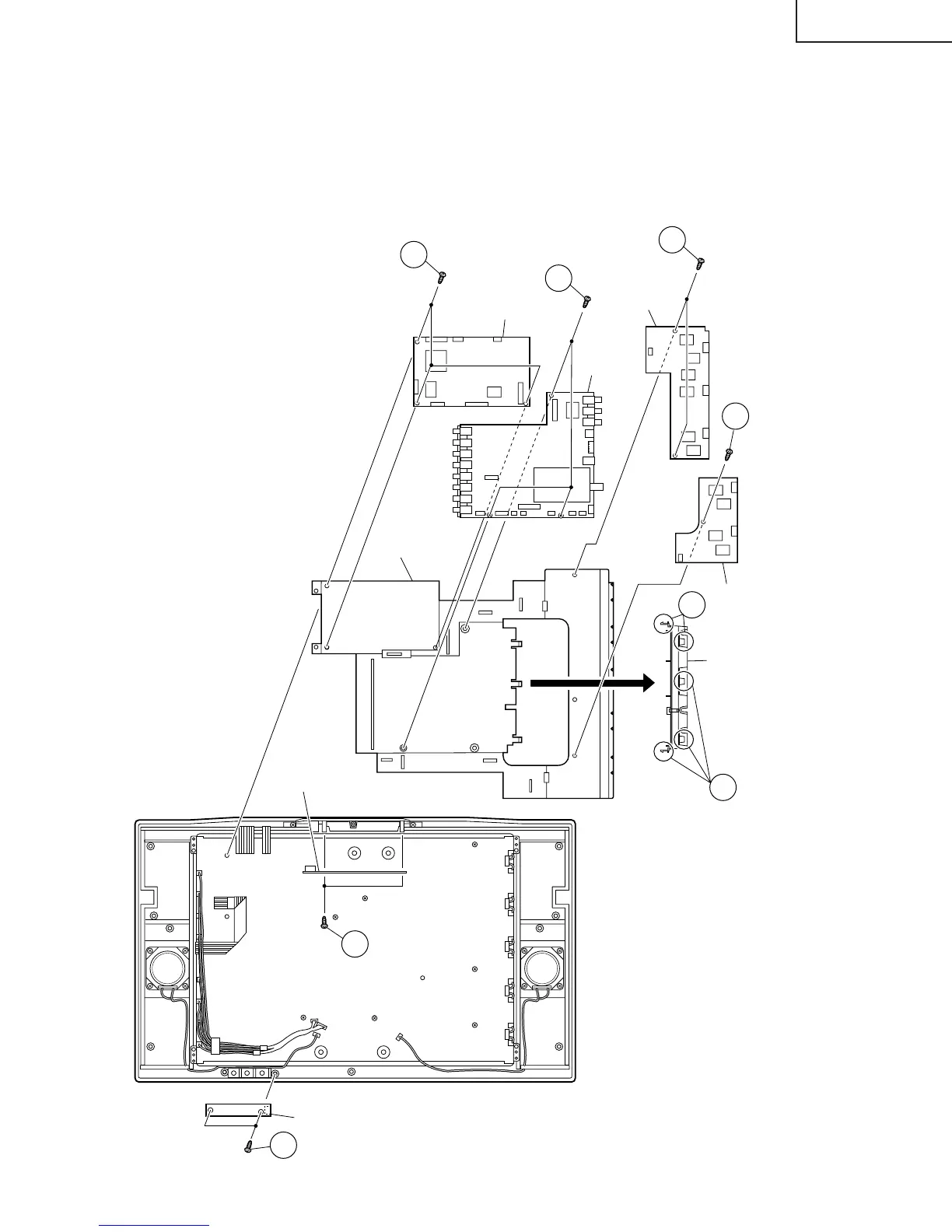

9. Remove the inverter-A PWB fixing screws (2 pcs.).
10. Remove the inverter-B PWB fixing screw (1 pc.).
11. Remove the main PWB fixing screws (3 pcs.).
12. Remove the tuner PWB fixing screws (3 pcs.) and detach the chassis frame cover fixing hooks.
13. Remove the R/C, LED PWB fixing screws (2 pcs.).
14. Remove the operation PWB fixing screws (2 pcs.).
12
9
10
Inverter-A
PWB
Main PWB
Chassis Frame
Chassis Frame Cover
Tuner
PWB
Inverter-B
PWB
Operation PWB
14
13
R/C, LED PWB
11
12
12
