22. FDC604P
22.1. General Description
This P-Channel 1.8V specified MOSFET uses Fairchild’s low voltage PowerTrench process. It has been
optimized for battery power management applications.
22.2. Features
 –5.5 A, –20 V. RDS(ON) = 33 mΩ @ VGS = –4.5 V
 RDS(ON) = 43 mΩ @ VGS = –2.5 V
 RDS(ON) = 60 mΩ @ VGS = –1.8 V
 Fast switching speed.
 High performance trench technology for extremely low RDS(ON)(S)

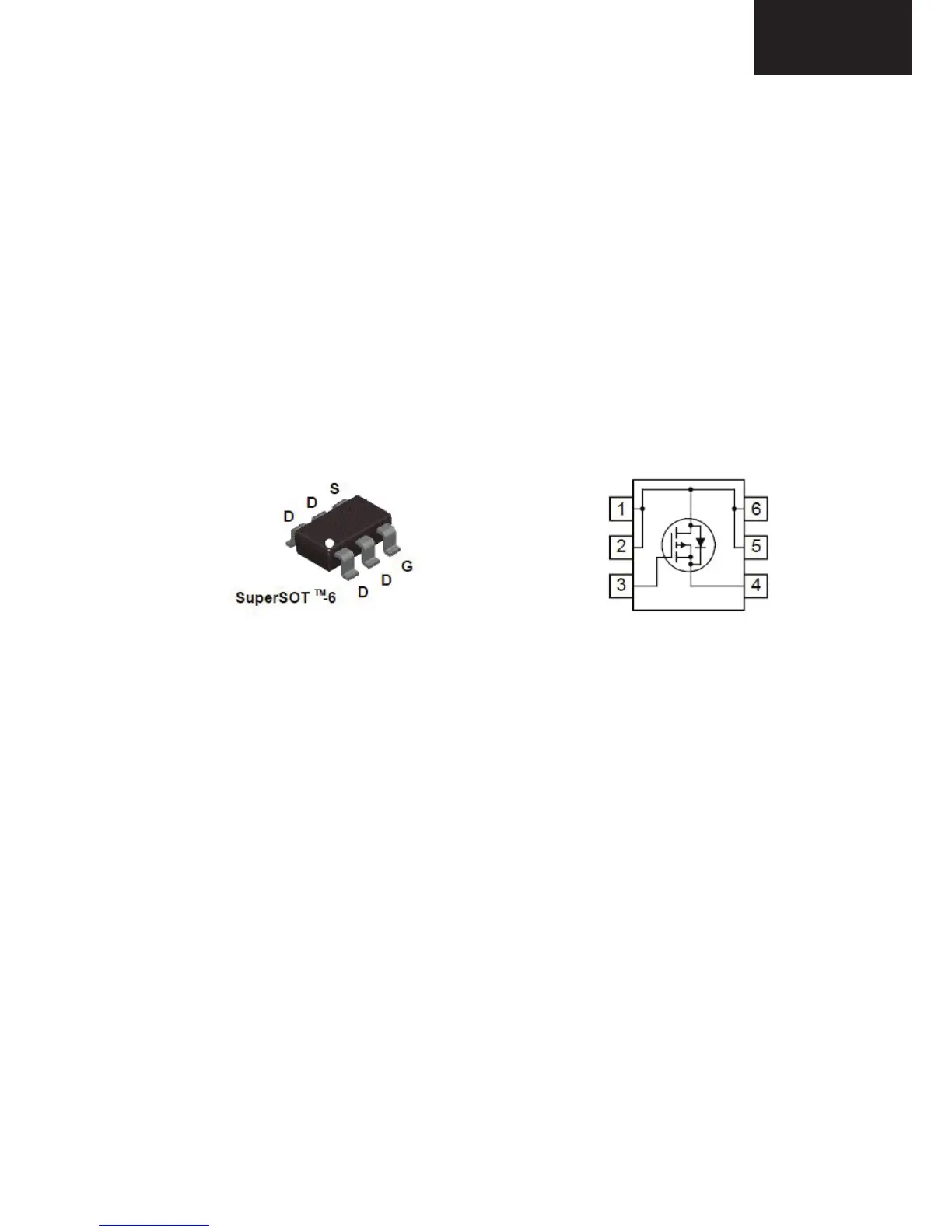

22.3. Pinning
