Sharp LC-26D44 - Page 41

Training course: D44
79
SEES Engineering Department
6. Electrical Diagrams (continued)

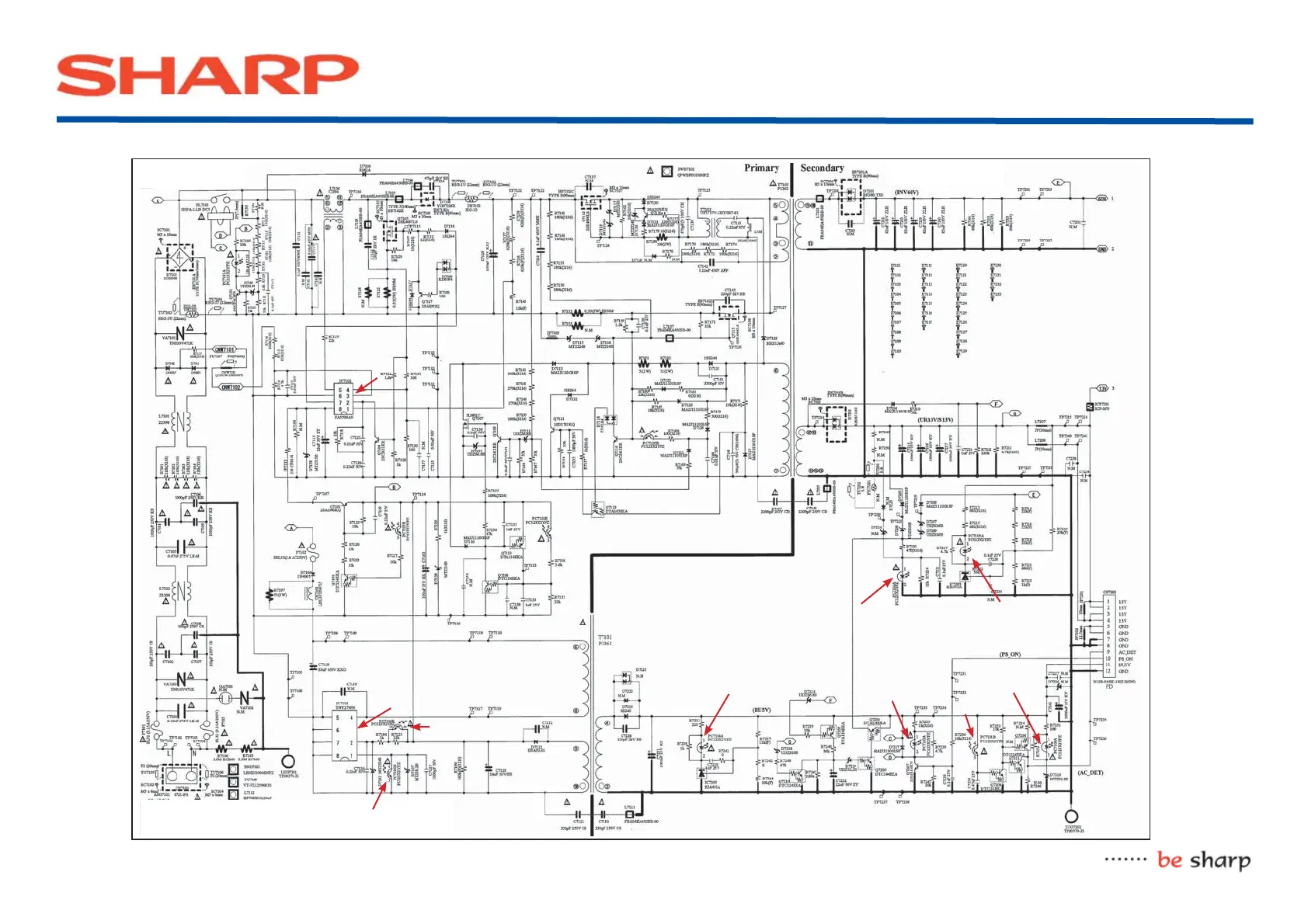

32” POWER SUPPLY Schematic Diagram
HALF BRIDGE 1
DRIVER
TRANSF.
HALF BRIDGE 2
FLYBACK
TRANSF.
CURRENT SENSOR
60/13V
REG
60/13V
OVERVOLT.
PFC
CONTROLLER
PS-ON
PFC INDUCTOR
AC.DET
STBY ON
STBY CONTROLLER
BU+5V REG
STBY ON/UNDERVOLTAGE
STBY ON/UNDERVOLTAGE
AC_DET
PS-ON
BU+5V
REG
60/13V
OVERVOLT.
60/13V
REG
