6. Electrical Diagrams (continued)

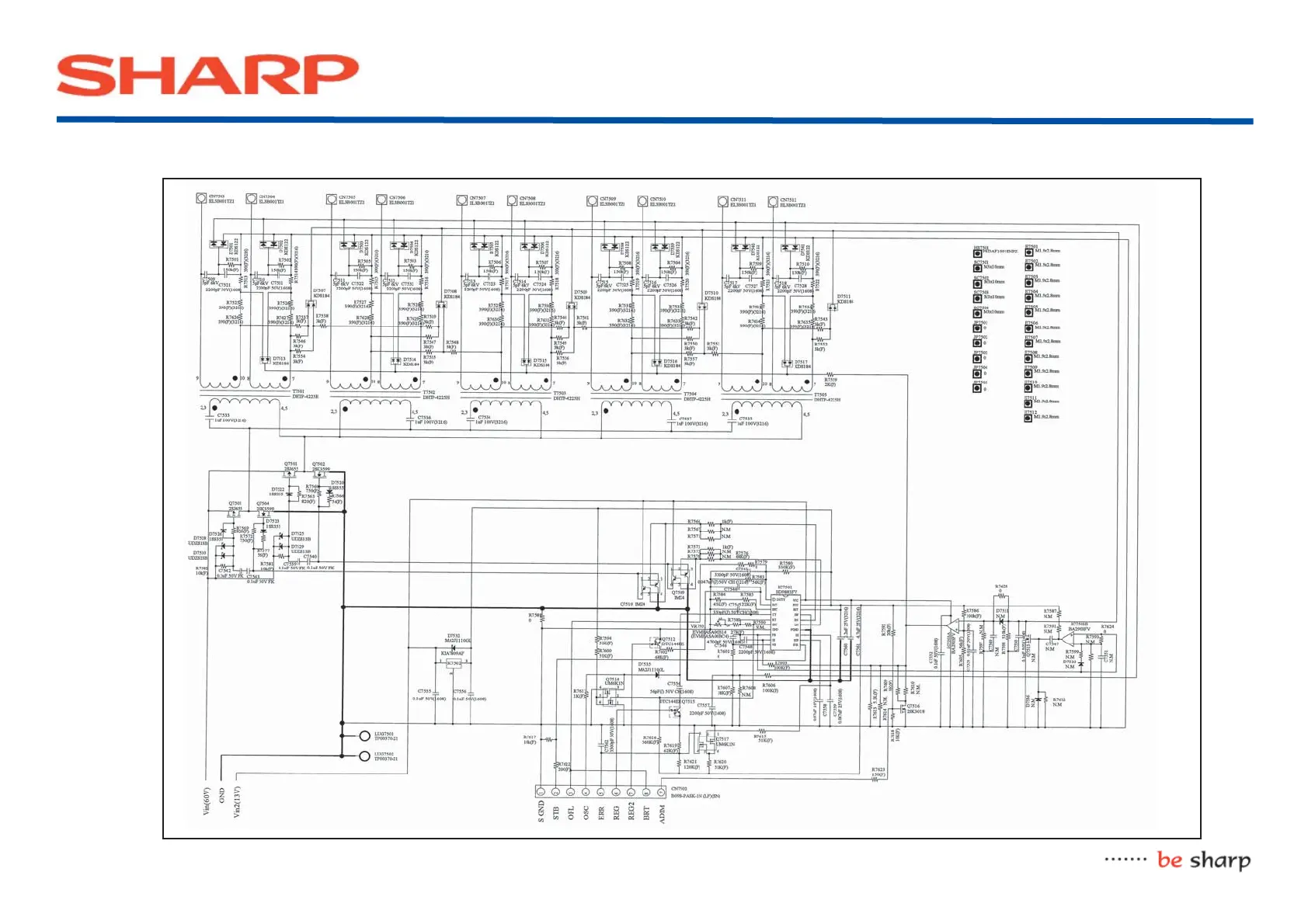

32” INVERTER Schematic Diagram
LOW VOLT. LAMP
LAMP OPEN
HIGH CURRENT LAMP
