Sharp LC-26DV200E - Page 6

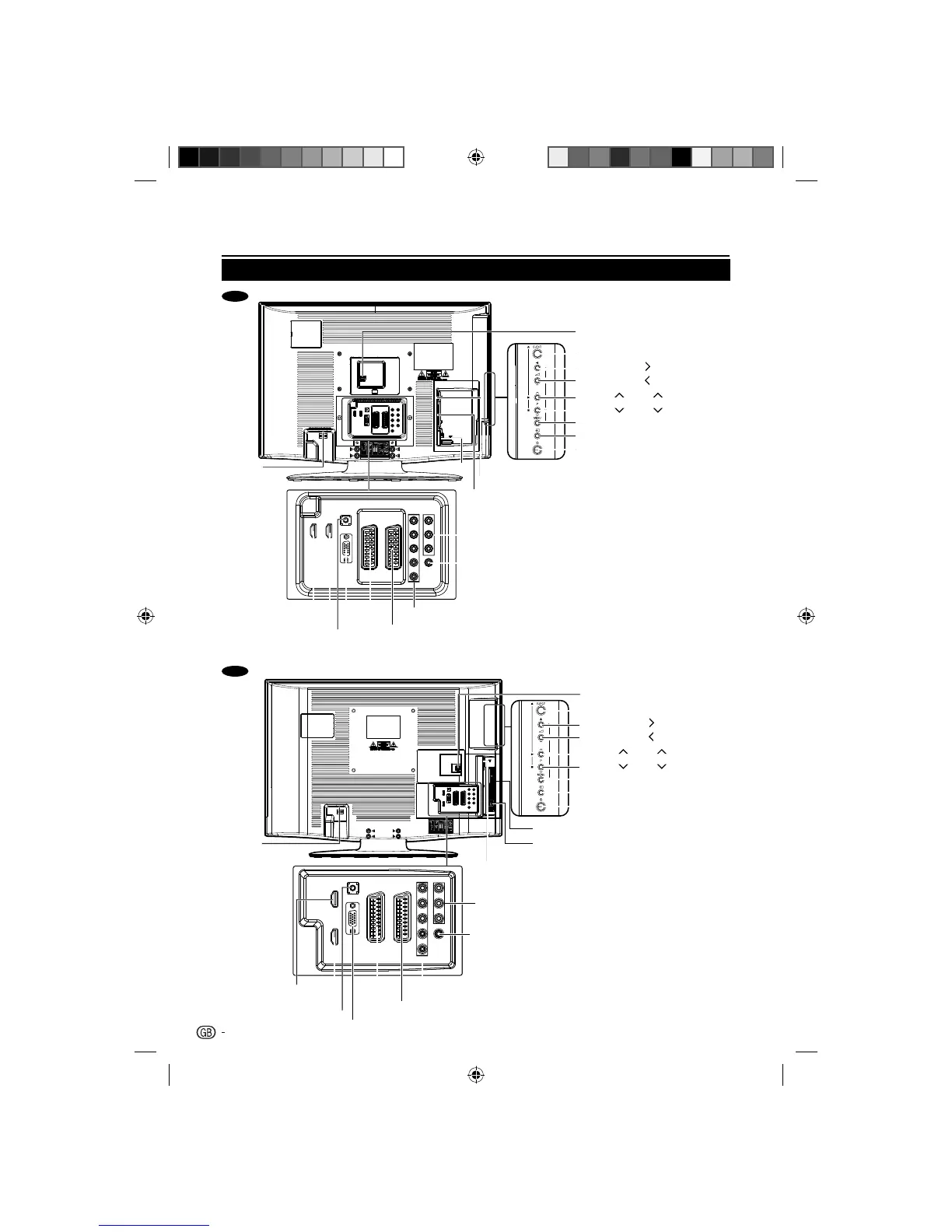

TV (Rear view)
HEADPHONE INPUT
COMMON INTERFACE
PC/DVI AUDIO INPUT
HDMI 1 (HDMI/DVI)
HDMI 2 (HDMI)
PC-INPUT
AV 1 (SCART) INPUT
AV 2 (SCART) INPUT
COMPONENT VIDEO and
L/R AUDIO INPUT
DIGITAL AUDIO COAXIAL OUTPUT
AV 3 (VIDEO and L/R AUDIO INPUT)
ANT. INPUT
AC INPUT
AC INPUT
HEADPHONE INPUT
COMMON INTERFACE
SERVICE socket
PC/DVI AUDIO INPUT
HDMI 2 (HDMI)
HDMI 1 (HDMI/DVI)
PC-INPUT
AV 1 (SCART) INPUT
AV 2 (SCART) INPUT
COMPONENT (VIDEO and
L/R AUDIO INPUT)
DIGITAL AUDIO COAXIAL OUTPUT
AV 3 (VIDEO and L/R AUDIO INPUT)
ANT. INPUT
Introduction
26”
32”
EJECT button
Volume +/Menu
button
Volume –/Menu
button
Channel
/Menu /PLAY button
Channel
/Menu /STOP button
MENU button
INPUT SOURCE / OK button
POWER button
EJECT button
Volume +/Menu
button
Volume –/Menu
button
Channel
/Menu /PLAY button
Channel
/Menu /STOP button
MENU button
INPUT SOURCE / OK button
POWER button
SERVICE socket
