Sharp LC-26S7E-BK User Manual

2008-03-14
LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
13
Fig.4

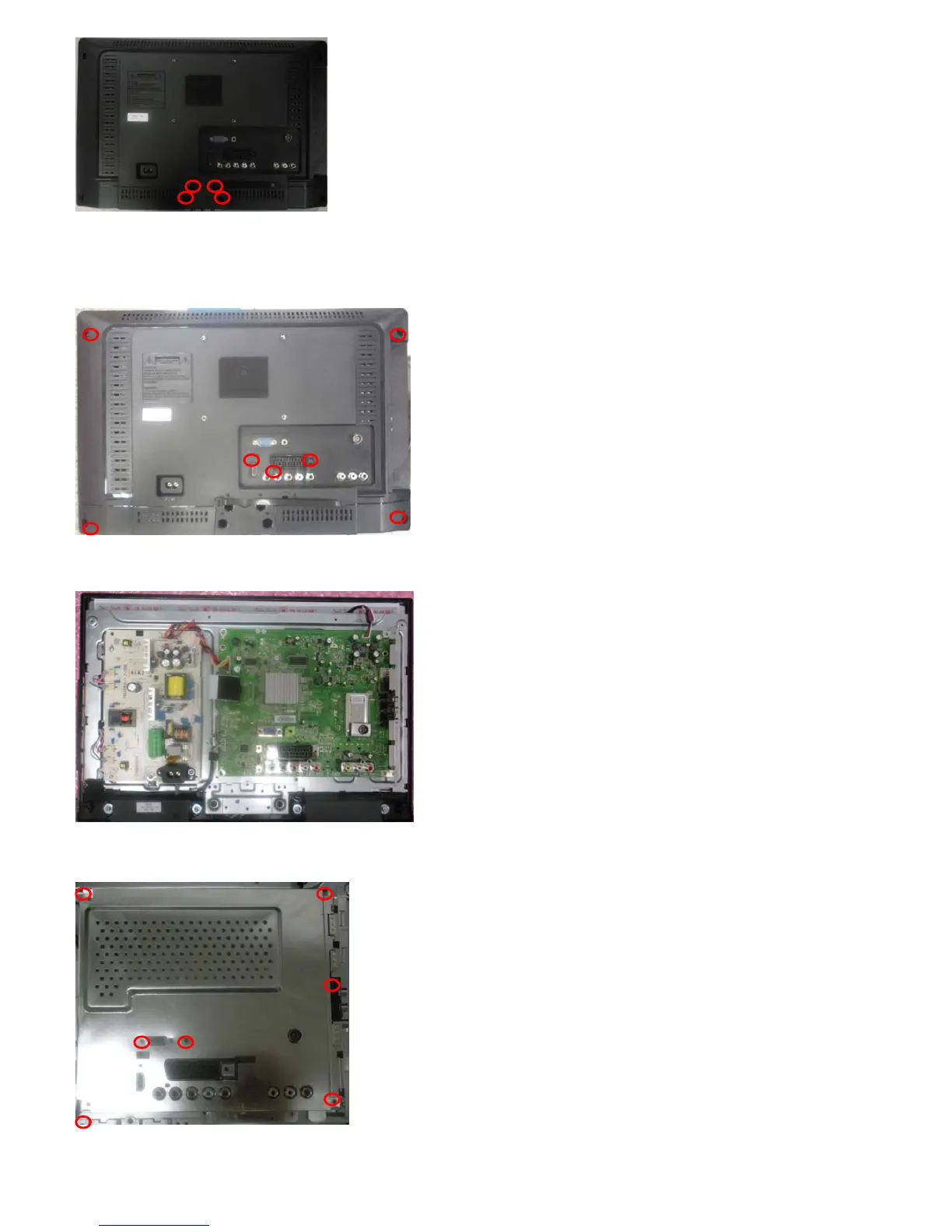

Step 2. Remove the REAR COVER Assy.
1. Remove the 11 screws. Detach the REAR COVER as Fig.5.
Fig.5
Step 3. Remove the Main, Power, IR, Key board,frame shielding and the Speakers.
Fig.6
1. Remove the 7 screws to move the frame shielding as Fig.7
Fig.7
2. Disconnect 5 cables to move the Scaler board as Fig.8.

Sharp LC-26S7E-BK Specifications

General

Game mode	No
Teletext function	Yes
Display diagonal	26 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Viewing angle, vertical	150 °
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
RS-232 ports	0
Headphone outputs	1
SCART ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	200 x 100 mm
Power consumption (sleep)	0.19 W
Power consumption (standby)	0.21 W
Power consumption (typical)	67.6 W
RMS rated power	10 W
Tuner type	Analog

Weight and Dimensions

Depth (with stand)	239.8 mm
Width (with stand)	657.8 mm
Height (with stand)	491.1 mm
Weight (with stand)	8400 g
Depth (without stand)	91.6 mm
Height (without stand)	448.4 mm
