Sharp LC-26S7E-BK

2008-03-14
LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
65

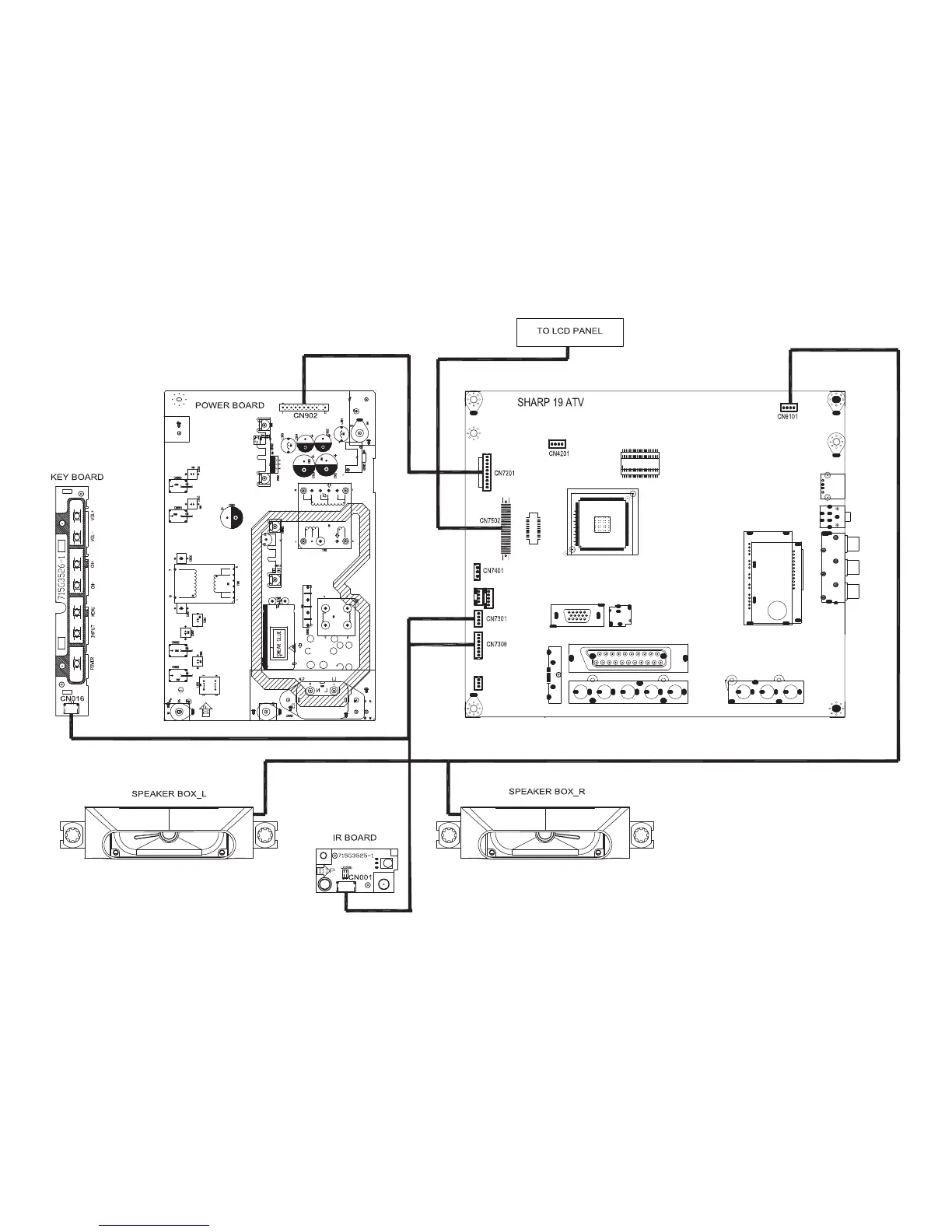

[3] WIRING DIAGRAM(19”)
089G179E30H904
9JR8900000008
FFC CABLE 30P 280mm P1.0 117201-30466
095G801411F906 9JR9500000045 HARNESS 7P+4P-4P+5P 270mm+160mm 75375
095G 82511F905
9JR9500000046
HARNESS 11P-10P 140mm 75361-HF
